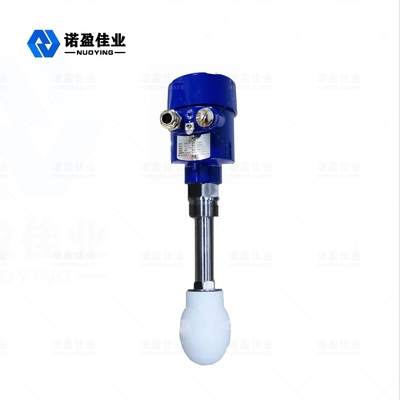

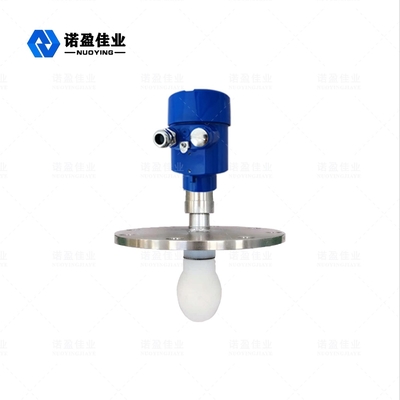

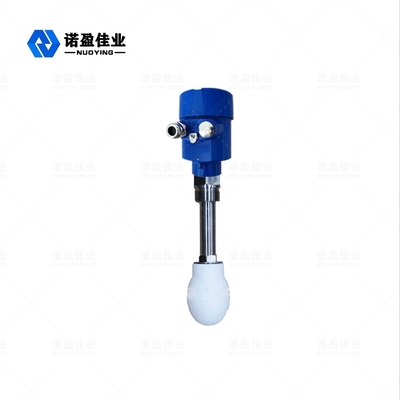

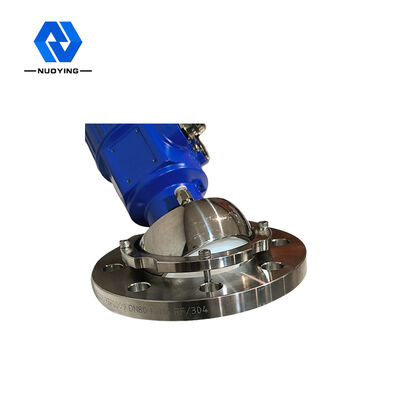

Water Drop Type Liquid Radar Level Transmitter 2.0MPa NYRD - SD

Water Drop Type Liquid Radar Level Transmitter 2.0MPa NYRD - SD
Water Drop Type Liquid Radar Level Transmitter 2.0MPa NYRD - SD Water Drop Type Liquid Radar Level Transmitter 2.0MPa NYRD - SD Water Drop Type Liquid Radar Level Transmitter 2.0MPa NYRD - SD

Large Image :  Water Drop Type Liquid Radar Level Transmitter 2.0MPa NYRD - SD

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYRD-SD
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Water Drop Type Liquid Radar Level Transmitter 2.0MPa NYRD - SD

Description
Typical Application: Easy Crystallization, Condensation, Strong Corrosive Liquid, Powder Antenna Materia: Water Drop Antenna, PTFE(optional)
Measuring Range: 40m Medium Temperature: -40~+260℃
Process Connection: Flange(optional) Process Pressure: -0.1~2.0MPa
Signal Output: 4...20mA/HART/RS485/Modbus... Electrical Interface: M20×1.5, 1/2 NPT
High Light:

Liquid Level Transmitter 2.0MPa

,

Water Drop Type Radar Level Sensor

,

Liquid Tank Radar Level Transmitter

Hot Sale Water Drop Type 26GHz NYRD-SD Radar Level Transmitter





26GHz NYRD-SD Radar Level Transmitter Working Principle



Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The antenna is further optimized, and the new fast microprocessor can carry out higher rate signal analysis and processing, making the instrument can be used in reaction kettle, solid bin and some complex measurement conditions. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).

The datum of measurement: Spiral bottom surface or sealing surface of flange.



26GHz NYRD-SD Radar Level Transmitter Design Feature



1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.

2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.

3.Severe dust environment has little impact on the operation of high frequency level meter.

4.Shorter wavelength, better reflection for inclined solid surfaces.

5.Small beam angle and concentrated energy.

6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.

7.High signal-to-noise ratio for better performance even under fluctuating conditions.

8.High frequency, the best choice for measuring solid and low dielectric constant media.



26GHz NYRD-SD Radar Level Transmitter Design Technical Parameters



Typical application Easy crystallization, condensation, strong corrosive liquid, powder
Antenna material Water drop antenna, PTFE(optional)
Measuring range 70m
Measuring accuracy 0.05%-0.1%F.S
Power supply 24VDC(Two lines, four lines)
Medium temperature -40~+260℃
Process connection flange(optional)
Process pressure -0.1~2.0MPa
Protection level IP67
Explosion-proof grade Exia II CT6
Signal output 4...20mA/HART/RS485/Modbus...
