Product Details:
|
Typical Application: | Liquid Without Stirring | Antenna Material: | 304(optional) |
---|---|---|---|
Measuring Range: | 35m | Medium Temperature: | -40~+130℃ |
Process Pressure: | -0.1~4.0MPa | Process Connection: | Flange (optional) |
Antenna Form: | Horn Type | ||
High Light: | Radar Liquid Level Transmitter,Horn Type Radar Liquid Level Sensor,6GHz Radar Type Level Transmitter |

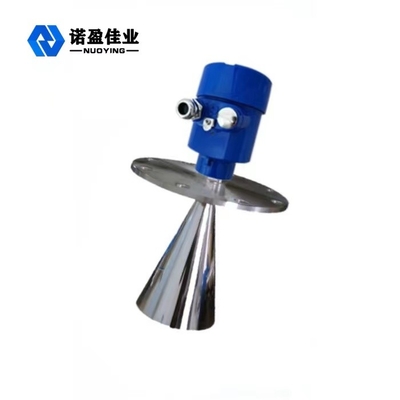

Hot Sale Horn Type Liquid 6GHz NYRD803 Radar Level Transmitter
6GHz NYRD803 Radar Level Transmitter Working Principle
Very short microwave pulses with very low energy are transmitted and received through the antenna system. Radar waves travel at the speed of light.The running time can be converted into level signal through electronic components. Even if there is false echo under complex working conditions, the echo of material level can be accurately analyzed with the latest microprocessor technology and debugging software.
Input:
The antenna receives the reflected micro pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro pulse on the material surface.
The distance D from the material surface is proportional to the pulse time travel T:
D=C×T/2(C is the speed of light)
Since the distance E of the empty tank is known, the material level L is:
L=E-D
Output:
It is set by inputting empty tank height E (= zero point), full tank height F (= full scale) and some application parameters. The application parameters will automatically adapt the instrument to the measurement environment, corresponding to 4-20mA output.
6GHz NYRD803 Radar Level Transmitter Design Feature
1.The intelligent radar level meter adopts advanced microwave processing technology and unique echo discovery echo processing technology. The product can be applied to various complex working conditions.
2.The "false echo learning" function enables the instrument to accurately identify the true echo under multiple false echo conditions, so as to obtain accurate measurement results.
3.Various process connection modes and types of detection components can be customized according to customer requirements.
4.With pulse working mode, the product has extremely low emission power and can be installed in various metal and non-metal containers, without harm to human body and the environment.
6GHz NYRD803 Radar Level Transmitter Technical Parameters
Typical application | Liquid without stirring |
Antenna material | 304(optional) |
Measuring range | 35m |
Power supply | 24VDC(Two lines, four lines) |
Medium temperature | -40~+130℃ |
Process pressure | -0.1~4.0MPa |
Process connection | Flange (optional) |
Measuring accuracy | 0.05%-0.1%F.S |
Protection level | IP67 |
Explosion-proof grade | Exia II CT6 |
Signal output | 4...20mA/HART/RS485/Modbus... |
6GHz NYRD803 Radar Level Transmitter Application Field
1.Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2.Oilfield: Crude oil storage tanks, refined oil storage tanks, three-phase separators, settling tanks, sewage tanks,etc.
3.Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
4.Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
5.Water Resources: Canals, reservoirs, farmland irrigation, etc.
6.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
7.Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
8.Paper: Raw material silo, storage tower, drying drum, etc.
9.Other: Quarry, environmental protection and other industries.
