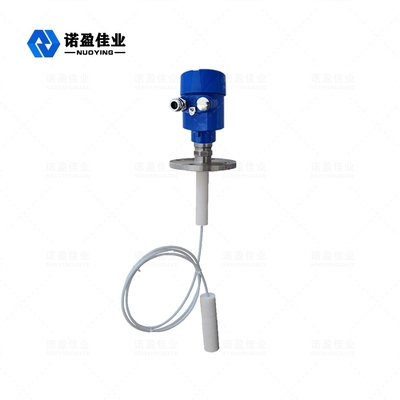

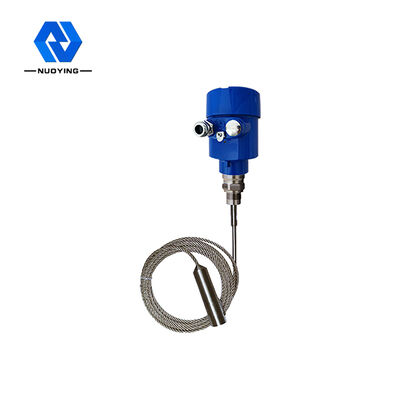

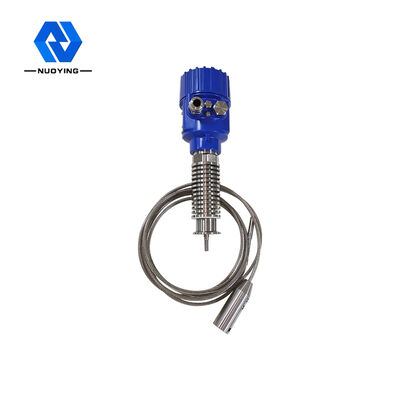

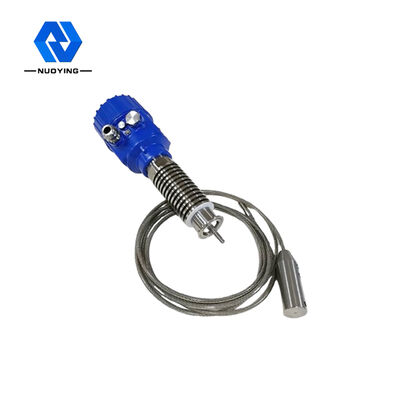

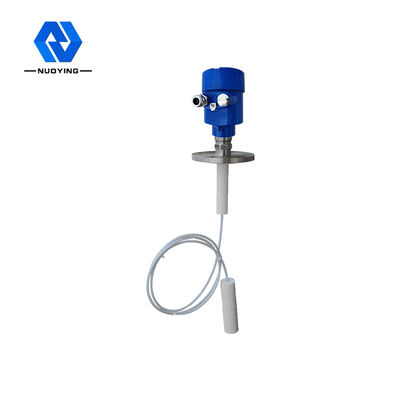

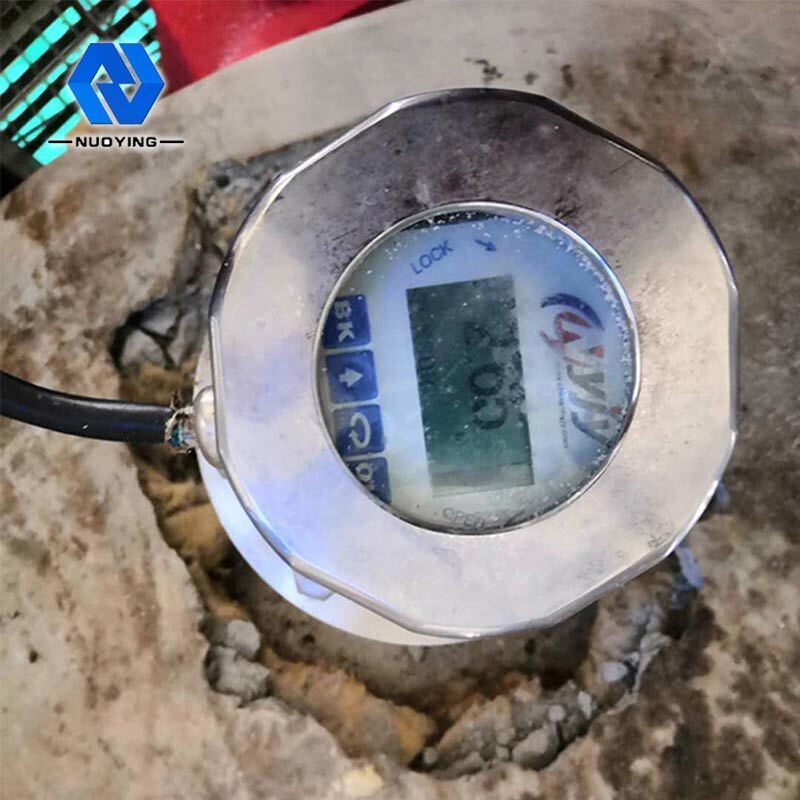

Hot Sale 30m Contact NYRD701 Guided Radar Level Transmitter
NYRD701 Guided Radar Level Transmitter Working Principle
The high-frequency microwave pulse sent by the guided wave radar propagates along the detection component (steel cable or steel rod). When encountering the measured medium, it causes reflection due to sudden change of dielectric constant, and part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance from the measured medium.
Input:
Guided wave radar is a measuring instrument based on the principle of time travel. The radar wave runs at the speed of light, and the running time can be converted into material level signal through electronic components. The probe sends out high-frequency pulse and propagates along the cable or rod probe. When the pulse meets the material surface, it is reflected back and received by the receiver in the instrument, and the distance signal is converted into material level signal.
The reflected signal is transmitted to the electronic circuit of the instrument along the cable or rod probe. The microprocessor processes the signal and identifies the echo generated by the microwave pulse on the material surface. The correct echo signal recognition is completed by pulse software.
The distance D from the material surface is proportional to the pulse time travel T:
D=C×T/2 (C is the speed of light).
Since the distance E of the empty tank is known, the material level L is:
L=E-D
Output:
It is set by inputting empty tank height E (= zero point), full tank height F (= full scale) and some application parameters. The application parameters will automatically adapt the instrument to the measurement environment, corresponding to 4-20mA output.
NYRD701 Guided Radar Level Transmitter Design Feature
1.The intelligent radar level meter adopts advanced microwave processing technology and unique echo discovery echo processing technology. Contact measurement, high measurement accuracy, more accurate measurement. At the same time, the guided wave radar is resistant to adhesion and is not affected by external temperature such as medium temperature and adhesion.
2.A variety of process connection modes and types of detection components make 70X series guided wave radar level meters suitable for various complex working conditions and applications. Such as high temperature, high pressure and low dielectric constant media.
3.With pulse working mode, the product has extremely low emission power and can be installed in various metal and non-metal containers, without harm to human body and the environment.
NYRD701 Guided Radar Level Transmitter Technical Parameters
Typical application | Liquid, dust, solid particles |
Antenna material | Flexible cable,PTFE, 304(optional) |
Measuring range | 30m |
Measuring accuracy | 0.05%-0.1%F.S |
Power supply | 24VDC(Two lines, four lines) |
Medium temperature | -40~+130℃,-40~+250℃ |
Process pressure | -0.1~4.0MPa |
Process connection | Thread, flange (optional) |
Protection level | IP67 |
Explosion-proof grade | Exia II CT6 |
Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.
NYRD701 Guided Radar Level Transmitter Application Field
1.Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2.Oilfield: Crude oil storage tanks, refined oil storage tanks, three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
3.Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
4.Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
5.Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
6.Foodstuffs: Juice factory, milk factory, raw sugar storage tank, tomato paste storage tank, brewery storage tank, etc.
7.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
8.Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
9.Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
10.Other: Quarry, coal mine, environmental protection, shipbuilding and other industries.
