Product Details:
|
| Product Model: | NYDR-3051 | Antenna Material: | PTFE, 304, 316 |
|---|---|---|---|
| Measuring Range: | 6m，20m | Power Supply: | 24VDC |
| Circuit Temperature Resistance: | - 40 ~ + 80 ℃ | Process Pressure: | - 0.1 ~ 1.6MPa |
| Process Connection: | Thread, Flange (optional) | Time Delay: | Continuous Adjustable 0 ~ 30 S |
| High Light: | RF Capacitance Liquid Level Meter,Radio Frequency Capacitance Level Sensor,RF Admittance Type Level Sensor 24VDC |
||
Radio Frequency Capacitance Liquid Level Meter 24VDC Safe Precision
Radio Frequency Capacitance Liquid Level Meter Discription
The working principle of the radio frequency capacitance level meter is based on radio frequency (RF) capacitance technology. A radio frequency is applied to the probe, and through continuous analysis, the influence of the surrounding environment is determined. Since all materials have a dielectric constant and their conductivity is different from that of air, when the probe is in contact with the material, the total impedance reflected by the small capacitance shift changes.
Radio Frequency Capacitance Liquid Level Meter Technical Parameter
| Typical application | Liquid, corrosive liquid, etc. |
| Product model | NYDR-3051 |

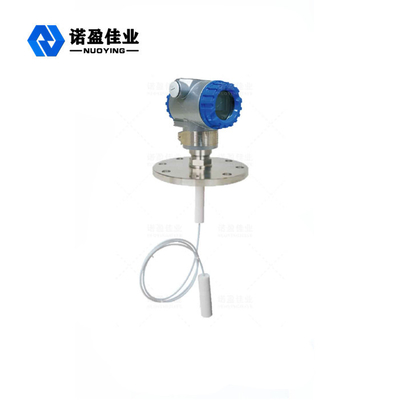

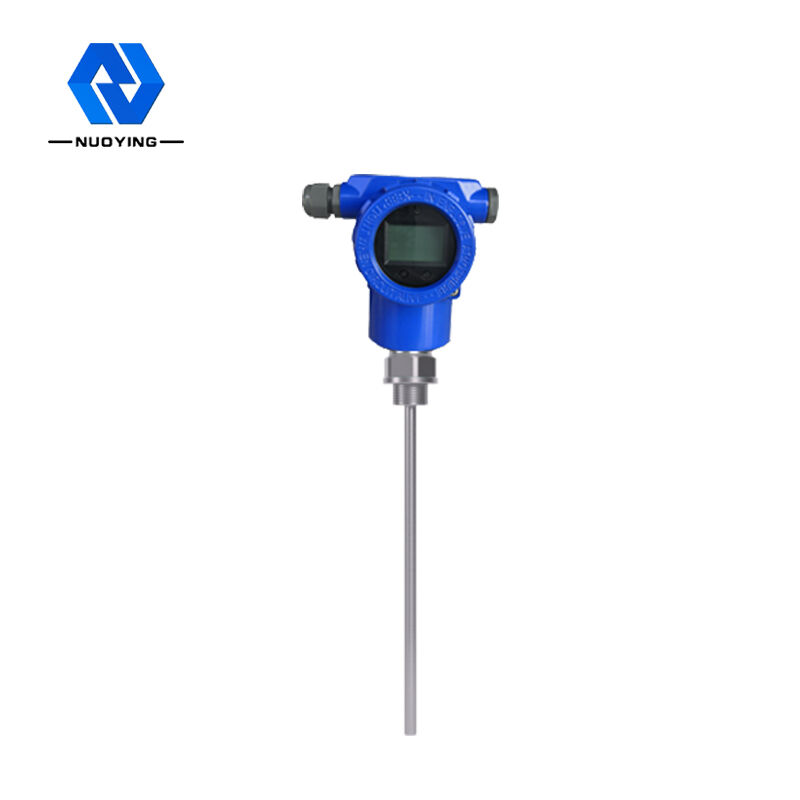

| Antenna form | Line type, rod type |
| Antenna material | PTFE, 304, 316 |
| Measuring range | 6m,20m |
| Power supply | 24VDC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | - 40 ~ + 130 ℃, - 184 ~ + 260 ℃ |
| Circuit temperature resistance | - 40 ~ + 80 ℃ |
| Process pressure | - 0.1 ~ 1.6MPa |
| Process connection | Thread, flange (optional) |
| Time delay | Continuous adjustable 0 ~ 30 s |
| Power loss protection | High and low mode, adjustable on site |
| Electrical Interface | M20×1. 5, ½ "NPT |
| Protection class | IP 65, IP 67, IP 68 |
| Explosion-proof grade | ExiaIICT6Ga,ExdIICT6Gb (see the certificate for details) |
