Product Details:
|
| Typical Application: | Liquid Flow Measurement | Straight Pipe: | Front 5DN, Rear 3DN |
|---|---|---|---|
| Medium Temperature: | -20℃~/+130℃ | Ambient Temperature: | -20℃~/+60℃ |
| Environment Humidity: | 5~100%RH (relative Humidity) | Power Supply: | AC220V 50Hz /DC24V/3.6V |
| Connection Method: | Thread，flange (optional) | Electrode Material: | 316L Stainless Steel |
| High Light: | Upper Alarm Electromagnetic Flowmeter,Insertion Magnetic Water Flow Meter AC220V,Empty Alarm Electromagnetic Water Meter |
||

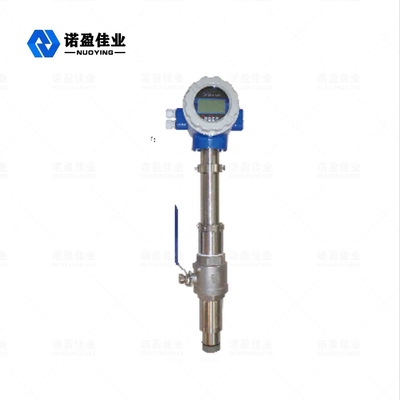

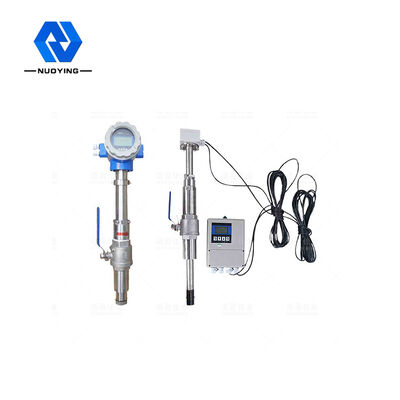

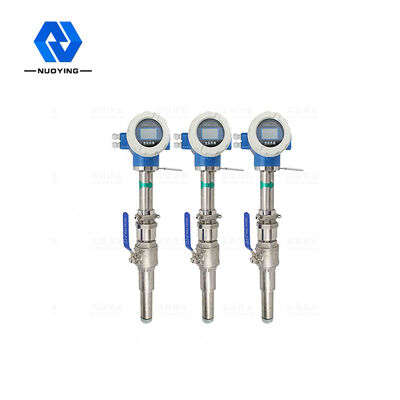

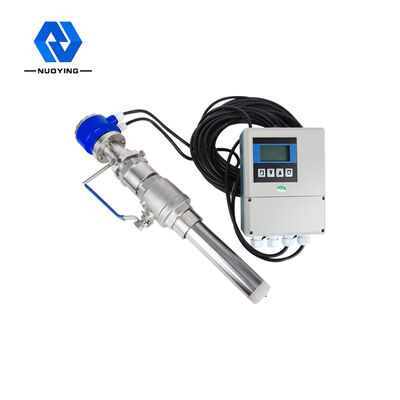

Upper Alarm Empty Alarm Insertion Electromagnetic Flow Meter
Insertion Electromagnetic Flow Meter Discription
NYLD-CR insertion electromagnetic flow meter is a new type of flow meter developed on the basis of pipeline electromagnetic flow meter. On the basis of retaining the advantages of pipeline electromagnetic flow meter, it is installed on pipeline for pipeline electromagnetic flow meter. Difficulty, high cost and other defects, according to the principle of NIKURADS, the volume flow of the fluid is obtained by measuring the average flow rate of the fluid by electromagnetic method. Especially after adopting the technology of press-opening and press-installation, the plug-in electromagnetic flow meter can be installed without stopping the water, and it can also be installed on cast iron pipes and cement pipes. The successful development of the plug-in electromagnetic flow meter provides a new method for the detection of fluid flow.
Insertion Electromagnetic Flow Meter Design Feature
◎In the pipeline flow detection, the installation is simple, the flow can be continuous, and the holes can be opened under pressure on site, which has absolute installation advantages and price advantages.
◎It is suitable for flow detection of liquids with conductivity above 20µs/cm, such as water, sewage, acid, strong alkali, etc. The change of conductivity does not affect the performance change. Strongly adapt to complex changes in fluid, especially suitable for flow measurement of water supply and drainage pipelines
◎The mechanical movable parts of the flow meter, the converter adopts an optimized design, the structure is compact, and it is easy to install. The converter and the sensor are interchangeable, and the detection range of the flow measurement can be freely changed (0.5m/s~10m/s).
◎It is only related to the insertion depth, so it has wide versatility and strong interchangeability. One model can be applied to the fluid measurement requirements of various sizes of pipelines. Range automatic switching function. When the flow meter changes in the flow range, the range can be automatically switched to ensure accurate measurement within the full range.
| Typical application | Liquid flow measurement |
| Measuring range | Custom design |
| Pipe diameter | 300-3000mm |
| Velocity range | 0.1~10m/s |
| Accuracy | 0. 5 ~ 10 m / s: ±1.5% FS;0.1 ~ 0.5 m / s; ±2.0% FS |
| Conductivity | >50µs/cm |
| straight pipe | Front 5DN, Rear 3DN |
| Medium temperature | -20℃~/+130℃ |
| Ambient temperature | -20℃~/+60℃ |
| Environment humidity | 5~100%RH (relative humidity) |
