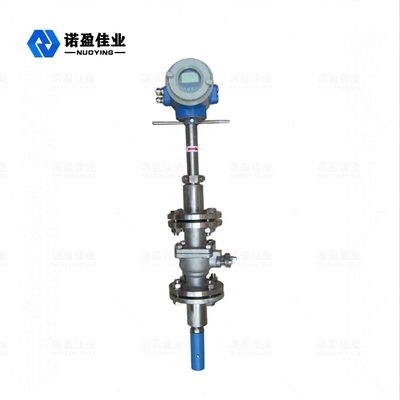

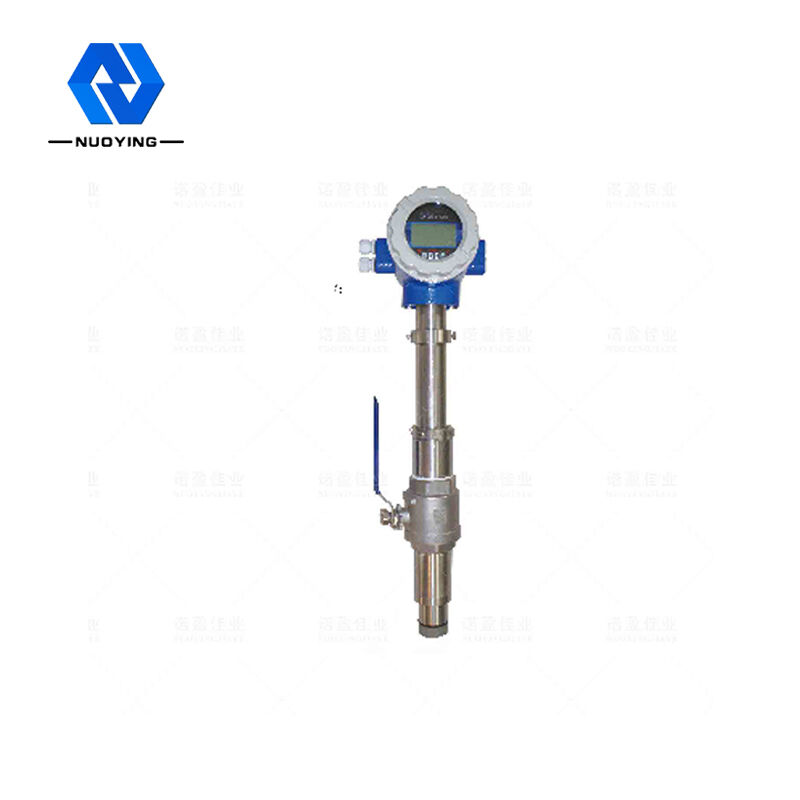

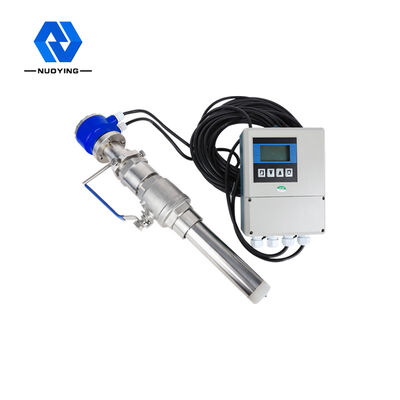

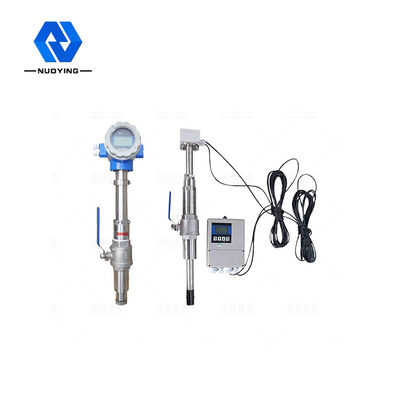

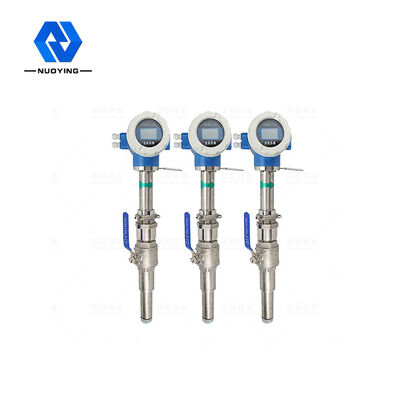

Insertion Electromagnetic Flow Meter Water Acid Alkali Alarm

Insertion Electromagnetic Flow Meter Water Acid Alkali Alarm
Insertion Electromagnetic Flow Meter Water Acid Alkali Alarm

Large Image :  Insertion Electromagnetic Flow Meter Water Acid Alkali Alarm

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYLD-CR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Please Contact Me
Packaging Details: Carton, 60cm×50cm×50cm
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Insertion Electromagnetic Flow Meter Water Acid Alkali Alarm

Description
Straight Pipe: Front 5DN, Rear 3DN Typical Application: Liquid Flow Measurement
Velocity Range: 0.1~10m/s Pipe Diameter: 300-3000mm
Power Supply: AC220V 50Hz /DC24V/3.6V Environment Humidity: 5~100%RH (relative Humidity)
Explosion-proof Grade: ExiaIICT6Ga, ExdIICT6Gb (see The Certificate For Details) Working Principle: 220VAC, 15% Tolerance Or 24VDC, Ripple ≤5%
High Light:

Water Acid Alkali Electromagnetic Flow Meter

,

Insertion Electromagnetic Flow Meter

,

Alarm Electromagnetic Water Meter

Alarm Water Acid Alkali Insertion Electromagnetic Flow Meter





Insertion Electromagnetic Flow Meter Discription



NYLD-CR insertion electromagnetic flow meter is a new type of flow meter developed on the basis of pipeline electromagnetic flow meter. On the basis of retaining the advantages of pipeline electromagnetic flow meter, it is installed on pipeline for pipeline electromagnetic flow meter. Difficulty, high cost and other defects, according to the principle of NIKURADS, the volume flow of the fluid is obtained by measuring the average flow rate of the fluid by electromagnetic method. Especially after adopting the technology of press-opening and press-installation, the plug-in electromagnetic flow meter can be installed without stopping the water, and it can also be installed on cast iron pipes and cement pipes. The successful development of the plug-in electromagnetic flow meter provides a new method for the detection of fluid flow.



Insertion Electromagnetic Flow Meter Design Feature



◎It is only related to the insertion depth, so it has wide versatility and strong interchangeability. One model can be applied to the fluid measurement requirements of various sizes of pipelines. Range automatic switching function. When the flow meter changes in the flow range, the range can be automatically switched to ensure accurate measurement within the full range.

◎Forward and reverse flow calculation function. Users can choose forward metering or reverse metering (the factory is forward metering).

◎Upper and lower limit alarm, empty pipe alarm

◎Power-off protection, parameters will not be lost after power-off, EEPROM can save set parameters and accumulated values.

◎Small signal cut function. The user can set the lower limit voltage or lower limit flow through the display panel, so as to cut off the small interference signal.

◎The instrument uses the principle of "auto-zero" to eliminate the electrochemical interference signal, and the zero point is self-stabilizing.

◎Converters and sensors have a variety of protection levels and installation methods, with IP68 suitable for submersible installations.



Insertion Electromagnetic Flow Meter Technical Parameter



Power supply AC220V 50Hz /DC24V/3.6V
Power consumption 6.5W
Signal output 4…20 m A; RS485;HART协议;MODBUS协议
Connection method Thread,flange (optional)
Pressure rating ≤1.6MPa
Power loss protection The instrument is designed with a non-power-off clock inside, which can store 16 power-off times
Damping time constant Continuous variable can be selected from 0~100s (90%) time binning
Electrode material 316L Stainless steel
Sensor material Stainless steel
Working principle 220VAC, 15% tolerance or 24VDC, ripple ≤5%
Protection grade IP65,IP67,IP68 (optional)
Explosion-proof grade ExiaIICT5Ga, ExdIICT5Gb (see certificate for details)
