Electromagnetic Flowmeter Manufacturer | Custom Industrial Magnetic Flow Meter

Name: Electromagnetic Flowmeter Manufacturer | Custom Industrial Magnetic Flow Meter
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYLD
Price: 954.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NYLD
MOQ:	1 pcs
Price:	Please Contact Me
Payment Terms:	T/T
Supply Ability:	1000 pcs/ pre month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi,China

Certification:

Grade:

Industrial

Warranty:

12 Months

Customized Support:

OEM, ODM

Brand Name:

NUOYING

Media Temperature:

-20 ~+90

Power Supply:

220VAC/ 24VDC

Repeatability Error:

±0.1% Of The Measured Value

Protection Grade:

Ip65, It Can Be Customized Up To IP68

Explosion-proof Grade:

ExdllCT6

Output Signal:

4-20mA (load Resistance 0~750), Pulse/frequency, Control Level

Conductivity Range:

The Conductivity Ofthe Measured Fluid Is ≥5μs/cm

Flow Rate Range:

0.1-10m/s

Packaging Details:

Carton, 40cm×30cm×30cm

Supply Ability:

1000 pcs/ pre month

Highlight:

Alarm Electromagnetic Flow Meter

Turbine Electromagnetic Type Flow Meter

Control Electromagnetic Water Meter RS485

Product Description

strong anti-interference IP68 Intelligent Electromagnetic Flow Meter 0.1-10m/S 4-20mA

NYLD Electromagnetic Flow Meter

Products Description

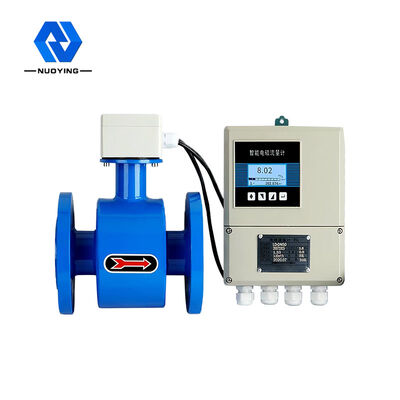

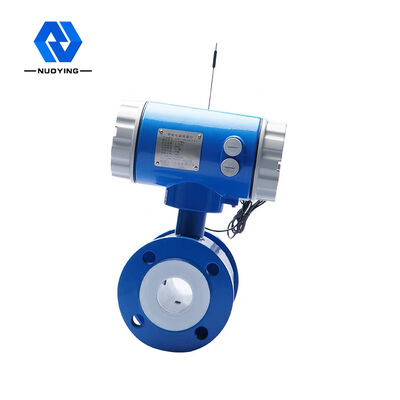

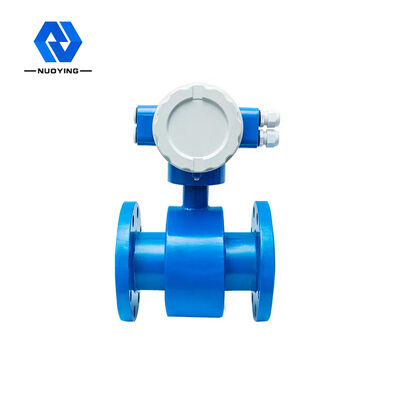

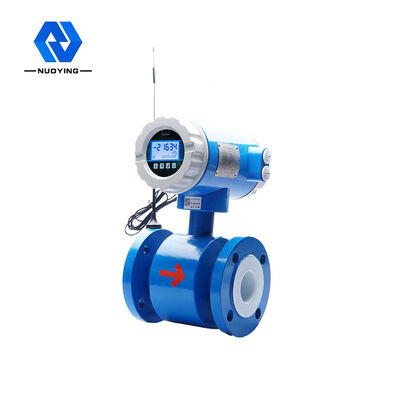

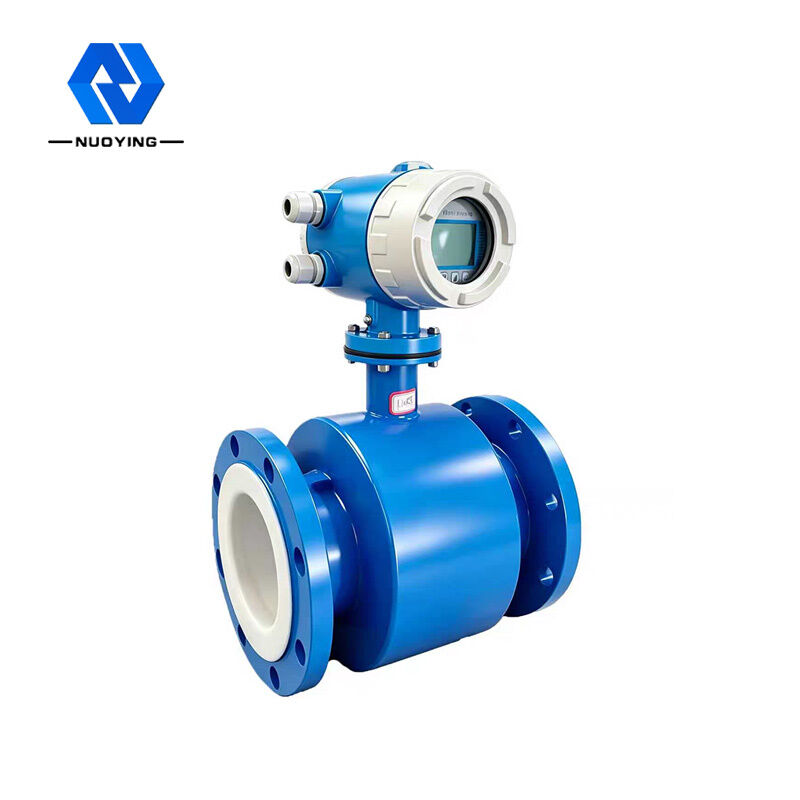

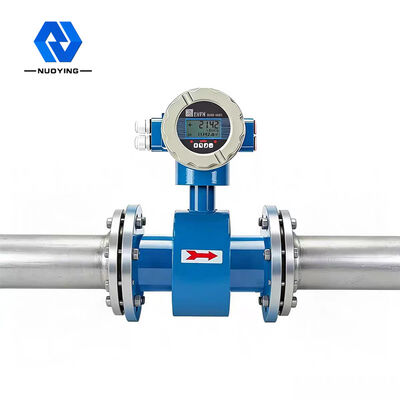

NYLD Intelligent Eletromagnetic Flowmeter

The NYLD intelligent type electromagnetic flowmeter consists of a sensor and a converter. It is based on Faraday's law of
electromagnetic induction, which is used to measure the volume flow of conductive liquid with conductivity greater than 5μs/cm. It is an inductive meter for measuring the volume flow of conductive medium. In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquids such as strong acid and alkali and uniform liquid-solid two-phase suspension liquid such as slurry, pulp and paper pulp. It is wdely used for flow measurement of petroleum, chemical, metallurgy, textile, papermaking, environmental protection, food and other industrial sectors and municipal management, water conservancy construction, rivers and other fields.

Product Parameters

Electromagnetic Flowmeter Manufacturer | Custom Industrial Magnetic Flow Meter 0

Signal output	4-20mA (load resistance 0~750Ώ), pulse/frequency, control level
Conductivity range	The conductivity ofthe measured fluid is ≥5μs/cm
Communication output	Rs485 communication MODBUS protocol, HART communication interface
Output signal	4-20mA (load resistance 0~750Ώ), pulse/frequency, control level
Protection grade	Ip65, it can be customized up to IP68
Ambient Temperature	－25～＋60℃
Explosion-proof grade	ExdllСT6
