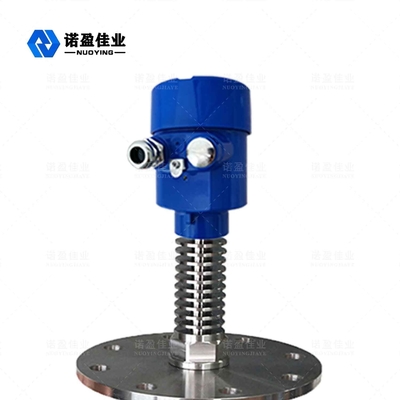

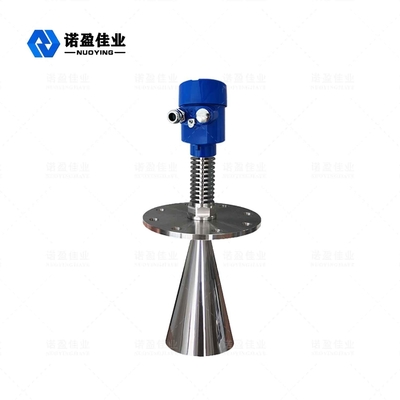

6GHz NYRD803S Radar Level Transmitter 35m Liquid Accuracy Measurement

6GHz NYRD803S Radar Level Transmitter 35m Liquid Accuracy Measurement

Brand Name: NUOYINGJIAYUE
Model Number: NYRD803S
MOQ: 1 pcs
Price: $450 to $1700 /pcs
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month
Detail Information
Place of Origin:
Xi'an, Shaanxi,China
Certification:
CE
Typical Application:
Liquid, High Process Temperature Liquid
Measuring Range:
35m
Medium Temperature:
-40~+300℃
Electrical Interface:
M20×1.5, 1/2 NPT
Power Supply:
24VDC(Two Lines, Four Lines)
Process Connection:
Flange (optional)
Process Pressure:
-0.1~4.0MPa
Packaging Details:
Carton, 60cm×30cm×30cm
Supply Ability:
1000 pcs/ pre month
Highlight:

Liquid Measurement Radar Level Transmitter

,

35m Radar Tank Level Sensor

,

GWR Level Transmitter 6GHz

Product Description

Accuracy Measurement 35m Liquid NYRD803S 6GHz Radar Level Transmitter





NYRD803S 6GHz Radar Level Transmitter Working Principle



Radar waves travel at the speed of light. The running time can be converted into a level signal by electronic components. A special time extension method ensures stable and accurate measurements within a short period of time.

Even in case of spurious echoes under complex operating conditions, the level echoes can be accurately analyzed with the latest microprocessor technology and debugging software.

Input:

The antenna receives the reflected micropulses and transmits them to the electronic circuit. The microprocessor processes this signal and identifies the echoes produced by the micropulses on the surface of the material. The correct echo signal identification is done by the pulse software, and the accuracy can reach the millimeter level.

The distance D from the material surface is proportional to the pulse time travel T:

D=C×T/2 (C is the speed of light)

Since the distance E of the empty tank is known, the level L is :

L=E-D

output:

Set by entering empty tank height E (= zero point), full tank height F (= full scale) and some application parameters. Application parameters will automatically adapt the instrument to the measurement environment, corresponding to a 4-20mA output.



NYRD803S 6GHz Radar Level Transmitter Technical Parameters



Typical application Liquid, high process temperature liquid
Antenna material 304(optional)
Measuring range 35m
Power supply 24VDC(Two lines, four lines)
Medium temperature -40~+300℃
Process pressure -0.1~4.0MPa
Process connection Flange (optional)
Measuring accuracy 0.05%-0.1%F.S
Protection level IP67
Explosion-proof grade Exia II CT6
Signal output 4...20mA/HART/RS485/Modbus...



NYRD803S 6GHz Radar Level Transmitter Design Feature



1.It adopts advanced microwave processing technology and unique echo discovery echo processing technology. This product can be applied to various complex working conditions.

2.Its "false echo learning" function enables the instrument to accurately identify true echoes under a variety of false echo conditions, resulting in accurate measurement results.

3.Various process connection modes and detection element types can be customized according to customer requirements.

4.Using the pulse working mode, the product has extremely low emission power and can be installed in various metal and non-metal containers without harm to human body and environment.



Note: According to the specific requirements of users can be customized design products.
