Product Details:
|
| Transmit Frequency: | 26GHz | Accuracy: | 3mm |
|---|---|---|---|
| Range: | 30m | Antenna Material: | 304, 316L (optional) |
| Echo Sampling: | 100 Times/s | Process Temperature: | -40~130℃,-40~250℃ |
| Supply Power: | 24VDC, 220VAC (optional) | Explosion-proof Grade: | ExiaⅡCT6(optional) |
| High Light: | Explosion Proof Grade Radar Level Meter,24VDC Radar Liquid Level Sensor,Universal Flange Radar Type Level Transmitter |
||

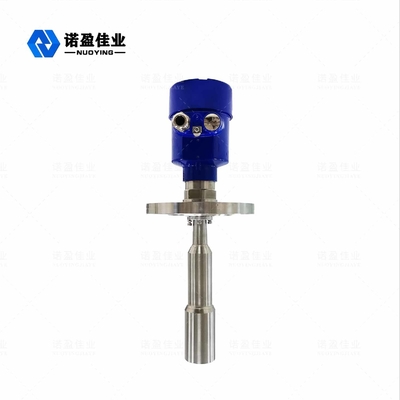

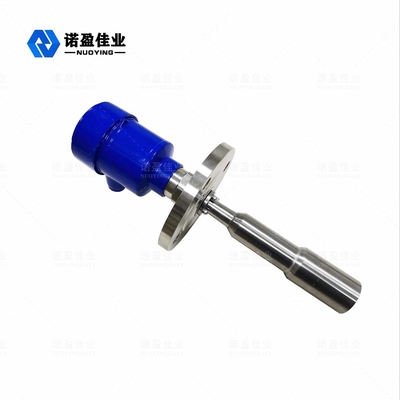

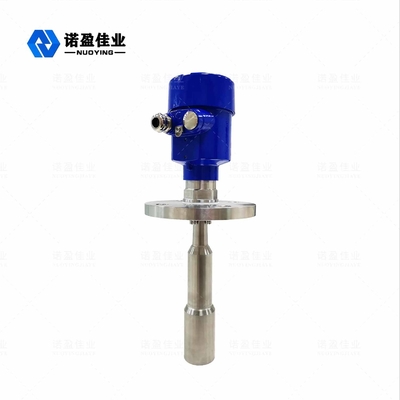

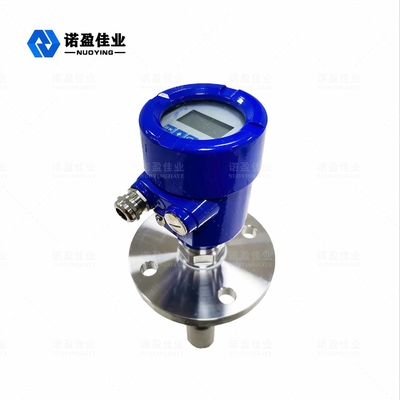

High Signal To Noise Ratio 26GHz NYRD806 Radar Level Transmitter Explosion Proof Grade
26GHz NYRD806 Radar Level Transmitter Working Principle
The radar level antenna emits narrow microwave pulses, the narrow microwave pulses are transmitted downward through the antenna. After the pulse touches the measured medium surface, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (Because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous).
26GHz NYRD806 Radar Level Transmitter Technical Parameter
| Typical application | Temperature, pressure, and slightly corrosive liquid etc |
| Transmit frequency | 26GHz |
| Accuracy | 3mm |
| Range | 30m |
| Antenna material | 304, 316L (optional) |
| Echo sampling | 100 times/s |
| Process temperature | -40~130℃,-40~250℃ |
| Ambient humidity | 0~90% |
| Resolution | 1mm |
| Process connection | Universal flange |
| Electrical Interface | M20×1. 5, ½ " NPT |
| Signal output | 4...20mA/HART |
| Supply power | 24VDC, 220VAC (optional) |
| Power | 3W |
| Explosion-proof grade | ExiaⅡCT6(optional) |
| Protection class | IP67 |
※ Note: Products can be customized according to the specific requirements of users!
