Product Details:
|
| Typical Application: | Conductive Liquid, Interface, Split Mountable | Probe Type: | Insulated Flexible Cable PTFE (optional) |
|---|---|---|---|
| Power Supply: | 24VDC | Measuring Accuracy: | 0.05%~0.1%FS |
| Medium Temperature: | -40~+150℃ | Process Pressure: | -0.1~4.0MPa |
| Process Connection: | 3/4" BSPT Thread (standard) Flange Mount (optional) | ||
| High Light: | RF Admittance Type Liquid Level Switch,Conductive Liquid RF Admittance Level Transmitter,Anti Hanging Material RF Transmitter |
||

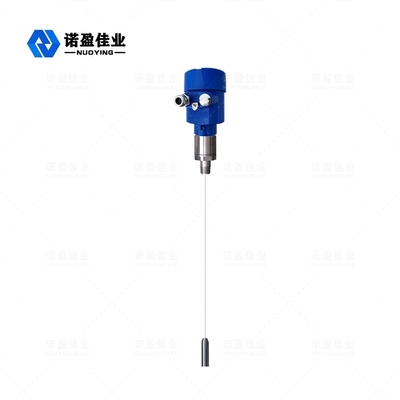

Anti-Hanging Material Conductive Liquid NYSP-Z19 RF Admittance Level Transmitter
NYSP-Z19 RF Admittance Level Transmitter Working Principle
RF Admittance level meter is a continuous level measurement product based on RF Admittance principle. The product has the advantages of high stability, high sensitivity and wide range of applications. Compared with the traditional capacitance level meter, it adopts modular design, which can realize the instrument setting concisely and conveniently, and once the setting is completed, it can be used normally and maintenance-free for life. It enables users to understand the operation of the equipment intuitively and deal with problems in a timely manner, and is just as safe and reliable in complex industrial settings.
NYSP-Z19 RF Admittance Level Transmitter Technical Parameters
| Typical application | Conductive liquid, interface, split mountable |

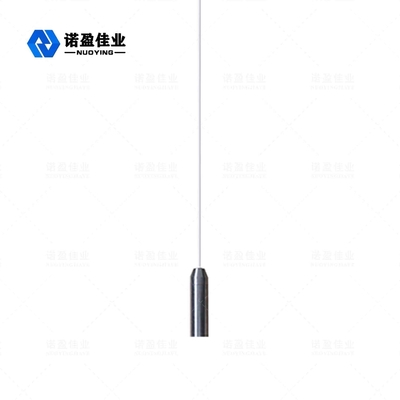

| Probe type | Insulated flexible cable PTFE (optional) |
| Power supply | 24VDC |
| Medium temperature | -40~+150℃ |
| Process pressure | -0.1~4.0MPa |
| Process connection | 3/4" BSPT thread (standard) flange mount (optional) |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT4 |
| Signal output | 4...20mA/HART/RS485/Modbus... |

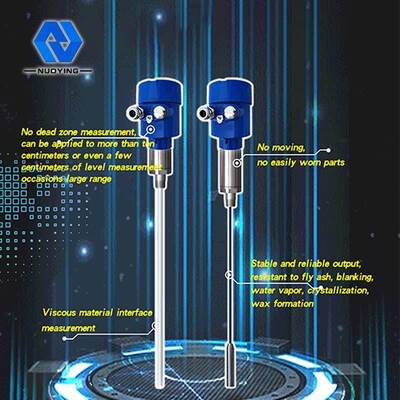

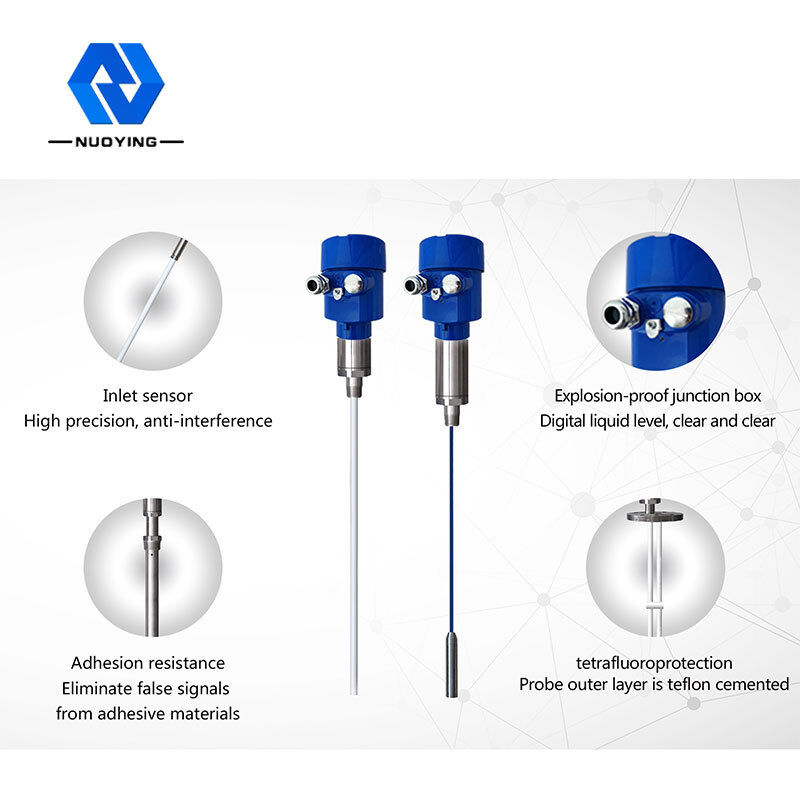

NYSP-Z19 RF Admittance Level Transmitter Design Feature
1. Anti-hanging material: Unique Driving-Shield circuit design improves anti-hanging material capability.
2. Power supply range: power supply operating range: 13 ~ 35VDC
3. Adaptability: probe process temperature: -100℃～800℃; no dead zone measurement, can be applied to a dozen centimeters or even a few centimeters of the level measurement occasions large range; the maximum measurement range of up to hundreds of meters, or even hundreds of meters; viscous material interface measurement is the great advantage of the instrument.
NYSP-Z19 RF Admittance Level Transmitter Application Field
1.Power plants: fuel silos, reservoirs, silo pumps, ash storage, oil tanks, etc.
2.Metallurgy: auxiliary material silos, electrolytic cell buffer tanks, etc.
3.Chemical: crude oil distillation towers, reaction tanks, ammonia tanks, separators, asphalt storage tanks, etc.
