Product Details:
|
| Transmit Frequency: | 26GHz | Range: | 40m,80m(optional) |
|---|---|---|---|
| Antenna Material: | 304 | Electrical Interface: | M20×1. 5, ½ " NPT |
| Supply Power: | 220VAC (optional) | Explosion-proof Grade: | ExdⅡCT6 Gb(optional) |
| Process Temperature: | -40℃~+130℃ | Signal Output: | 4...20mA/RS485/Modbus... |
| High Light: | Parabolic Antenna Radar Level Transmitter,Stainless Steel Radar Water Level Sensor,Non Contact Radar Level Switch 26GHz |
||

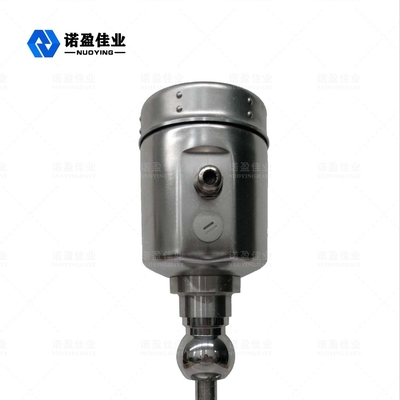

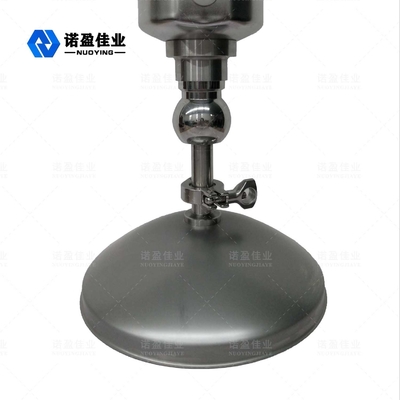

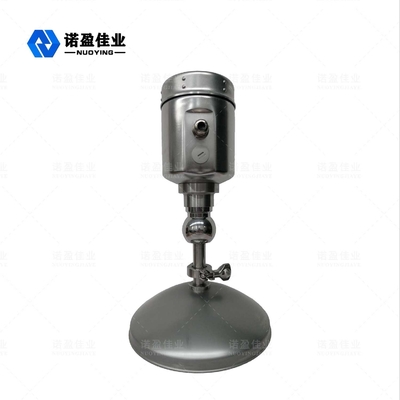

Non-Contact 26GHz NYRD810 Radar Level Transmitter Parabolic Antenna Stainless Steel
Non-Contact 26GHz NYRD810 Radar Level Transmitter Working Principle
The radar level antenna emits narrow microwave pulses, the microwave pulses are transmitted downward through the antenna. Then the pulse will touche the measured medium surface, it is reflected back and received by the antenna system again, (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous) and the signal is transmitted to the electronic circuit part and automatically converted into a level signal.
Non-Contact 26GHz NYRD810 Radar Level Transmitter Typical Applications
1. Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.)
2. All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.)
3. Various solids (grain, pebbles, iron ore, coal, etc.)
Non-Contact 26GHz NYRD810 Radar Level Transmitter Technical Parameter
| Typical application | Various liquids ,Monitoring Solids, dust, particles, etc |
| Transmit frequency | 26GHz |
| Accuracy | 3mm |
| Range | 40m,80m(optional) |
| Antenna material | 304 |
| Echo sampling | 100 times/s |
| Process temperature | -40℃~+130℃ |
| Ambient humidity | 0~90% |
| Resolution | 1mm |
| Process connection | Flange or bracket or thread installation |
| Electrical Interface | M20×1. 5, ½ " NPT |
| Signal output | 4...20mA/RS485/Modbus... |
| Supply power | 220VAC (optional) |
| Power | 3W |
| Explosion-proof grade | ExiaⅡCT6 Ga;ExdⅡCT6 Gb(optional) |
| Protection class | IP67 |
※ Note: Products can be customized according to the specific requirements of users!
