Product Details:
|
| Transmit Frequency: | 26GHz | Antenna Material: | PTFE (optional) |
|---|---|---|---|
| Process Temperature: | -40℃~+130℃,-40℃~+150℃ | Process Connection: | Flange,bracket (optional) |
| Electrical Interface: | M20×1. 5, ½ " NPT | Signal Output: | 4...20mA/RS485/Modbus... |
| Power: | 3W | Protection Class: | IP67 |
| High Light: | PTFE Flange Radar Tank Level Sensor,Water Drop Radar Level Meter,26GHz Radar Water Level Sensor |
||

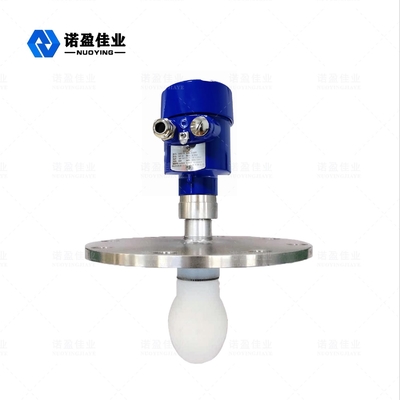

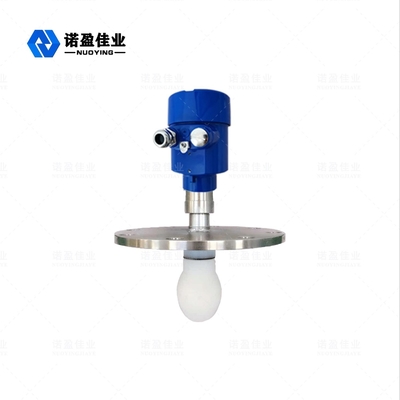

NYRD-SD Water Drop Radar Level Transmitter 26GHz PTFE Flange Process Connection
NYRD-SD Water Drop Radar Level Transmitter
The NYRD-SD radar level meter antenna using PFA material. The melting cohesiveness is enhanced and the viscosity of the solution is decreased, while the properties are unchanged compared with that of PTFE. The measurement blind area is smaller, and good results can be achieved for small tank measurement.The resin can be directly processed by ordinary thermoplastic molding. Suitable for making corrosion-resistant parts, wear resistant parts, sealing parts, insulating parts and medical instrument parts.
NYRD-SD Water Drop Radar Level Transmitter Technical Parameter
| Typical application | Steam, fog, foam, strong corrosion, crystallization and other occasions |
| Transmit frequency | 26GHz |
| Accuracy | 3mm |
| Range | 40m |
| Antenna material | PTFE (optional) |
| Echo sampling | 100 times/s |
| Process temperature | -40℃~+130℃,-40℃~+150℃ |
| Ambient humidity | 0~90% |
| Resolution | 1mm |
| Process connection | flange,bracket (optional) |
| Electrical Interface | M20×1. 5, ½ " NPT |
| Signal output | 4...20mA/RS485/Modbus... |
| Supply power | 24VDC; 220VAC (optional) |
| Power | 3W |
| Explosion-proof grade | ExiaⅡCT6 Ga (optional) |
| Protection class | IP67 |
※ Note: Products can be customized according to the specific requirements of users!
