Product Details:
|
| Antenna Material: | 316L(optional) | Measuring Range: | 35m |
|---|---|---|---|
| Measuring Accuracy: | 0.05%-0.1%F.S | Medium Temperature: | -40℃~+250℃ |
| Process Pressure: | -0.1~4.0MPa | Protection Level: | IP67 |
| Explosion-proof Grade: | Exia II CT6 | Signal Output: | 4...20mA/HART/RS485/Modbus... |
| High Light: | Universal Flange Radar Level Transmitter,6G Non Contacting Radar Level Transmitter,Solids Guided Radar Level Sensor |
||

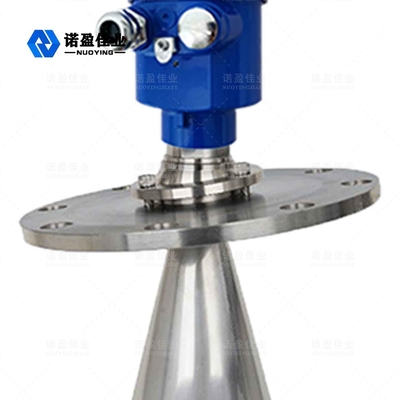

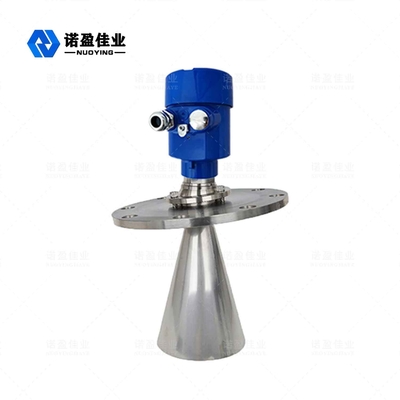

Universal Flange 6G NYRD804 Radar Level Transmitter Stable And Precise Measurements
Universal Flange 6G NYRD804 Radar Level Transmitter
How it works: Antenna size is small, easy to install.Very short microwave pulses with very low energy are transmitted and received through an antenna system. Radar waves travel at the speed of light. The operating time can be converted into a level signal by means of electronic components. Hardly affected by corrosion and foam;A special time extension method ensures stable and precise measurements in a very short period of time.Even if the working conditions are more complicated and there are false echoes, the echoes of the material level can be accurately analyzed with the latest micro processing technology and debugging software.
Universal Flange 6G NYRD804 Radar Level Transmitter Techincal Parameters
| Typical application | Solids, particles and strong dust. |
| Antenna material | 316L(optional) |
| Measuring range | 35m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines),220VAC |
| Medium temperature | -40℃~+250℃ |
| Process connection | bracket, flange(optional) |
| Process pressure | -0.1~4.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.
