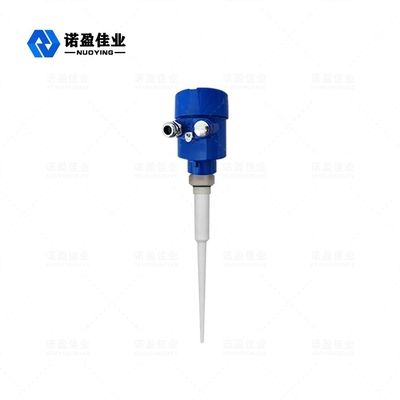

304 316 PTFE Intelligent Radar Level Meter For Liquid Dust Solid

304 316 PTFE Intelligent Radar Level Meter For Liquid Dust Solid
304 316 PTFE Intelligent Radar Level Meter For Liquid Dust Solid

Large Image :  304 316 PTFE Intelligent Radar Level Meter For Liquid Dust Solid

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYRD-801
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Please Contact Me
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

304 316 PTFE Intelligent Radar Level Meter For Liquid Dust Solid

Description
Product Model: NYRD-801 Echo Sampling: 55 Times /s
Measurement Range: 20m, 35 M Process Temperature: -40~ +130°C
Process Pressure: -0.1~0.3MPa, Antenna Form: Bar Type
Power Supply: 24VDC(two Wire, Four Wire) Protection Grade: IP 65,IP 67,IP 68 (optional)
High Light:

Dust Non Contact Radar Level Sensor

,

PTFE Non Contacting Radar Level Transmitter

,

316 Intelligent Radar Type Level Transmitter

Intelligent Radar Level Meter Simple Liquid Dust Solid 304 316 PTFE





Intelligent Radar Level Meter Working Principle



Very short microwave pulses with very low energy are transmitted and received through an antenna system. Radar waves travel at the speed of light. The operating time can be converted into a level signal by means of electronic components. A special time extension method ensures stable and precise measurements in a very short period of time.



Intelligent Radar Level Meter Design Feature



◎Intelligent radar object level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, the product can be applied to a variety of complex working conditions.

◎"False echo learning" function enables the instrument to accurately identify the real echo in multiple false echo conditions, so as to obtain accurate measurement results.



Intelligent Radar Level Meter Technical Parameter



Typical application Liquid dust with simple process (dielectric constant >1.8, guided wave tube type with stirring)
  Strong dust (can be equipped with purging or dust cover)
  Solid (small particles, pebbles, sand and other media)
Product model NYRD801
