Product Details:
|
| Process Temperature: | -40-250℃ | Process Presure: | -0.1~4.0MPa |
|---|---|---|---|
| Repeatability: | ± 3mm | Accuracy: | ＜ 0.1%F.S |
| Frequency Rate Limits: | 6.8GHz | Explosion-proof: | EXiaIICT6 Ga |
| Protection Grade: | IP67 | Power Supply: | 220VAC |
| High Light: | Stainless Steel Housing Radar Level Transmitter,Radar Liquid Level Sensor IP67,SS304 Radar Water Level Sensor |
||

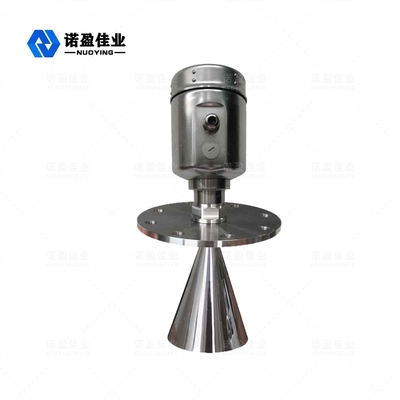

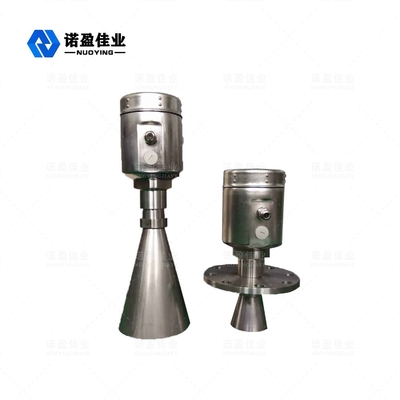

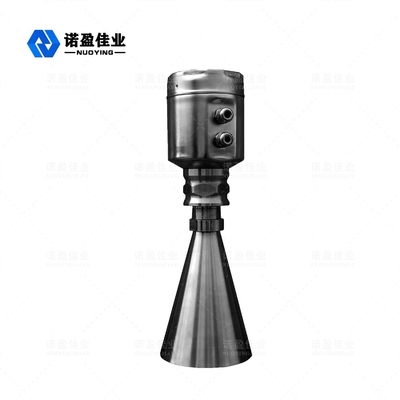

NYRD803 Stainless Steel Housing Radar Level Transmitter SS304 Radar Water Level Sensor
NYRD803 Stainless Steel Housing Radar Level Transmitter Operating Principle
Low emission energy pulses through very short microwave transmitting and receiving antenna systems.Use microwave pulse measurement method, it can be worked normally within the band of frequent industry . With the speed of light. Running time can be converted to the electronic components of level signals. A special time for a very short extension method ensures stable and accurate measurements.For the lower energy beam, can be installed on a variety of metals, non-metallic container or pipe, no harm to humans and the environment.Even if the condition more complex cases, there is a false echo, with the latest micro-processing technology and debugging software can accurately analyze the material level echo.
NYRD803 Stainless Steel Housing Radar Level Transmitter Technical Parameter
| Application |
Process conditions simple, liquid, slurry, solid |
| Measuring range | 35m |
| Material | 304(optional) |
| Fitting process | Flange,thread (optional) |
| Process temperature | -40-250℃ |
| Process presure | -0.1~4.0MPa |
| Repeatability | ± 3mm |
| Accuracy | ＜ 0.1%F.S |
| Frequency rate limits | 6.8GHz |
| Explosion-proof | EXiaIICT6 Ga |
| Protection grade | IP67 |
| Signal output | 4-20mA, 4-20mA/HART(Two wire/FOUR wire) |
| Power supply | 220VAC |
※ Note: Products can be customized according to the specific requirements of users!
