Product Details:
|
| Product Model: | NYRD803S | Process Connection: | Flange,(optional) |
|---|---|---|---|
| Antenna Form: | Horn Type | Measurement Range: | 35 M |
| Antenna Material: | 304.316 | Power Supply: | 220VAC |
| Process Temperature: | -40~ +250 °C | Process Pressure: | -0.1~2.0MPa |
| High Light: | Intelligent Radar Level Meter High Temperature,Solid Guided Radar Level Sensor,Dust Bracket Radar Level Sensor |
||

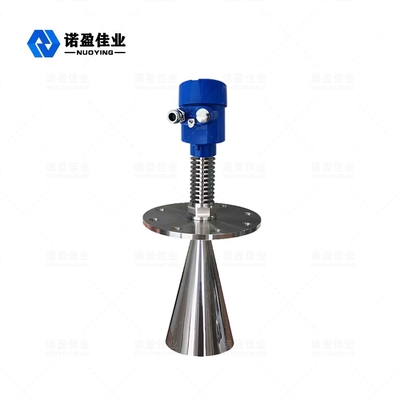

High Temperature Intelligent Radar Level Meter Solid Dust Bracket
Intelligent Radar Level Meter Working Principle
By entering empty tank height E(= zero), full tank height F(= full range) and some application parameters, the application parameters will automatically adapt the meter to the measuring environment, corresponding to 4-20mA output.
Intelligent Radar Level Meter Technical Parameter
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | -40~ +130°C,-40~ +250 °C |
| Process pressure | -0.1~0.3MPa, -0.1~2.0MPa,-0.1~4.0MPa |
| Process connection | Thread, bracket, flange,(optional) |
| Electrical interface | M20×1.5 , ½ " NPT |
| Protection grade | IP 65,IP 67,IP 68 (optional) |
| Explosion-proof grade | ExiaIICT6Ga, ExdIICT6Gb(see certificate for details) |
