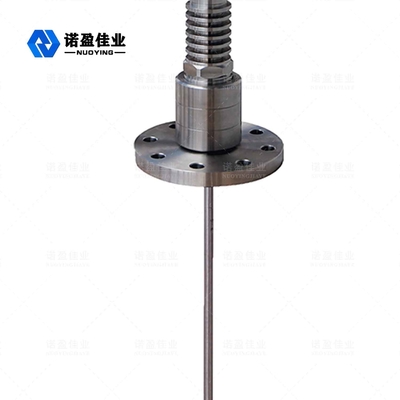

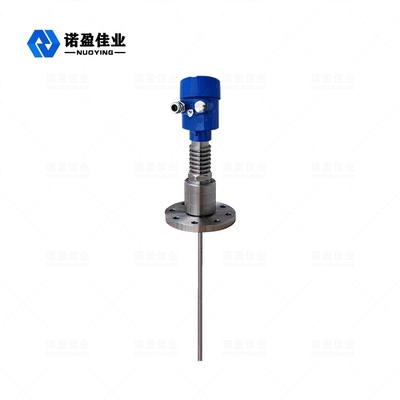

NYRD705 1.8GHz Guided Wave Radar Level Meter High Temperature Pressure Antenna

NYRD705 1.8GHz Guided Wave Radar Level Meter High Temperature Pressure Antenna
NYRD705 1.8GHz Guided Wave Radar Level Meter High Temperature Pressure Antenna NYRD705 1.8GHz Guided Wave Radar Level Meter High Temperature Pressure Antenna

Large Image :  NYRD705 1.8GHz Guided Wave Radar Level Meter High Temperature Pressure Antenna

Product Details:
Place of Origin: Xi'an,Shannxi,China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NYRD705
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $750~$950/pcs
Packaging Details: Carton, 40cm x 30cm x 30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

NYRD705 1.8GHz Guided Wave Radar Level Meter High Temperature Pressure Antenna

Description
Typical Application: Liquids, Powders, Solid Particles Antenna Material: 304/316(optional)
Measuring Range: 15m Power Supply: 24VDC(Two-wire,Four- Wire),220VAC
Medium Temperature: -40~+500℃ Pressure: -0.1~4.0MPa
Process Connection: Thread, Flange (optional) Protection Class: IP67,IP68 (optional)
High Light:

High Pressure Antenna Radar Level Meter

,

High Temperature Guided Radar Level Sensor

,

Radar Liquid Level Sensor 1.8GHz

NYRD705 1.8GHz Guided Wave Radar Level Meter High Temperature High Pressure Antenna





NYRD705 1.8GHz Guided Wave Radar Level Meter



Guided wave radar level gauge, a level measuring instrument in chemical industry. Guided wave radar level meter is a radar level meter based on the principle of time domain reflectometry (TDR). The guided wave radar level meter adopts advanced microwave processing technology and unique Echo Discovery echo processing technology, contact measurement, high measurement accuracy and more accurate measurement. At the same time, the guided wave radar is resistant to adhesion and is not affected by the external environment such as medium temperature and adhesion.The electromagnetic pulse of the radar level meter travels along the cable or probe rod at the speed of light. When it meets the surface of the measured medium, part of the pulse of the radar level meter is reflected to form an echo and returns to the pulse transmitter along the same path. The distance between the launcher and the surface of the measured medium is proportional to the propagation time of the pulse in the meantime, and the height of the liquid level is calculated.



NYRD705 1.8GHz Guided Wave Radar Level Meter Technical Parameter



Typical application Liquids, powders, solid particles
Antenna material 304/316(optional)
Measuring range 15m
Accuracy ±1mm
Power supply 24VDC(Two-wire,Four- wire),220VAC
Medium temperature -40~+500℃
Pressure -0.1~4.0MPa
Process connection Thread, Flange (optional)
Protection class IP67,IP68 (optional)
Explosion-proof grade ExiaⅡCT6 Ga
Signal output 4...20mA/HART/RS485/Modbus...



Note: Products can be customized according to the specific requirements of users!
