Product Details:
|
Typical Application: | Liquid | Filling Fluid: | Silicone Oil |
---|---|---|---|
Static Pressure: | 2.5MPa | Range Ratio: | 100:1 |
Power Supply: | 24VDC | Accuracy Grade: | 0.5grade, 0.2grade |
Signal Output: | Linear/square Root Output 4-20mA Dc + HART Signal | Diaphragm Material: | 316 Stainless Steel, Hastelloy C, Monel Alloy And Tantalum |
Highlight: | Smart Flange Type Liquid Level Transmitter,24VDC Liquid Level Transmitter,Liquid Capacitance Level Transmitter |

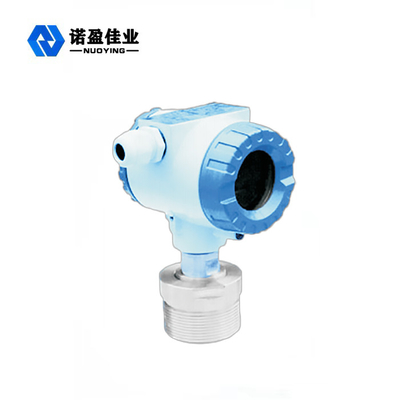

Easy Installation 24VDC NY-LT Flange Type Liquid Level Transmitter
NY-LT Flange Type Liquid Level Transmitter Working Principle
The pressure of the measured medium is transmitted to the central measuring diaphragm through the isolation diaphragm of 8 chambers (for LT and DP/GP remote transmitters with 1199, the measured pressure first passes through the primary isolation diaphragm and a fully sealed capillary system filled with silicone or fluorine oil before being transmitted to the isolation diaphragm of δ chamber) and the filling oil therein. Except for the AP type pressure transmitter, whose other side of the measuring diaphragm is the vacuum reference point, the other side of the measuring diaphragm of other varieties is either the atmospheric pressure or the low pressure side of the differential pressure being measured. The measuring diaphragm is a pre-tensioned elastic element whose displacement is proportional to the pressure of the measured medium, and the displacement is only 0.10mm, and the position of the measuring diaphragm is detected by the capacitor fixed pole plates on both sides of it. The position of the measuring diaphragm is detected by the capacitor fixed pole plates on both sides of it. The differential capacitance of the measuring diaphragm and the two capacitor fixed pole plates is linearly converted into a 4-20mADC 2-wire current signal by an amplifier circuit.
NY-LT Flange Type Liquid Level Transmitter Design Feature
1. Superb measurement performance for pressure, differential pressure, liquid level, and flow measurement.
2. Miniaturized (2.4kg) all stainless steel flange for easy installation
3. Process connection compatible with other products for optimal measurement.
4. The world's only sensor with H-alloy sheath (patented technology), achieving excellent cold and thermal stability.
5. Smart transmitter with 16-bit computer.
6. Supports upgrade to fieldbus and field control based technology.
NY-LT Flange Type Liquid Level Transmitter Technical Parameters
Typical application | liquid |
Signal output | Linear/square root output 4-20mA dc + HART signal |
Diaphragm material | 316 stainless steel, Hastelloy C, Monel alloy and tantalum |
Accuracy grade | 0.5grade, 0.2grade |
Power supply | 24VDC |
Filling fluid | Silicone oil |
Flange joint | 316 stainless steel, Hastelloy C, Monel alloy |
Air/Drain Valve | 316 stainless steel, Hastelloy C, Monel alloy |
Range Ratio | 100:1 |
Static pressure | 2.5MPa |
Protection level | IP65 |
Explosion-proof grade | Exd ll BT5; Exia ll CT5(optional) |
