Product Details:
|
| Typical Application: | Solid Dust Particles | Antenna Form: | Stick, Water Drop, Flat, Trumpet,thrown Surface, Lens |
|---|---|---|---|
| Power Supply: | 24VDC | Signal Output: | 4...20mA/HART/RS485/Modbus... |
| Measurement Accuracy: | 0.05% ~ 0.1%F.S | Procedure Linkage: | Screw Thread、bracket、flange、clamps（optional） |
| Process Temperature: | -40~+130℃,-40~+150℃,-40~+260℃,-40~+1200℃ | Process Connection: | Thread、flange (optional) |
| Protection Class: | IP65, IP67, IP68 | ||
| High Light: | Intelligent Radar Level Gauge,Gas Tank Radar Level Meter,26 G Radar Tank Level Sensor |
||
26 G Intelligent Radar Level Meter Non Contact Radar Used In Complex Measurement
Working Principle of 26 G Intelligent Radar Level Meter
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous)
Design Features of 26 G Intelligent Radar Level Meter
◎The antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
◎ almost immune to corrosion and foam; Not affected by medium density, temperature and pressure changes.
◎ Serious dust environment has little influence on the work of high frequency level meter.
◎ Shorter wavelength, better reflection on inclined solid surfaces.
◎ The beam Angle is small, the energy is concentrated, which enhances the echo ability and is conducive to avoid interference objects.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.
Technical Parameters of 26 G Intelligent Radar Level Meter
| Typical application | Various liquids (strong corrosion, low dielectric constant, mixing, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.) |
| Various dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.) | |
| Various solids (grain, pebbles, iron ore, coal blocks, etc.) | |
|
product model
|
NYRD805,NYRD806,NYRD807,NYRD808,NYRD809,NYRD810,NYRD86 |
| NYRD87,NYRD-PB,,NYRD-SD,NYRD-TJ,NYRD-SL | |
|

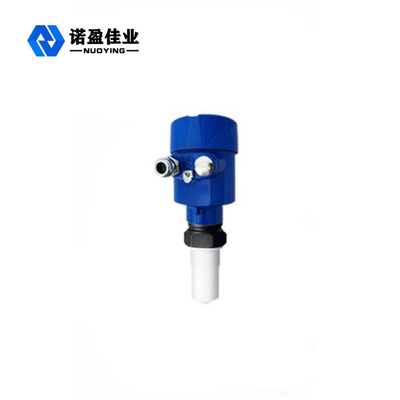

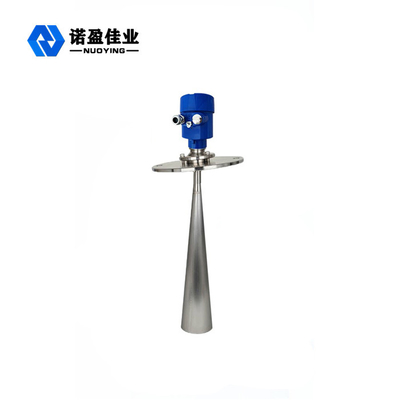

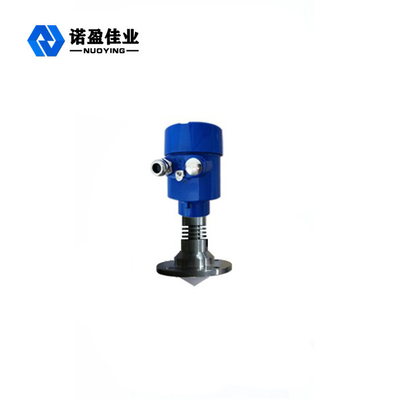

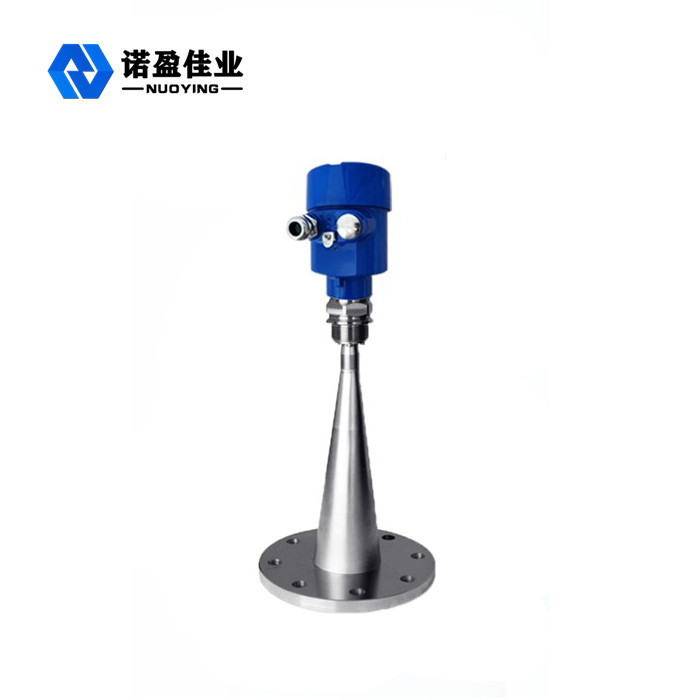

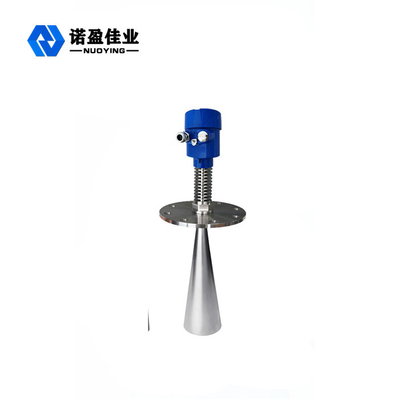

Antenna form |
Stick, water drop, flat, trumpet,thrown surface, lens |
| Antenna material | PTFE,304,316,PP,PFA |
| measuring range | 10m,20m,30m,35m,40m,80m |
| accuracy of measurement | 0.05%~0.1%F.S |
| Power Supply Voltage | 24VDC(two wire,four wire),220VAC |
|
signal output |
4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+150℃,-40~+260℃,-40~+1200℃ |
| Process pressure |
-0.1~0.3MPa,-0.1~2.0MPa,-0.1~4.0MPa, |
| procedure linkage | screw thread,bracket,flange,clamps(optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68(optional) |
| explosion-proof classification | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
