Product Details:
|
| Model: | NYRD702 | Repeatability: | ± 3mm |
|---|---|---|---|
| Resolution: | 1mm | Sampling: | Echo 55 Samples / S |
| Output Current Signal: | 4-20mA | Explosion Levels: | EXiaIICT6 Ga |
| Environmental Conditions: | -40 ℃ ~ +80 ℃ | Frequency: | 100MHZ-1.8GHZ |
| High Light: | Stainless Steel Radar Level Transmitter,Radar Level Transmitter Four Wire,20mA Radar Liquid Level Transmitter |
||

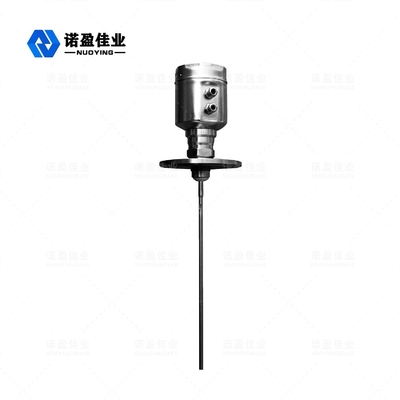

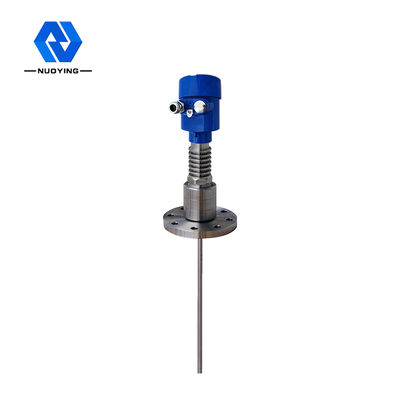

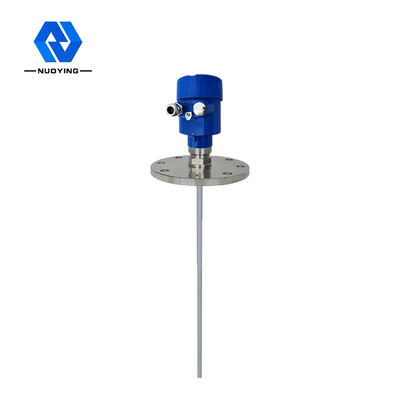

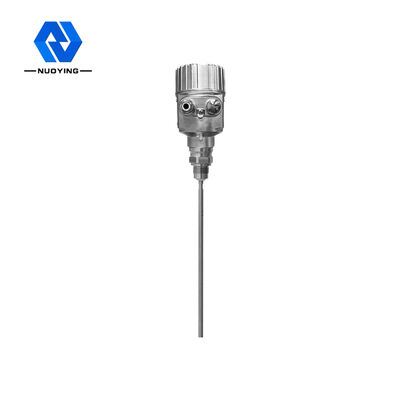

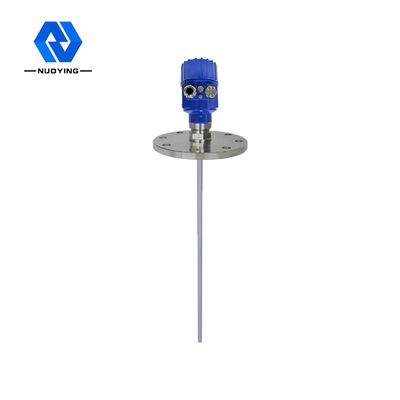

Stainless Steel NYRD702 Radar Level Transmitter 4-20mA/HART(Two Wire/Four Wire)
Stainless Steel NYRD702 Radar Level Transmitter

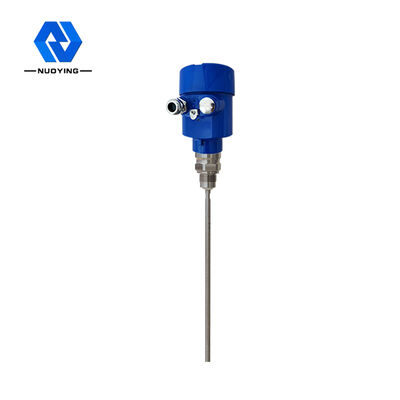

The guided wave radar level meter is a level meter based on the principle of time domain reflection (TDR).Stay away from exports and imports. The electromagnetic pulse of the radar level gauge propagates along the steel cable or probe at the speed of light. For metal and plastic cans, the meter shall not touch the inner wall of the tank. If metal tank, level gauge should not be installed in the center of the tank.Part of the pulse of the level meter is reflected to form an echo and return to the pulse transmitter along the same path. The diagram on the right shows the rod-shaped radar installation, which is mainly used for liquid level measurement.The distance between the transmitter and the surface of the measured medium is proportional to the propagation time of the pulse during that period, and the liquid level height is calculated.Sensor can be installed in the center of the roof, if the bottom of the container for cone, can measure in the tank bottom.
Stainless Steel NYRD702 Radar Level Transmitter Technical Parameter
| Parameters |
Frequency: 100MHZ-1.8GHZ Measuring range:-cable :0-30m; rod, coaxial :0-6m Response speed: 0.2S (depending on the actual usage) Accuracy: <0.1% |
| Communication Interface | HART communication protocol |
| Repeatability | ± 3mm |
| Resolution | 1mm |
| Sampling | echo 55 samples / s |
| Output current signal | 4-20mA/HART |
| Process connection |
Flange DN50, DN80, DN100, DN150 |
| Process pressure | -1 ~ 40bar |
| Power |
Power: 24VDC (± 10%), ripple voltage: 1Vpp Power consumption: max 22.5mA |
| Environmental conditions | -40 ℃ ~ +80 ℃ |
| Housing protection grade | IP68 |
| Explosion levels | EXiaIICT6 Ga |
| Instrumentation power supply and signal output wire connection |
Sharing a two-core shielded cable Cable entry: 2 M20 × 1.5 (the cables diameter of 5 - 9mm) |
※ Note: Products can be customized according to the specific requirements of users!
