Product Details:
|
| Model: | NYCSUL-503 | Process Temperature: | -20℃~+70℃ |
|---|---|---|---|
| Process Pressure: | -0.1~0.1MPa Normal Pressure | Measuring Range: | 0～20m(integrated) |
| Process Connection: | Thread, Flange(optional) | Power Supply: | 24VDC |
| Signal Output: | 4...20mA/HART/RS485... (optional) | Frequency Range: | 40KHz |
| High Light: | Ultrasonic Level Gauge Temperature Compensation,PVC Ultrasonic Liquid Level Gauge,Thread Ultrasonic Level Transmitter |
||

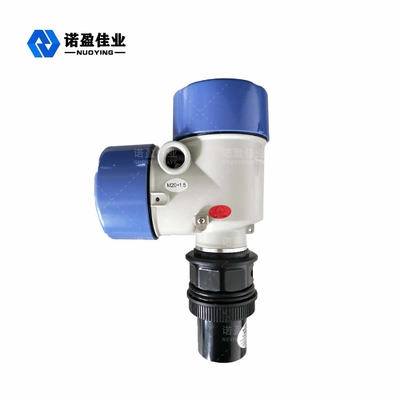

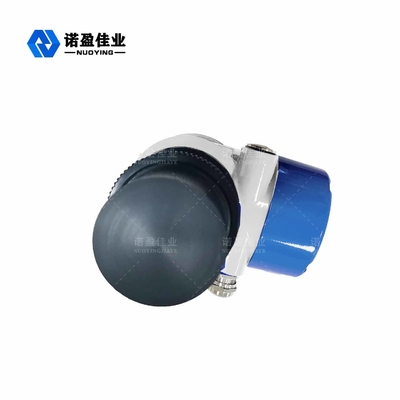

High Precision PVC NYCSUL503 Ultrasonic Liquid Level Gauge Temperature Compensation
NYCSUL503 Ultrasonic Liquid Level Gauge
Ultrasonic level meter is a digital level meter controlled by microprocessor. Automatic power adjustment, gain control, temperature compensation.In the measurement of ultrasonic pulse made by sensor (transducer), sound waves after the liquid surface reflection by the same sensor receiving, by piezoelectric crystal is converted into electrical signals, and by sound waves between transmitting and receiving time to calculate the sensor to the measured distance on the surface of the liquid. Ultrasonic level meter adopts physical sealed probe, IP68 protection grade, no water, improve service life.Due to the use of non-contact measurement, the measured medium is almost unlimited, can be widely used in a variety of liquid and solid material height measurement.Ultrasonic level meter through the special echo processing technology, the site of the fault for troubleshooting, convenient maintenance.
NYCSUL503 Ultrasonic Liquid Level Gauge Technical Parameter
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz |
| Probe type | Integrated |
| Probe Material | PTFE/304(optional) |
| Measuring range | 0～20m(integrated) |
| Measurement accuracy | ＜0.25%(Range＜20m) |
| Measuring angle | 10° |
| Power supply | 24VDC |
| Process temperature | (-20℃~+70℃) |
| Process pressure | -0.1~0.1MPa Normal pressure |
| Process connection | Thread, Flange(optional) |
| Signal output | 4...20mA/HART/RS485... (optional) |
| Display mode | Liquid level, distance (empty height) |
| Setting output | Upper limit setting, lower limit setting |
| Display | LCD |
| Shell material | Polypropylene/Aluminum |
| Protection class | IP68, IP67 (optional) |
| Explosion-proofgrade | ExiaⅡCT6 Ga |
Note: Products can be customized according to the specific requirement of users!
