Product Details:
|
| Typical Application: | Liquid (optional) | Product Model: | NYRD806 |
|---|---|---|---|
| Antenna Form: | Horn Type | Antenna Material: | 304(optional) |
| Power Supply: | 24VDC(optional) | Signal Output: | 4~20mA (optional) |
| Process Pressure: | - 0. 1 ~ 1. 0MPa(optional) | Protection Grade: | IP65, IP67, IP 68 (optional) |
| High Light: | Radar Level Meter No Pollution,Horn Radar Level Transmitter,26ghz Radar Liquid Level Transmitter |
||

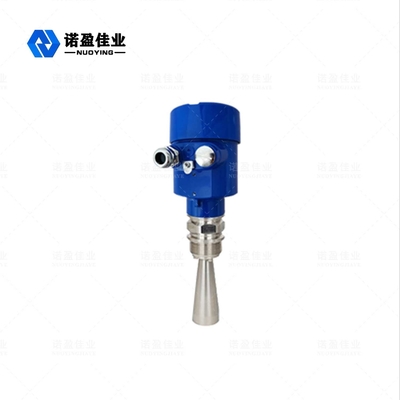

Non-Contact No Wear No Pollution 26ghz High Frequency Radar Level Meter
26Ghz High Frequency Radar Level Meter Design Feature
◎Serious dust environment has little effect on the work of high frequency level meter.
◎Shorter wavelengths, better reflection of sloping solid surfaces.
◎Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interference.
◎The measurement blind area is smaller, and good results can be achieved for small tank measurement.
26Ghz High Frequency Radar Level Meter Technical Parameter
| Typical application | All kinds of liquid (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc) |
| All kinds of dust (strong dust, dust, cement powder, lime powder, fly ash, crystallization, etc) | |
| All kinds of solid (grain, small stones, iron ore, coal, etc.) | |
| Product model | NYRD806 |
| Antenna form | Bar type, water type, plate type, horn type, buffing surface, perspective lens |
| Antenna material | PTFE, 304/316, PP, PFA |
