Product Details:
|
| Model: | NYCSUL-501 | Process Temperature: | -20℃~+70℃ |
|---|---|---|---|
| Process Pressure: | Normal Pressure | Process Connection: | Thread, Flange, Bracket Mounting (optional) |
| Measuring Range: | 0m～20m | Power Supply: | 24VDC (optional) |
| Signal Output: | 4...20mA/HART (optional) | Shell Material: | Polypropylene/Aluminum |
| High Light: | Ultrasonic Water Level Transmitter 40KHz,100KHz Ultrasonic Liquid Level Sensor,Liquid Ultrasonic Flow Meter |
||

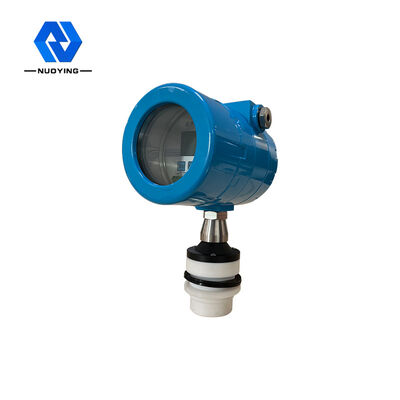

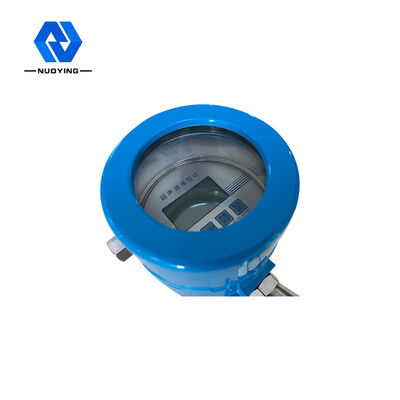

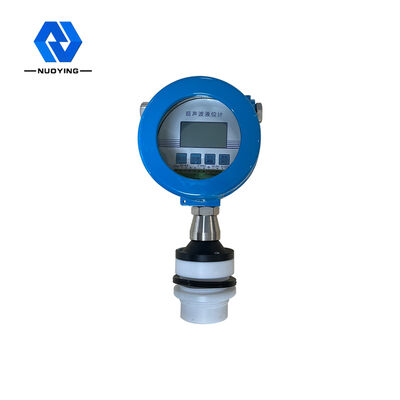

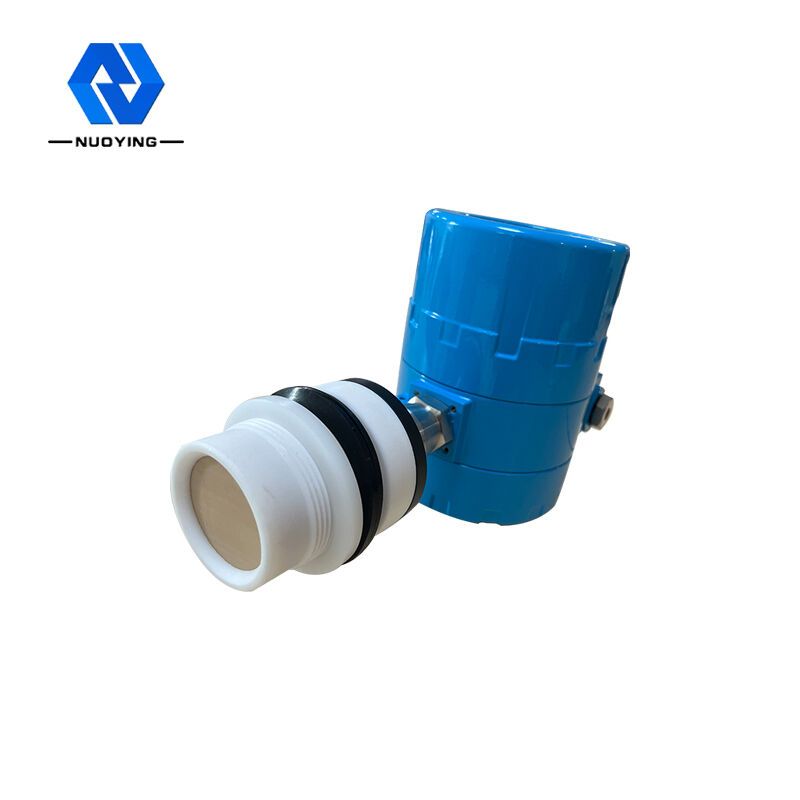

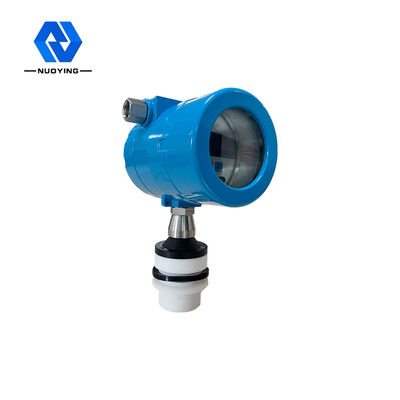

NYCSUL-501 Ultrasonic Level Transmitter 40KHz 100KHz Liquid Level Measurement
NYCSUL-501 Ultrasonic Level Transmitter
Ultrasonic level meter is a digital level meter controlled by microprocessor. The ultrasonic level meter is installed on the top of the container. In the measurement of ultrasonic pulse made by sensor (transducer), sound waves after the liquid surface reflection by the same sensor receiving, by piezoelectric crystal is converted into electrical signals, and by sound waves between transmitting and receiving time to calculate the sensor to the measured distance on the surface of the liquid.The microwave signal is processed by the electronic device and finally converted into an electrical signal related to the material level. Due to the use of non-contact measurement, the measured medium is almost unlimited, can be widely used in a variety of liquid and solid material height measurement.
NYCSUL-501 Ultrasonic Level Transmitter Technical Parameter
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz,100KHz |
| Probe type | Integrated |
| Probe Material | PTFE/304(optional) |
| Measuring range | 0m～20m |
| Measurement accura | ＜0.25%(Range＜20m) |
| Measuring angle | 10° |
| Power supply | 24VDC (optional) |
| Process temperature | -20℃~+70℃ |
| Process pressure | Normal pressure |
| Process connection | Thread, Flange, Bracket mounting (optional) |
| Signal output | 4...20mA/HART (optional) |
| Display mode | Liquid level, distance (empty height) |
| Setting output | Upper/lower limit setting |
| Display | LCD |
| Shell material | Polypropylene/Aluminum |
| Protection class | IP67 (optional) |
| Explosion-proofgrade | Exia Ⅱ CT6 Ga |
Note: Products can be customized according to the specific requirement of users!
