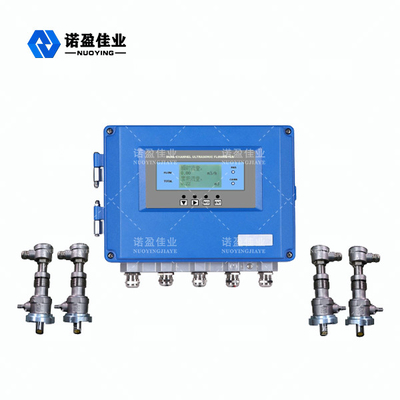

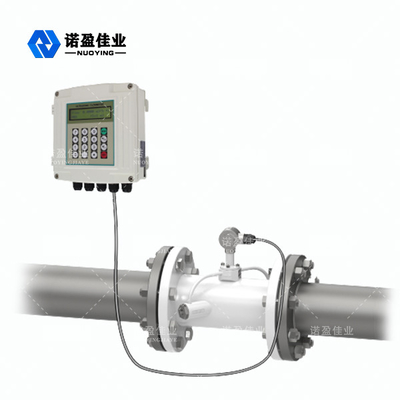

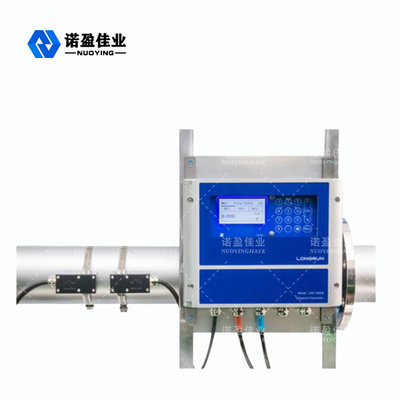

Multi Pulse Transmitting Circuit Ultrasonic Flow Meter Pt100 High Accuracy NY - CS

Multi Pulse Transmitting Circuit Ultrasonic Flow Meter Pt100 High Accuracy NY - CS
Multi Pulse Transmitting Circuit Ultrasonic Flow Meter Pt100 High Accuracy NY - CS Multi Pulse Transmitting Circuit Ultrasonic Flow Meter Pt100 High Accuracy NY - CS Multi Pulse Transmitting Circuit Ultrasonic Flow Meter Pt100 High Accuracy NY - CS

Large Image :  Multi Pulse Transmitting Circuit Ultrasonic Flow Meter Pt100 High Accuracy NY - CS

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NY-CS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Multi Pulse Transmitting Circuit Ultrasonic Flow Meter Pt100 High Accuracy NY - CS

Description
Working Pressure: ≤4.0MPa Pipe Diameter: 25mm~12000mm
Range: ±0.03m/s~±5m/s Repeatability: ±0.2%
Precision: ±1% Linearity: ±1%
Wire Length: Standard Length 9m, The Longest Can Be Extended To 274m Temperature Sensor: Pt100 Temperature Sensor
High Light:

Multi Pulse Ultrasonic Flow Meter

,

4.0MPa Ultrasonic Fluid Flowmeter

,

Pt100 Ultrasonic Flow Meter

Multi-Pulse Transmitting Circuit High Measurement Accuracy NY-CS Ultrasonic Flowmeter





NY-CS Ultrasonic Flowmeter Product Overview



Ultrasonic flowmeter is based on ultrasonic waves in the flow of fluid downstream propagation time and the difference between the time of counter-current propagation and the measured fluid flow rate, so as to find out the method of flow rate. Fixed one-piece ultrasonic flowmeter is applied to the long-term online measurement of various liquids, the host and sensor installed in the measured pipeline for fluid flow measurement. Widely used in water supply, heating, metallurgy, chemical industry, energy and other industries.



NY-CS Ultrasonic Flowmeter Design Feature



1. Clamp-on sensor, easy to install, no need to interrupt fluid and production.

2. High reliability, using low voltage, multi-pulse transmitting circuit, high measurement accuracy, greatly improved service life and reliability.

3. Strong anti-interference ability, using double-balanced differential transmission and reception circuit, effectively resisting strong interference such as frequency converters, TV towers, and high-voltage lines.

4. The output distance is long and the networking is fast. RS485 supports unlimited networking, and is connected with GPRS module to realize wireless transmission.

5. Can be extended to an energy meter to measure energy consumption.



NY-CS Ultrasonic Flowmeter Technical Parameters



Working pressure ≤4.0MPa
Pipe diameter 25mm~12000mm
range ±0.03m/s~±5m/s
Repeatability ±0.2%
precision ±1%
Linearity ±1%
output model

External clip sensor IP68 Working temperature -10℃~80℃

External clip sensor IP68 Working temperature -10℃~150℃

sensor

OTC relay output, R485, 4-20mA

OTC relay output, R232, 4-20mA

OTC relay output, R232, 4-20mA, RTD

OTC relay output, R485, 4-20mA, RTD

Wire length Standard length 9m, the longest can be extended to 274m
Temperature Sensor Pt100 temperature sensor
