Product Details:
|
| Typical Application: | Liquid、Solid、 Dust | Product Models: | NYSP-M16、NYSP-M17、NYSP-M18、NYSP-M19、NYSP-M20、Nysp-m21, NYSP-M22, NYSP-M23, NYSP-M24 |
|---|---|---|---|
| Antenna Form: | Soft Cable, Insulated Soft Cable, Non-insulated Soft Cable, Hard Rod, Insulated Hard Rod, Insulated Hard Rod At Both Ends, Drum Type Hard Rod | The Antenna Material: | PTFE, 304, 316 |
| Measuring Range: | 3M, 20M (deep Well Can Measure Several Hundred Meters, Which Can Be Customized As Well) | The Process Temperature: | - 40 ~ + 130 ° C, - 100 ~ + 200 ° C, 40 ~ + 260 ° C, - 50 ~ + 500 ° C |
| Process Connection: | Thread And Flange (optional) | Explosion-proof Grade: | Exia II CT6 Ga, Exd II CT6 Gb(see Certificate For Details) |
| High Light: | Radio Frequency Admittance Type Level Switch,PTFE RF Admittance Level Transmitter,Liquid RF Admittance Level Sensor |
||

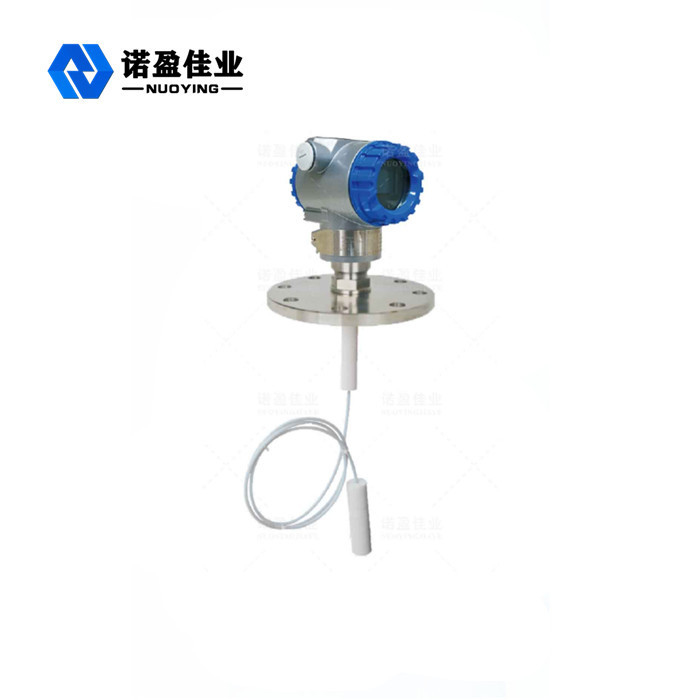

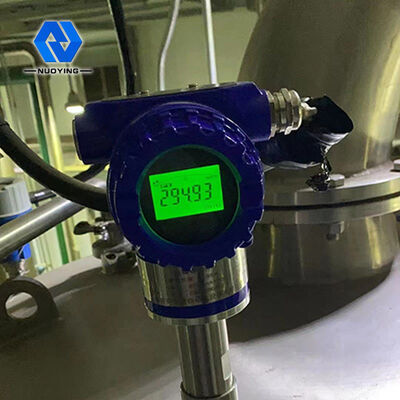

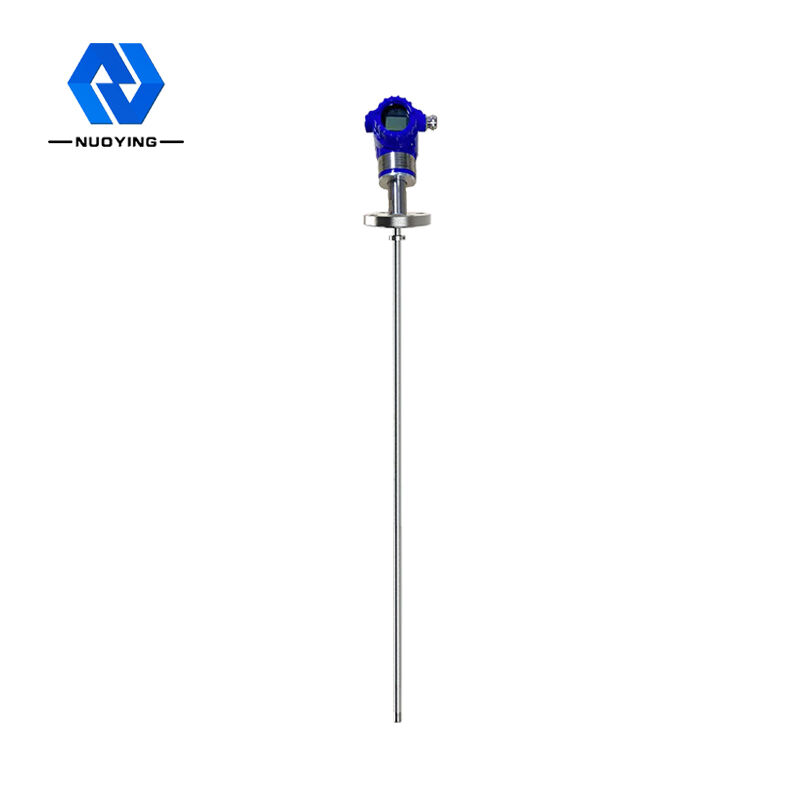

PTFE Liquid Solid Dust RF Admittance Level Transmitter NYSP Anti Hanging Material
Working Principle of PTFE Liquid Solid Dust RF Admittance Level Transmitter NYSP Anti Hanging Material
Radio frequency admittance measurement technology is a level measurement technology with unique advantages. Although it is similar to the concept of general capacitive measurement technology, the RF admittance technology adds driving shield circuit and chopper circuit to the electronic unit, so it can realize the independent measurement of impedance and capacitive reactance. According to the calculation of physical laws, the impedance and capacitance reactance of any hanging material are equal, so the influence caused by hanging material can be measured and eliminated from the total output through the phase shift of the oscillation circuit.
Design Features of PTFE Liquid Solid Dust RF Admittance Level Transmitter NYSP Anti Hanging Material
◎ anti hanging: the unique driving shield circuit design improves the anti hanging ability
◎ power supply range: power supply working range: 13 ~ 35vdc
◎ probe process temperature: - 100 ℃ ~ 800 ℃
◎No dead zone measurement, can be applied to a large range of material level measurement occasions of more than ten centimeters or even several centimeters
◎The maximum measuring range can reach hundred meters, even hundreds of meters
◎Viscous material interface measurement is a great advantage of this instrument
◎stable and reliable output, resistant to fly ash, falling material, water vapor, crystallization and wax
◎no movement, no parts easy to wear, no regular cleaning, maintenance and debugging
Technical Parameters of PTFE Liquid Solid Dust RF Admittance Level Transmitter NYSP Anti Hanging Material
| Typical application | Liquid(Corrosion, conductivity, low dielectric constant, stirring, interface, electric dehydration, viscosity, deep well, ultra large range and other occasions) |
| Dust (conductivity, insulating powder, etc.) | |
| Solid (conductivity, insulating, ultra-high temperature insulating solid, etc.) | |
|
product model
|
NYSP-M16 NYSP-M17 NYSP-M18 NYSP-M19 NYSP-M20 NYSP-M21 NYSP-M22 NYSP-M23 NYSP-M24 |
|
Antenna form
|

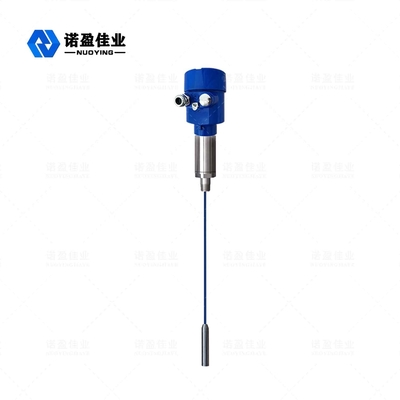

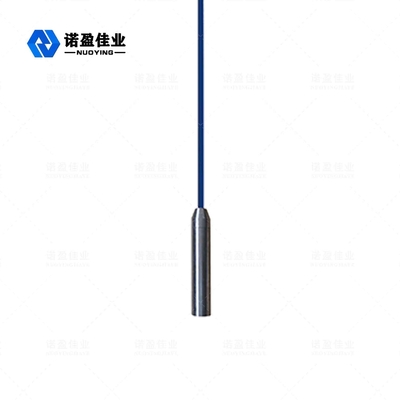

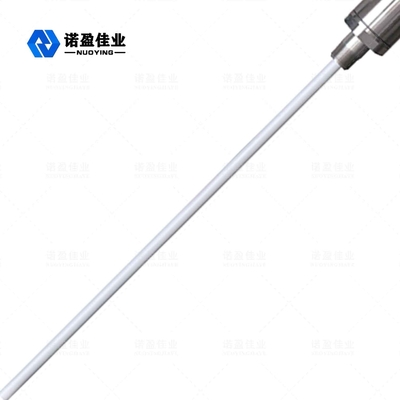

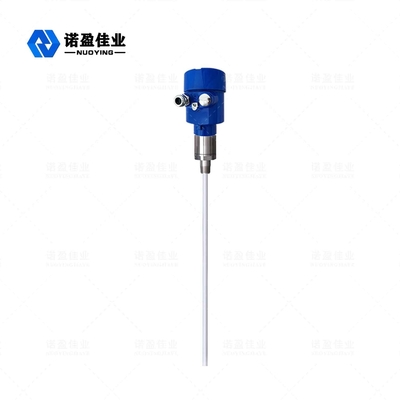

Soft cable, insulated soft cable, non insulated soft cable, hard rod, insulated hard rod, insulated hard rod at both ends, cylindrical hard rod |
| Antenna Material | PTFE,304,316 |
| measuring range | 3m, 20m(Deep well can measure hundreds of meters and can be customized) |
| Wavelength | 635-650mm |
| Measurement precision | 0.05%~0.1%F.S |
| Power supply | 24VDC |
|
signal output |
4...20mA/HART/ RS485/Modbus…. |
| Process temperature | -40~+130℃,-100~+200℃, -40~+260℃, -50~+500℃ |
| Process pressure |
-0.1~1.6MPa,-0.1~4.0MPa, -0.1~6.3MPa
|
| Process connection | screw thread,flange(selectable) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
