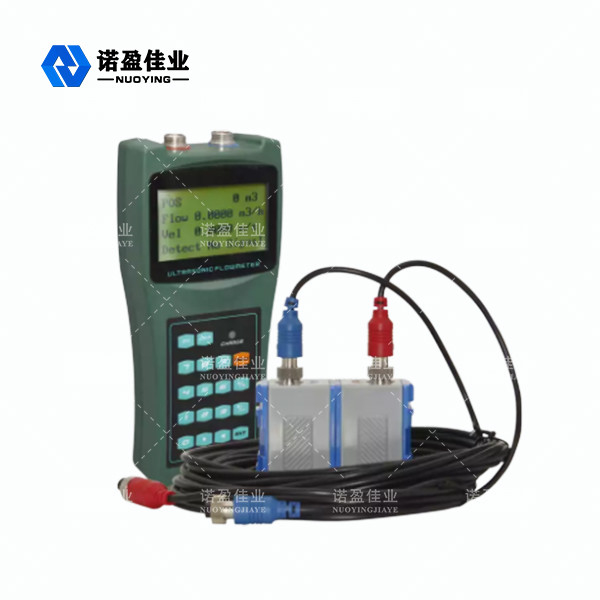

NYCL - 100C Handheld Ultrasonic Flow Meter Heating Pipe Network Online Measurement

NYCL - 100C Handheld Ultrasonic Flow Meter Heating Pipe Network Online Measurement
NYCL - 100C Handheld Ultrasonic Flow Meter Heating Pipe Network Online Measurement

Large Image :  NYCL - 100C Handheld Ultrasonic Flow Meter Heating Pipe Network Online Measurement

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYCL-100C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

NYCL - 100C Handheld Ultrasonic Flow Meter Heating Pipe Network Online Measurement

Description
Measuring Principle: Ultrasonic Time Difference Type Principle Measurement Period: 500ms (2 Times Per Second, 128 Sets Of Data Collected Per Cycle)
Heat Unit: Gijor, Kcal, BTU Optional Heat Consumption Calculation: From 0.25K
Ambient Temperature: Class B -25℃~55℃ Temperature Sensor: PT100 Three-wire Platinum Resistance
High Light:

Heating Pipe Handheld Ultrasonic Flowmeter

,

Handheld Ultrasonic Flow Meter

,

PT100 Portable Ultrasonic Flow Meter

Online Measurement Of Heating Pipe Network NYCL-100C Handheld Ultrasonic Flowmeter





NYCL-100C Handheld Ultrasonic Flowmeter Working Principle



NYCL-100C split type ultrasonic heat meter is widely used in online measurement of heating pipe network. The main unit is divided into wall-mounted type, explosion-proof type, local display type and modular type.



NYCL-100C Handheld Ultrasonic Flowmeter Technical Parameter



Measuring principle Ultrasonic time difference type principle
Measuring range 0~±10m/s
Measuring accuracy ±1.0%
Measurement period 500ms (2 times per second, 128 sets of data collected per cycle)
heat unit Gijor, kcal, BTU optional
Heat consumption calculation from 0.25K
ambient temperature Class B -25℃~55℃
Temperature Sensor PT100 three-wire platinum resistance
Direction of flow Positive and negative bi-directional metering, and measurement of positive, negative and net cumulative flow heat
Data Interface RS485 serial interface, can be upgraded through the PC computer to the flowmeter, support Modbus and other protocols
Signal output 4-20mA output, OCT pulse output, relay output.
Power supply method AC85-264V or DC24V
Measurement media Water, seawater, sewage, alcohol, various oils and other media that can conduct ultrasound in a single, uniform, stable liquid
Media turbidity ≤20,000ppm and small bubble content
Applicable Tubes Carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastic and other uniform quality and density of the pipe, allowing a lining straight
Pipe Section The sensor installation point should preferably meet: 10D upstream, 5D downstream, 30D from the pump outlet
