|Cumulative Flow Range:||9999999999 Km³||Calibration:||Factory Calibrated, Field Calibrated|
|Monitor:||2.8 Inch Chinese LCD||Button:||4 Digit Touch Keys|
|Signal Input:||4～20mA; 0～20mA; 1～5V; 0～5V; RS485;||Power Supply:||Working Voltage: DC24V Or AC160V～250V|
|Environmental Performance:||Working Temperature: 0～50℃ Ambient Humidity: ≤85RH Pressure: Normal Pressure||Data Storage:||Traffic In The Past 168 Hours; Traffic In The Past 31 Days; Traffic In The Past 14 Weeks; Traffic In The Past 36 Months; Traffic In The Past Ten Years|
Ultrasonic Open Channel Flowmeter,
Sewage Treatment Open Channel Flowmeter,
Control Relay Output Ultrasonic Flow Meter

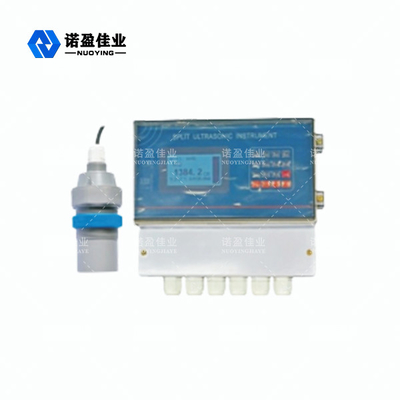

Control Relay Output Water And Sewage Treatment NYCL-100M Ultrasonic Open Channel Flowmeter
NYCL-100M Ultrasonic Open Channel Flowmeter Working Principle
NYCL-100M ultrasonic open channel flowmeter is a high-precision flow meter for measuring Venturi or Parshall troughs using ultrasonic waves. It measures the time when sound waves are reflected back after touching the water surface of the channel, and then calculates the flow rate of the channel according to the formula. , which provides a flow output showing flow rate and total flow.
NYCL-100M Ultrasonic Open Channel Flowmeter Design Feature
1. Water and sewage treatment - pump room, water collection well, biochemical reaction tank, sedimentation tank, etc.
2. Electric power, mine - mortar pool, coal slurry pool, butter storage tank, stockyard or some mobile equipment control, etc.
3. Food industry a winery, granary, food material storage tank, etc.
4. The control system is matched with a performance index performance characteristic.
5. Built-in multiple algorithms, suitable for various standard weirs.
6. The solidstable sensor is suitable for harsh industrial occasions.
7. 4~20mA isolated current output, optional field bus interface.
8. Control relay output, alarm relay output.
9. Water and sewage treatment—inlet, outlet, etc.
NYCL-100M Ultrasonic Open Channel Flowmeter Technical Parameters
|Measuring range||0～93m³/s (related to the specification of the weir and groove used to determine the range)|
|Cumulative flow range||9999999999 Km³|

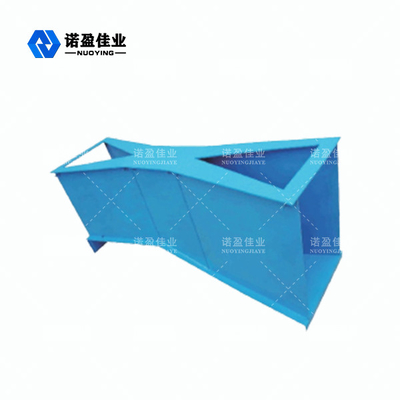

|Suitable weir type||Triangular weir, rectangular weir, equal width weir, Parshall trough|
|Calibration||Factory calibrated, field calibrated|
|monitor||2.8 inch Chinese LCD|
|button||4 digit touch keys|
|signal input||4～20mA; 0～20mA; 1～5V; 0～5V; RS485;|
|Power supply||Working voltage: DC24V or AC160V～250V|
|power||Normal power consumption: <5W|
|Signal output||4-20mA output, OCT pulse output, relay output.|
|Environmental performance||Working temperature: 0～50℃ Ambient humidity: ≤85RH Pressure: normal pressure|
|data storage||Traffic in the past 168 hours; traffic in the past 31 days; traffic in the past 14 weeks; traffic in the past 36 months; traffic in the past ten years;|
Contact Person: Winnie
Measuring principle: Ultrasonic time difference type principle
Measuring accuracy: ±1.0%
Direction of flow: Positive and negative bi-directional metering, and measurement of positive, negative and net cumulative flow \ heat
Data Interface: RS485 serial interface, can be upgraded through the PC computer to the flowmeter, support Modbus and other protocols
