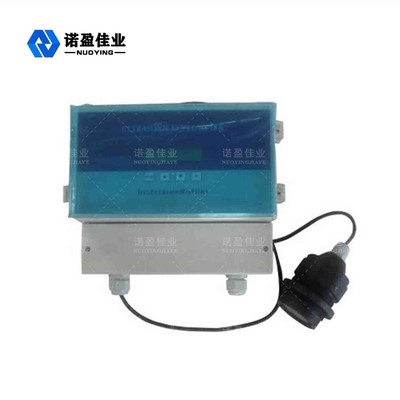

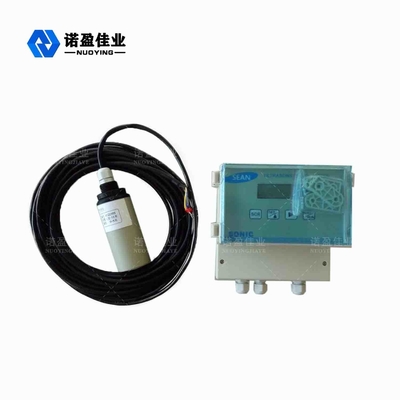

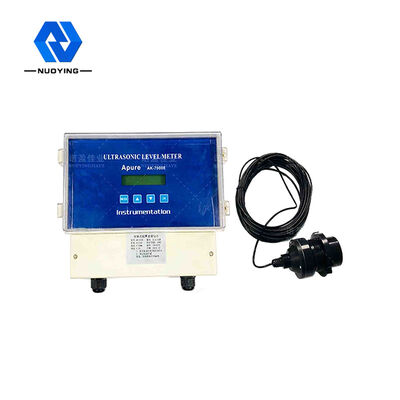

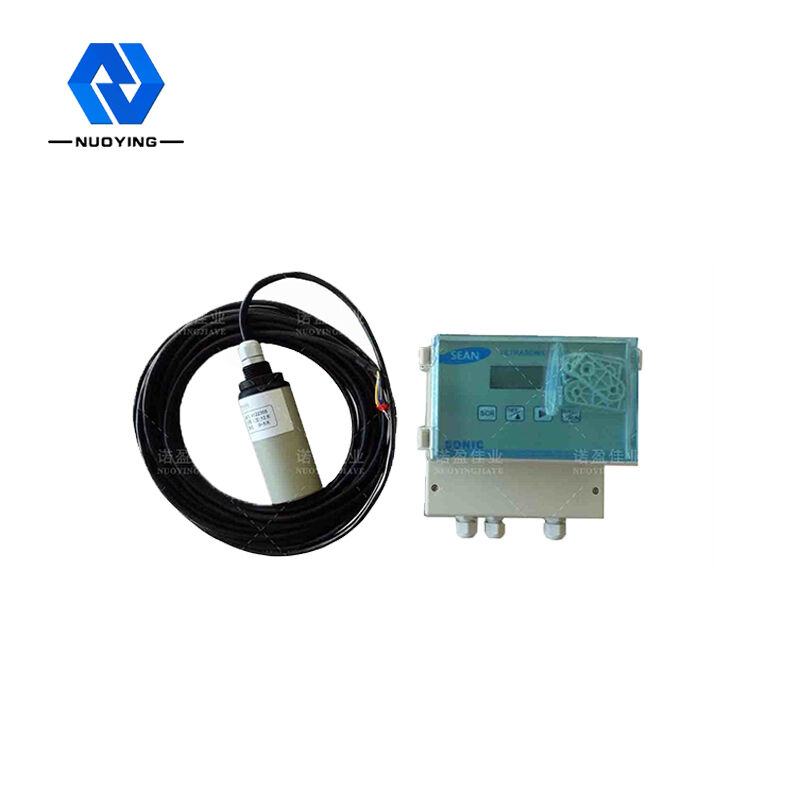

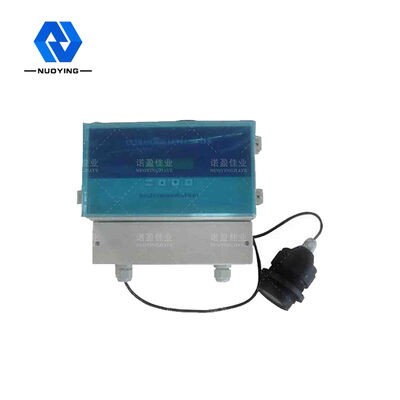

Pure Ultrasonic Level Transmitter Open Channel Flow Meter NYCSUL - 501

Pure Ultrasonic Level Transmitter Open Channel Flow Meter NYCSUL - 501
Pure Ultrasonic Level Transmitter Open Channel Flow Meter NYCSUL - 501 Pure Ultrasonic Level Transmitter Open Channel Flow Meter NYCSUL - 501

Large Image :  Pure Ultrasonic Level Transmitter Open Channel Flow Meter NYCSUL - 501

Product Details:
Place of Origin: Xi'an,Shannxi,China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NYCSUL-501
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $150~$380/pcs
Packaging Details: Carton, 30cm x 25cm x 20cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 500 pcs/per month

Pure Ultrasonic Level Transmitter Open Channel Flow Meter NYCSUL - 501

Description
Model: NYCSUL-501 Measurement Range: 0-20M (customized According To The Actual Situation)
Blind Area: 0.25-0.5m Ranging Accuracy: ±3mm/0.3% (standard Conditions)
Pressure: 3 Under Atmospheric Pressure Instrument Type: Split Type
Range Resolution: 1mm Ambient Temperature: -20℃~+60℃
High Light:

Pure Ultrasonic Open Channel Flow Meter

,

Open Channel Ultrasonic Level Transmitter

,

Split Ultrasonic Flow Meter 20M

A Pure Ultrasonic Open Channel Flow Meter NYCSUL-501 Ultrasonic Level Transmitter





NYCSUL-501 Ultrasonic Level Transmitter



A pure ultrasonic open channel flow meter,meter installation is recommended to install the outdoor sun visor to extend the life of the instrument.Open channel flow meter using a common type of open channel flow measurement methods, including the use of hydraulic structures, such as weir or sink. wire, cable protection pipes, pay attention to sealing to prevent water.Flow measurement into reservoir is a common application in which open channel flow measurement plays a role. While the instrument itself with lightning protection devices, but the instrument in a multi-mine area, it is recommended in the instrument into the outlet end of the additional Install a dedicated lightning protection devices.When the liquid flow in a pipe or channel with free surface, open channel flow occurs.Instrument in particularly hot, cold places, that the ambient temperature may exceed the job requirements of the instrument, it is recommended around the level meter plus high fortification, low temperature devices.



NYCSUL-501 Ultrasonic Level TransmitterTechnical Parameter



Product Name Apure split diaphragm type 4-20ma 220V/24V cheap ultrasonic level meter
Measurement range 0-20M (customized according to the actual situation)
Blind area 0.25-0.5m
Ranging accuracy ±3mm/0.3% (standard conditions)
Pressure 3 under atmospheric pressure
Instrument type Split type
Range resolution 1mm
Ambient temperature -20℃~+60℃
Meter display Built-in LCD display level or space distance
output a set of 4-20 ma analog output
Modbus RTU protocol RS - 485 communication
protection class IP65



Note: Products can be customized according to the specific requirement of users!
