Product Details:
|
The Process Connection Thread, Bracket, Flange, Sanitary Clamp (optional): | Slightly Corrosive Liquid | Accuracy Of Measurement: | 0.05% ~ 0.1% F. S |
---|---|---|---|
Measuring Range: | 20M | Electrical Interface: | M20*1.5,½ ″NPT |
Process Connection: | Flange/thread (optional) | Explosion-proof Grade: | Exd II CT6 Gb(see Certificate For Details) |
The Process Temperature: | -40~+130"C, | Power Supply: | 24VDC,220VAC |
High Light: | Intelligent Radar Level Transmitter 6G,Dust Intelligent Radar Level Meter,Anti Corrosion Radar Level Switch |

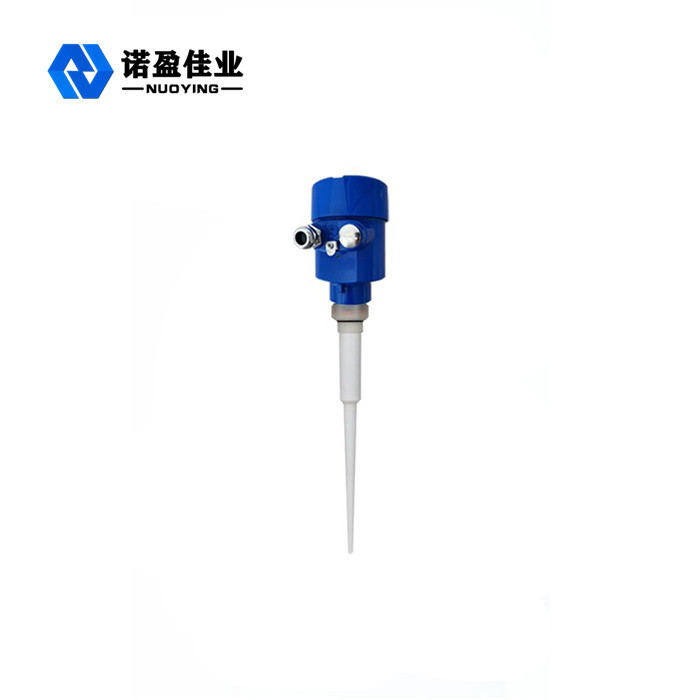

6G NYRD 801 Intelligent Radar Level Meter For Slightly Corrosive Liquid
The working Principle of 6G NYRD 801 Intelligent Radar Level Meter For Slightly Corrosive Liquid
To transmit and receive microwave pulses at very low energy poles by means of an antenna system. At the speed of light, the RADarman can pass the signal through the device and convert it into a level signal. A special time-extension method ensures stable and accurate measurements in a very short time
Even if there is false echo in the case of complex working conditions, the echo of the object level can be accurately analyzed with the latest microprocessing technology and modulating software
Design features of 6G NYRD 801 Intelligent Radar Level Meter For Slightly Corrosive Liquid
◎ Smart radar level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, the product can be applied to all kinds of complex working conditions in NPT(normal pressure and temperature.
◎ The function of "false echo learning" makes the instrument can accurately identify the real echo under the condition of multiple false echoes, so as to obtain accurate measurement results in NPT(normal pressure and temperature.
◎ Various process connection modes and detection components can be customized according to customer needs
◎ The pulse working mode, the product transmission power is very low, can be installed in all kinds of metal, non-metal containers, no harm to human body and environment of the corrosion-resistant oil.
Technical Parameters Of 6G NYRD 801 Intelligent Radar Level Meter For Slightly Corrosive Liquid
Typical application | Liquid |
slightly corrosive liquid | |
product model |
NYRD801 |
Antenna form | Stick type |
Antenna material | PTFE,PP |
The echo sampling | 55 Times / s |
measuring range | 20m |
Measurement precision | 0.05%~0.1%F.S |
Power Supply | 24VDC(two lines,four lines),220VAC |
signal output | 4...20mA/HART/RS485/Modbus... |
Process temperature | -40~+130℃ |
Process pressure | -0.1~0.3MPa |
Process Connection | screw thread,flange(optional) |
Electrical interface | M20*1.5,½ ″NPT |
Protection Level | IP65,IP67,IP68(optional) |
Explosion-proof Grade |
Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of user
