Product Details:
|
| Typical Application: | Solid Dust Particles | Echo Sampling: | 55 Times /s |
|---|---|---|---|
| Process Pressure: | -0.1 ~1.6MPa | Protection Class: | IP67 |
| ElectriElectrical Interface: | Electrical Interface ½"NPT | The Antenna Forms And Material: | The Horn Type 616 |
| The Process Temperature: | - 100 ~ + 200 ° C, 40 ~ + 260 ° C | ||
| High Light: | Anti Heated Radar Type Level Transmitter,PTFE Metal Radar Level Transmitter,6G Radar Liquid Level Sensor |
||

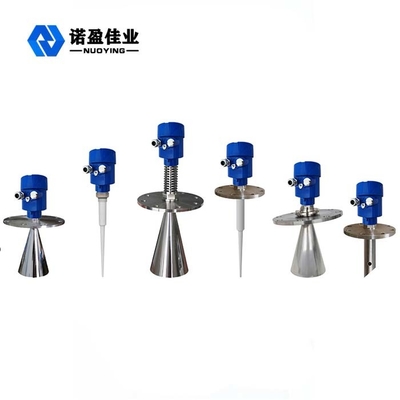

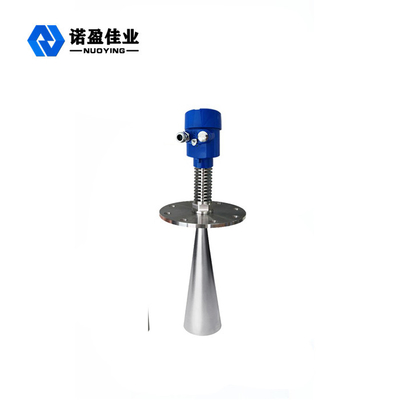

NYRD 804 Advanced Microwave Processing Technology Radar Level Transmitter For Solid Dust Particles
Working Principle of NYRD 804 Advanced Microwave Processing Technology Radar Level Transmitter For Solid Dust Particles
To transmit and receive microwave pulses at very low energy poles by means of an antenna system. At the speed of light, the RADarman can pass the signal through the device and convert it into a level signal. A special time-extension method ensures stable and accurate measurements in a very short time
Even if there is false echo in the case of complex working conditions, the echo of the object level can be accurately analyzed with the latest microprocessing technology and modulating software
Design Features of NYRD 804 Advanced Microwave Processing Technology Radar Level Transmitter For Solid Dust Particles
◎ Smart radar level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, the product can be applied to all kinds of complex working conditions in NPT(normal pressure and temperature.
◎ The function of "false echo learning" makes the instrument can accurately identify the real echo under the condition of multiple false echoes, so as to obtain accurate measurement results in NPT(normal pressure and temperature.
◎ Various process connection modes and detection components can be customized according to customer needs
Technical Parameters of NYRD 804 Advanced Microwave Processing Technology Radar Level Transmitter For Solid Dust Particles
| Typical application | Solid Dust Particles |
|
product model
|
NYRD804 |
| Antenna form | Stick,trumpet,Guide wave tube type |
| Antenna material | 304(Optional) |
| The echo sampling | 55 Times / s |
| measuring range | 35m |
| Measurement precision | 0.05%~0.1%F.S |
| Power Supply | 24VDC(two lines,four lines) |
| signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃ |
| Process pressure | -0.1~4.0MPa, |
| Process Connection | flange(optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| Protection Level | IP67(optional) |
|
Explosion-proof Grade |
Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
