Product Details:
|
| Pipe Size: | 15mm-6000mm | Velocity: | ±32 M/s |
|---|---|---|---|
| Response Time: | 0-999 Seconds, User-configurable | Case Size: | 210x90x30mm |
| Totalizer: | 7-digit Totals For Net, Positive And Negative Flow Respectively | Liquid Types: | Virtually All Liquids |
| Security: | Setup Values Modification Lockout. Access Code Needs Unlocking | Display: | 4x8 Chinese Characters Or 4x16 English Letters |
| High Light: | RS485 Portable Ultrasonic Flowmeter,DN25 Ultrasonic Digital Water Flowmeter,Digital Ultrasonic Flow Meter |
||
4-20mA RS485 High Precision Portable Ultrasonic Flowmeter Digital Water Flowmeter OEM DN25-DN1000
RS485 High Precision Portable Ultrasonic Flowmeter Product Description

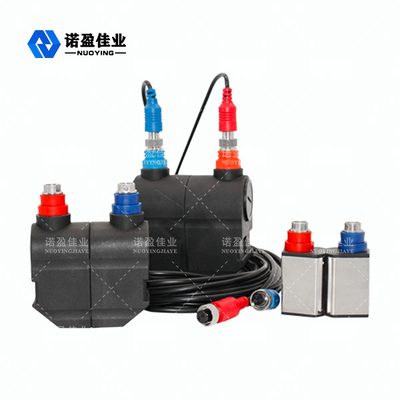

Ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.
The transit time flow meter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection of the mounting method depends on pipe and liquid characteristics.
The flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the velocity of the liquid in the pipe.
RS485 High Precision Portable Ultrasonic Flowmeter Technical Parameters
| Response Time | 0-999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | 15mm-6000mm |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4x8 Chinese characters or 4x16 English letters |
| Transducer Cord Length | Standard 5m x 2, optional 10m x 2 |
| Power Supply |
3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer |
7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 210x90x30mm |
