Product Details:
|
| Typical Application: | Liquid In High Temperature And High Pressure Environment | Antenna Material: | 304 |
|---|---|---|---|
| Measuring Range: | 15m | Signal Output: | 4... 20mA/HART/RS485/Modbus... |
| Process Connection: | Flange | Protection Grade: | IP 68 |
| Explosion-proof Grade: | ExiaIICT6Ga | Frequency: | 500MHz-1.8Ghz |
| High Light: | Guided Radar Level Transmitter High Teampreture,6m Guided Wave Radar Level Transmitter,Dust Guided Wave Level Transmitter |
||

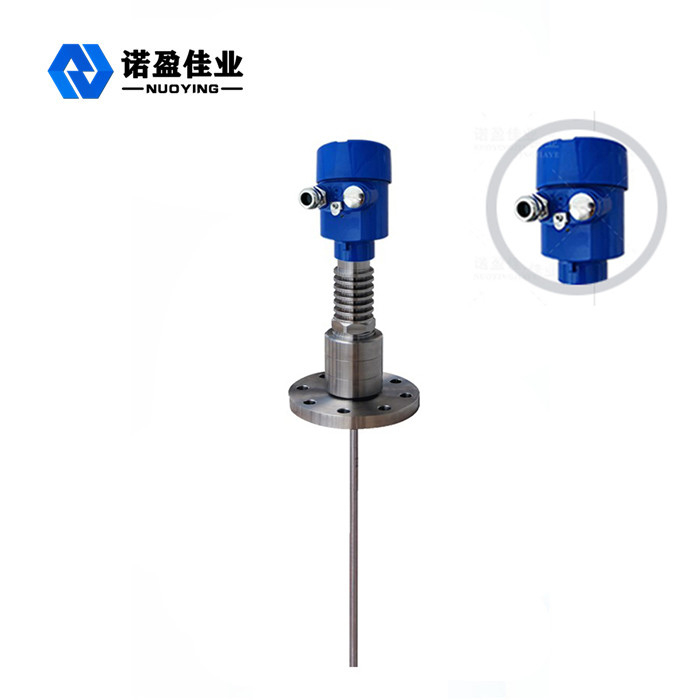

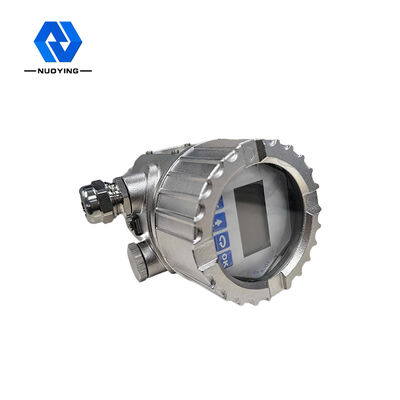

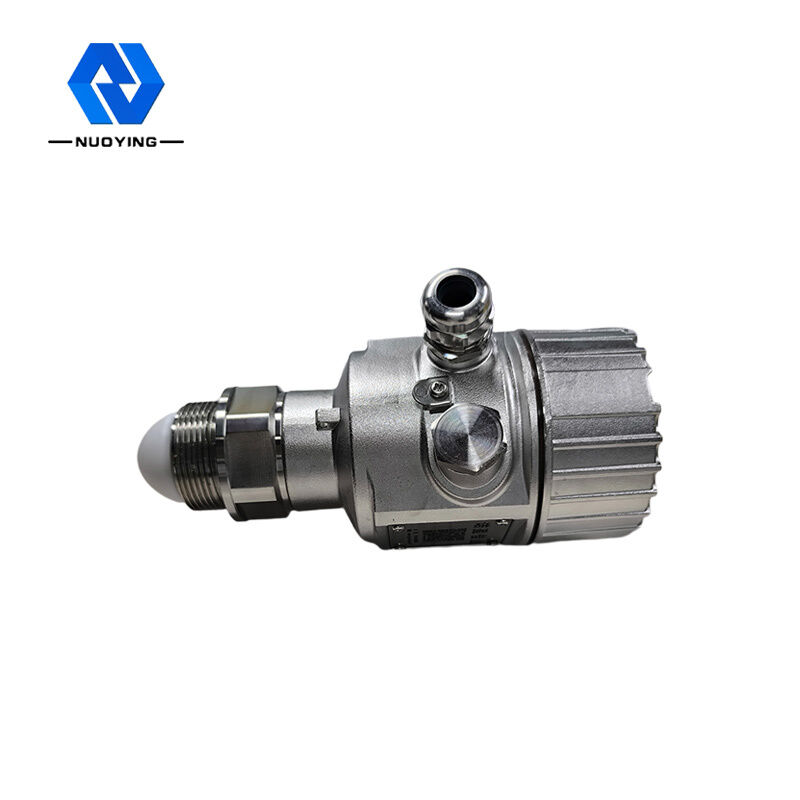

NYRD 705 Guided Wave Radar Level Transmitter For Liquid In High Temperature And High Pressure Environment
Working principle of NYRD 705 Guided Wave Radar Level Transmitter For Liquid In High Temperature And High Pressure Environment
The anti-corrosive and strong microwave pulse emitted by the guided laser wave radar propagates along the detection component (steel cable or steel rod), and encounters the tested media. According to the sudden change of the dielectric constant, it causes reflection, and a part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured substances.
Input processing
Guided wave radar equipment is a measuring instrument focus on the principle of time travel. The radar tool wave runs at the speed of light, and the proceeding time can be converted into purpose level signal by electronic acceeories and components. The probe emits highly-frequency pulse & solid and propagates along the cable or rod probe.
Output processing
By entering empty tank height E(= zero), full tank height F(= full range) and some application parameters, the application parameters, which will automatically adapt the meter to the measuring conditions, corresponding to 4-20mA output.
Design features of NYRD 705 Guided Wave Radar Level Transmitter For Liquid In High Temperature And High Pressure Environment
◎Guided wave radar object level meter is suitable to advanced microwave processing technology and unique Echo Discovery Echo processing technology, contacting measurement, high-accuracy measurement, more accurate measurement. cuttentluy, guided wave radar is not affected by external environment such as medium temperature and adhesion.
◎The 70-X series guided wave radar object level meter is suitable for versatile complicated working conditions and applications due to the versprocess connection modes and detection module kinds. Such as: high temperature, highly-pressured and low dielectric constant medium.
◎Pulse working mode, low emission power, can be put in a variety of corrosive, non-metal containers, no harm to human body and the environment.
Technical Parameter of NYRD 705 Guided Wave Radar Level Transmitter For Liquid In High Temperature High Pressure Environment
| Typical application | Liquid, low dielectric constant,Built-in heating Coil, ladder, floating plate |
| Dust (fly ash, concrete and other media) | |
| Solid (small particles, grain, gravel, sand | |
| Product model | NYRD705 |
| Antenna form | rod type, double cable type, double rod type |
| Antenna material | 316 |
| Echo sampling | 55 times /s |
| Measuring range | 15m |
| Measurement accuracy | 0.05% ~ 0.1% F.S |
| Power supply | 24VDC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | -200~ +400 °C |
| Process pressure | -0.1~40MPa |
| Process connection | flange |
| Electrical interface | ½ " NPT |
| Protection grade | IP 68 |
| Explosion-proof grade | ExiaIICT6Ga |
※Note:The product can be customized according to the specific requirements of users.
