Product Details:
|
| Typical Application: | Liquid | Product Model: | NYRD-803 |
|---|---|---|---|
| Antenna Material: | 304， | Signal Output: | Modbus |
| Echo Sampling: | 55 Times /s | Measurement Range: | 20m(optional) |
| Process Connection: | Flange,(optional) | Electrical Interface: | M20×1.5(optional) |
| High Light: | Horn Type Radar Level Transmitter,Echo Guided Radar Level Sensor 6g,Liquid Flange Radar Level Switch |
||

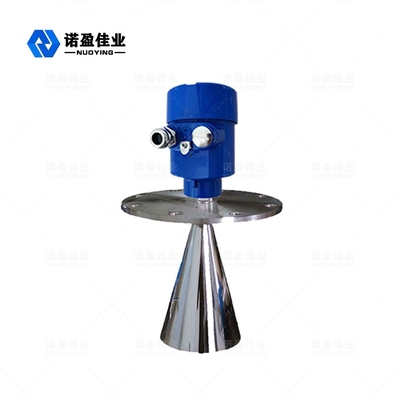

Flange Intelligent Horn Type 6g Radar Level Meter Echo Discovery
6g Radar Level Meter Working Principle
The antenna receives the reflected microwave pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro pulse on the surface of the material. The correct echo signal identification is completed by the pulse software, and the accuracy can reach the millimeter level. The distance D from the material surface is proportional to the time travel T of the pulse:
D=C×T/2, where C is the speed of light
Since the distance E of the empty tank is known, the object position L is: L= E-D
6g Radar Level Meter Technical Parameter
| Typical application | Liquid dust with simple process (dielectric constant >1.8, guided wave tube type with stirring) |
| Strong dust (can be equipped with purging or dust cover) | |
| Solid (small particles, pebbles, sand and other media) | |
| Product model | NYRD803 |
| Antenna form | Bar type, horn type, still-pipe |
| Antenna material | PTFE,304,316 |
| Echo sampling | 55 times /s |
| Measurement range | 20m, 35 m |
| Measurement accuracy | 0.05% ~ 0.1% F.S |
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | -40~ +130°C,-40~ +250 °C |
| Process pressure | -0.1~0.3MPa, -0.1~2.0MPa,-0.1~4.0MPa |
| Process connection | Thread, bracket, flange,(optional) |
| Electrical interface | M20×1.5 , ½ " NPT |
| Protection grade | IP 65,IP 67,IP 68 (optional) |
| Explosion-proof grade | ExiaIICT6Ga, ExdIICT6Gb(see certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
