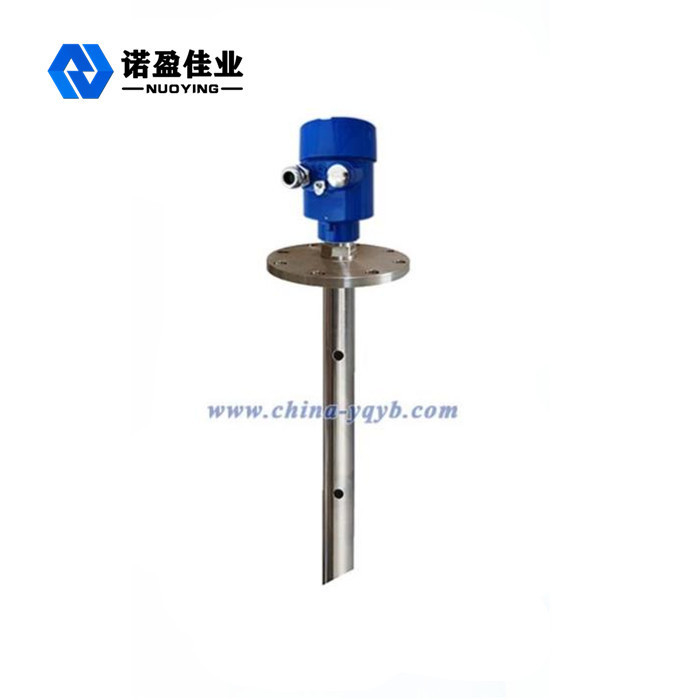

Flange Thread Intelligent 6g Radar Level Meter Non Metal Containers

Flange Thread Intelligent 6g Radar Level Meter Non Metal Containers
Flange Thread Intelligent 6g Radar Level Meter Non Metal Containers

Large Image :  Flange Thread Intelligent 6g Radar Level Meter Non Metal Containers

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYRD-803T
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Please Contact Me
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Flange Thread Intelligent 6g Radar Level Meter Non Metal Containers

Description
Typical Application: Liquid ,dust Product Model: NYRD803T
Echo Sampling: 55 Times /s Measurement Range: 20m, 35 M
Power Supply: 24VDC(two Wire, Four Wire) Signal Output: RS485/Modbus
Process Temperature: -40~ +130°C Process Pressure: -0.1~2.0MPa
High Light:

Intelligent 6g Radar Level Meter

,

Non Metal Radar Level Meter 20m

,

Flange Thread Radar Level Switch

Non-Metal Containers Flange Thread Intelligent 6g Radar Level Meter





6g Radar Level Meter Working Principle



The antenna receives the reflected microwave pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro pulse on the surface of the material. The correct echo signal identification is completed by the pulse software, and the accuracy can reach the millimeter level. The distance D from the material surface is proportional to the time travel T of the pulse:

D=C×T/2, where C is the speed of light

Since the distance E of the empty tank is known, the object position L is: L= E-D



By entering empty tank height E(= zero), full tank height F(= full range) and some application parameters, the application parameters will automatically adapt the meter to the measuring environment, corresponding to 4-20mA output.



6g Radar Level Meter Technical Parameter



Antenna material PTFE,304,316
Echo sampling 55 times /s
Measurement range 20m, 35 m
Measurement accuracy 0.05% ~ 0.1% F.S
Power supply 24VDC(two wire, four wire), 220VAC
Signal output 4... 20mA/HART/RS485/Modbus...
Process temperature -40~ +130°C,-40~ +250 °C
Process pressure -0.1~0.3MPa, -0.1~2.0MPa,-0.1~4.0MPa
Process connection Thread, bracket, flange,(optional)
Electrical interface M20×1.5 , ½ " NPT
Protection grade IP 65,IP 67,IP 68 (optional)
Explosion-proof grade ExiaIICT6Ga, ExdIICT6Gb(see certificate for details)



Flange Thread Intelligent 6g Radar Level Meter Non Metal Containers 0
