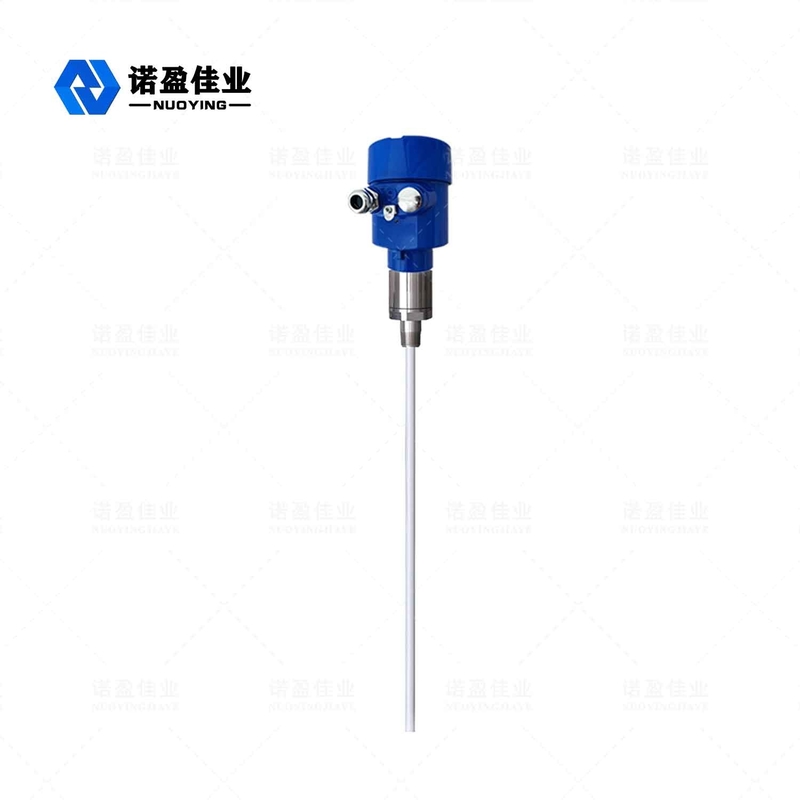

20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry

20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry 20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry 20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry

Large Image :  20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry

Product Details:
Place of Origin: CHINA
Brand Name: NUOYINGJIAYE
Certification: CE,Exia II
Model Number: NYSP-Z16
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $400-$1600 /pc
Packaging Details: carton, 80cm x 17cm x 24cm (Standard)
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 1200 pcs / month

20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry

Description
Typical Application: Liquid (Corrosive,Conductive,Sticky) Split Installation Product Model: NYSP-Z16
Antenna Type: Insulative Hard Rod (PTFE Optional) Antenna Material: PTFE, 304, 316
Meaturing Range: 3m, 20m (customized) Process Temperature: -40 ~ +260°C
Process Presure: -0.1 ~ 4.0MPa Power Input: 4 ... 20 MA /HART/RS485/Modbus
Signal Output: 24V DC
High Light:

Metallurgy RF Admittance Level Transmitter

,

Petrochemical RF Admittance Level Meter

,

20m RF Admittance Type Level Sensor

High Sensitivity RF Admittance Level Meter For Petrochemical Coal Metallurgy Water Industry





RF Admittance Level Meter Anit-Hanging Material interference Operating Principle



RF Admittance Level Meter is a continuously level measuring instrument based on the principle of radio frequency admittance. It provides the advantages of high stability and sensitivity. It is widely used in various complex applications. Comparing to traditional capacitive level meter, it adopts modulization design, and can be easily set up. After installation, it can keep working without maintenance.

Further more, by adding Driving-Shield and chopper circuit in RF Admittance tech, it can actualize separate measurement of impedance and capacitance. In this way, RF Admittance Level Meter can avoid being misguiding by hanging material affects during measurement process. That ensures the measuring accuracy.

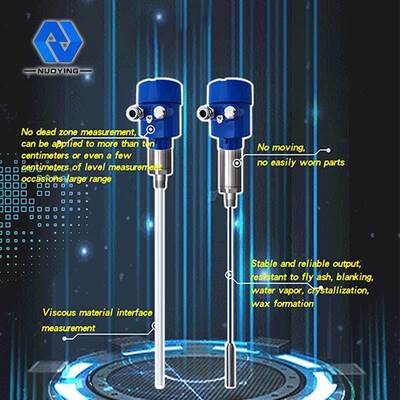

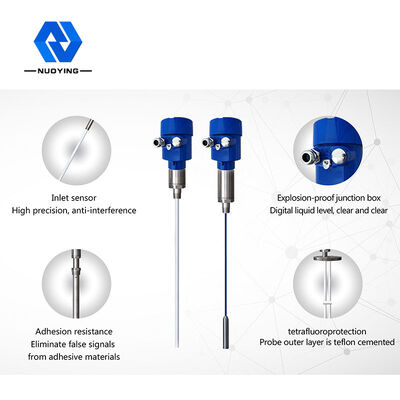

RF Admittance Level Meter design feature



  • Anti Hanging Material: Special designed Driving- Shield and chopper circuit to improve the ability of anti-hanging material situation.
  • Power Supply: Working range 13~24V DC
  • Adaptability: Probe process temperature: -100℃~800℃
                         No dead zone in measuring.  Maximum measurement range up to 100 meters, or further, even several hundred meters.
  • Huge advantage in measuring sticky material level.
  • Stability: Reliable and Stable output, withstand the effects of dust, blanking, steam, crystallization and wax deposit.
  • Maintenance Free: No moving and wear parts, no need to be frequently cleaned, maintained or debugged.

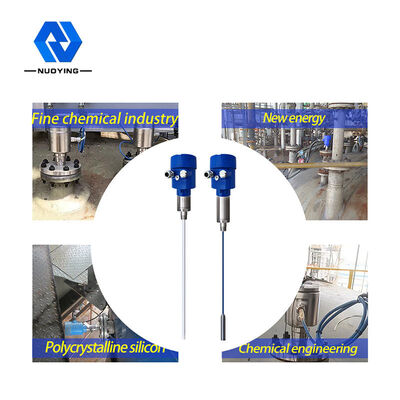

Typical Application Liquid (Corrosive,Conductive, Electrodeionization Sticky, Deep Well, Ultra-long measurement range)

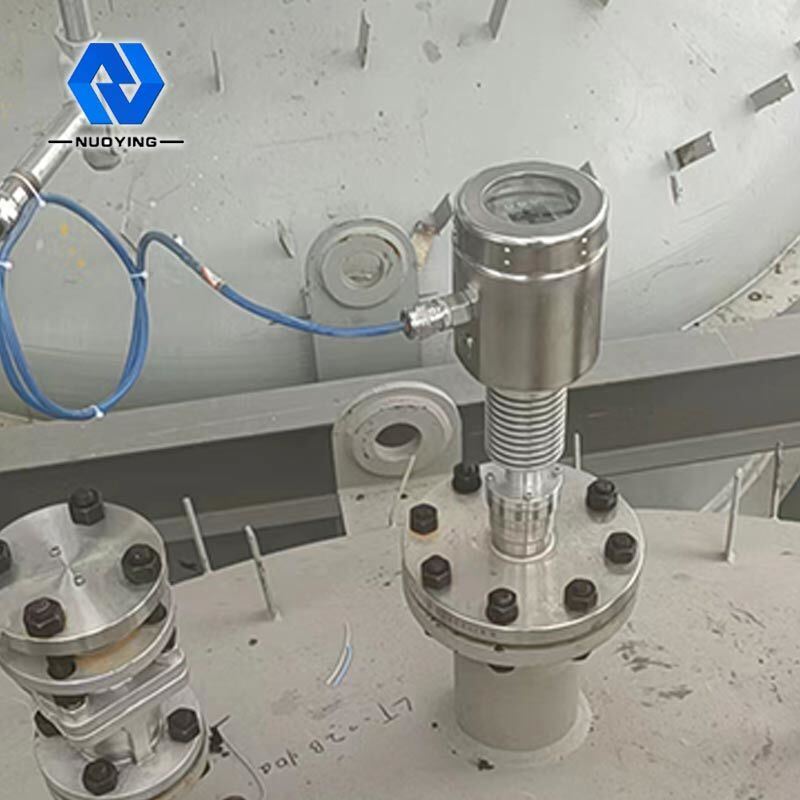

Split installation
Product Model NYSP-Z16
Antenna Type Insulative Hard Rod (PTFE optional)
Antenna Material PTFE, 304, 316
Measuring Range 3m, 20m (customized)
Measuring Accuracy 0.05% ~0.1%F.S
Process Temperature -40 ~ +260°C
Process Presure -0.1 ~ 4.0MPa
Process Connection 3/4”BSPT Strew Thread, Flange (optional)
Electrical Interface M20 x 1.5, 1/2" NPT
Supply Power 24VDC
Signal Output 4-20 mA /HART/RS485/Modbus
Protection Grade IP67
Explosion-proof Grade Exia II CT6 (optional, details in certificate)



Note: Products can be customized upon requirement.
