Product Details:
|
| Typical Application: | Liquid Level Measurement,etc. | Product Model: | NYCFQ-UL、NYCFQ-UK |
|---|---|---|---|
| Float Material: | F4、PP、304、PTFE(optional) | Rod Length: | 200~6000mm(Can Be Customized) |
| Ambient Temperature: | -40~+80℃ | Process Temperature: | -40~+130C |
| Process Pressure: | -0.1~2.0MPa | Process Connection: | Thread,flange(optional) |
| High Light: | Radar Water Level Transmitter,6000mm Radar Liquid Level Sensor,F4 Water Radar Level Sensor |
||

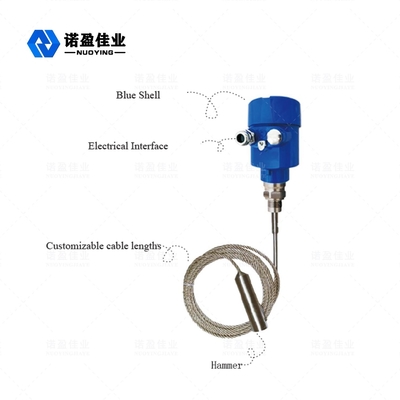

Radar Water Level Sensor Transmitter,Level Sensor For Water
Radar level sensor emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.
Working principle
Because of the high propagation speed of electromagnetic wave, the time interval between transmitting pulse and receiving pulse is small (nanosecond magnitude).The time interval between the transmitting pulse and the receiving pulse can be accurately identified by using a special correlation solution technology in the 26G series radar object level meter, so as to further calculate the distance between the antenna and the surface of the medium under test.
The radar object level meter USES a transmission frequency up to 26GHZ, and thus has:
-- small beam Angle, concentrated energy, stronger anti-interference capability, greatly improving measurement accuracy and reliability;
-- small antenna size, convenient installation and installation of antenna protection devices such as dust cover;
-- the measurement blind area is smaller, and good results will be achieved for small tank measurement.
-- shorter wavelength, more suitable for material level measurement of small particulate matter.
-- advanced microprocessor and unique EchoDiscovery echo processing technology are adopted, and radar object level meter can be applied in various complex working conditions.
-- using pulse operation mode, radar object level meter has very low transmitting power and can be installed in all kinds of metal and non-metal containers, which is harmless to human body and the environment.
Application:
-Power plant: coal pile, the original coal bunker, fuel tanks, reservoirs, waste gas purification tank, warehouse pumps, ash library, fuel tanks, etc.
-Oil field: crude oil or refined oil storage tank, three - phase separator, settling tank, sewage tank and oil - water interface, drilling mud tank;
-Chemical: crude oil distillation tower, raw materials and intermediate silos, reaction tanks, ammonia tanks, solid silos, separators, etc .;
-Metallurgical: ore silo, ore grinder, raw materials warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank;
-Cement: stone warehouse, raw silo, cement warehouse, coal warehouse, slag storage bin;
-Water treatment: reservoirs, sewage tanks, water treatment tanks, sedimentation tanks, deep wells, drinking water networks;
-Paper: raw materials warehouse, storage tower, drying drum, chemical materials storage warehouse, etc.
-Other: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries;
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Technical parameter
| Typical application | Liquid level measurement,etc. |
| Product model | NYCFQ-UL,NYCFQ-UK |
| Float material | F4,PP,304,PTFE(optional) |
| Rod length | 200~6000mm(Can be customized) |
| Ambient temperature | -40~+80℃ |
| Process temperature | -40~+130C |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread,flange(optional) |
| Medium viscosity | ≤0.05Pa·S |
| Medium density | 0.5~2.0g/cm³ |
| Signal output | 4-20mA,SPDT |
| Protection grade | IP65,IP67,IP68 |
| Explosion-proof grade | Exd ⅡCT6 Gb(see the certificate) |
| www.china-nyjy.com | |
Company Information
Shaanxi Nuoying Automation Instruments Co., Ltd. is a high-tech cooperation with the professional research and development, production, sales of industrial automation instruments and provide solutions for the company.We has an experienced, strong R & D ability, stable core personnel team.
Nuoying has more than 80 people, including 5 professors, 20 graduate students, more than 80% of the members have bachelor's degree or above. At present, we has established long-term technical cooperation with HIT, XD, 20, West University of Technology, West Post and other universities and scientific research institutions
Packing & Shipping
♦ Remarks: Products can be customized according to your specific requirements!
For more product details, please contact me! Thank you~
