Thread Flange RF Capacitance Liquid Level Meter 6m 20m

Description
Typical Application: Specially For Stronge Corrosive Liquid Product Model: NYCSUL-501
Installation Method: Thread,Flange Measuring Range: 6m, 20m
Antenna Material: PTFE, 304, 316 Process Temperature: -184 ~ +260°C
Process Pressure: -0.1 ~ 1.6MPa Signal Output: 4-20 MA /HART/RS485/Modbus
High Light:

RF Capacitance Liquid Level Meter

,

20m Liquid Level Meter

,

Flange Liquid RF Admittance Level Transmitter

High Stability And Reliability RF Capacitance Liquid Level Meter For Various Liquid Applications





Multiple Probe Types And Materials RF Capacitance Liquid Level Meter Easy To Be Installed Operating Principle



Based on RF capacitance technology. Apply a radio frequency to the probe, determine the affects of the surrounding environment through continuous analysis. Because each material has its own dielectric constant, and they are different from the air’s conductivity. When the probe contacts the material, the total impedance reflected by the small capacitance shift changes. Because the energized probe and the container wall form together like a capacitor, the probe insulator and the surrounding air become dielectric materials. When the air (dielectric constant is 1.0) is replaced by other material (dielectric constant>1.0), the change of capacitance value changes the impedance. This effect is measured by the circuit and then compared with the reference data established by the sensitivity setting (circuit).



Thread Flange RF Capacitance Liquid Level Meter 6m  20m 0

Further more, by adding Driving-Shield and chopper circuit in RF Admittance tech, it can actualize separate measurement of impedance and capacitance. In this way, RF Admittance Level Meter can avoid being misguiding by hanging material affects during measurement process. That ensures the measuring accuracy.



RF Capacitance Liquid Level Meter Design Feature



Integrated modular converter and sensor, no moving parts, high reliability and strong anti-interference ability

Wider applicability, with multiple probe forms, multiple process connection forms, and multiple fabrication materials, also can be customized

Easy to Install and debug, convenient to maintain.



RF Capacitance Liquid Level Meter Technical Parameter



Typical Application Liquid, Specially for Stronge Corrosive Liquid
Product Model NYDR-3051

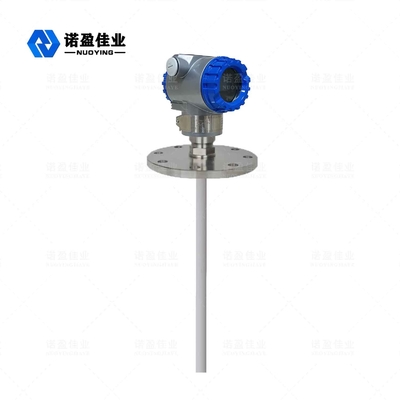

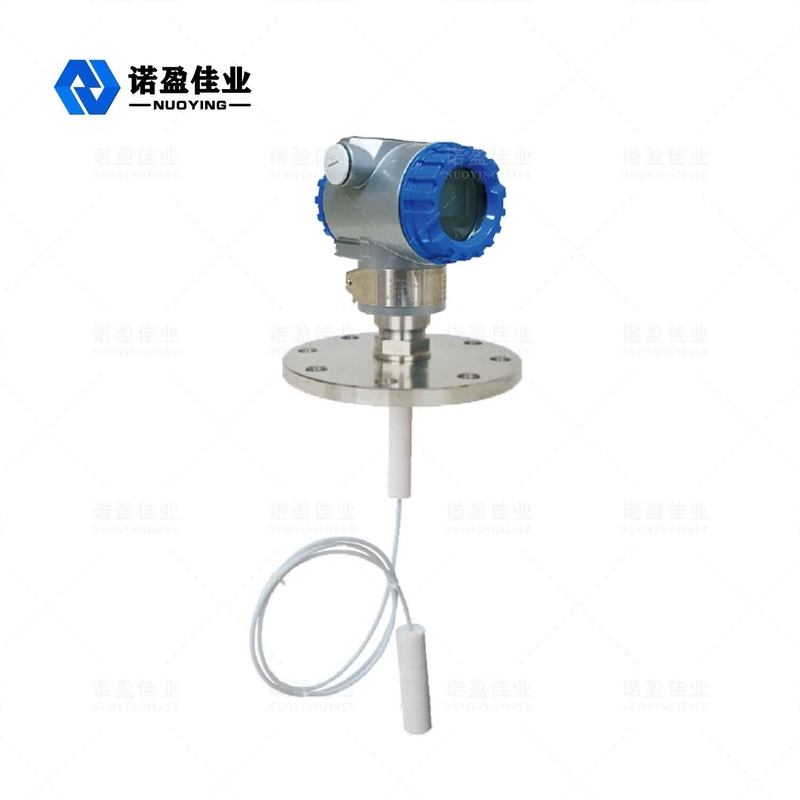

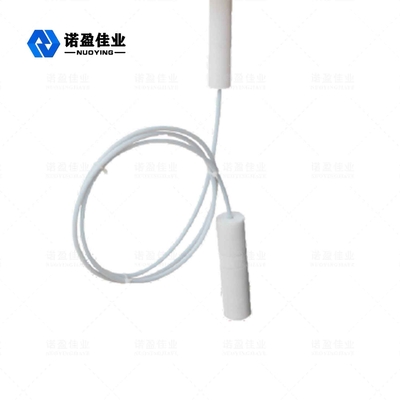

Antenna Type Soft Cable, Hard Rod.
Antenna Material PTFE, 304, 316
Measuring Range 6m, 20m
Time Delay 0~30s continuous Adjustable
Process Temperature -184 ~ +260°C
Process Pressure -0.1 ~ 1.6MPa
Process Connection Thread, Flange
Electrical Interface M20 x 1.5, 1/2" NPT
Supply Power 24VDC
Signal Output 4-20 mA /HART/RS485/Modbus
Protection Grade IP65, IP67, IP68(optional)
Explosion-proof Grade Exia II CT6 Ga, Exd II CT6 Gb (details in certificate)


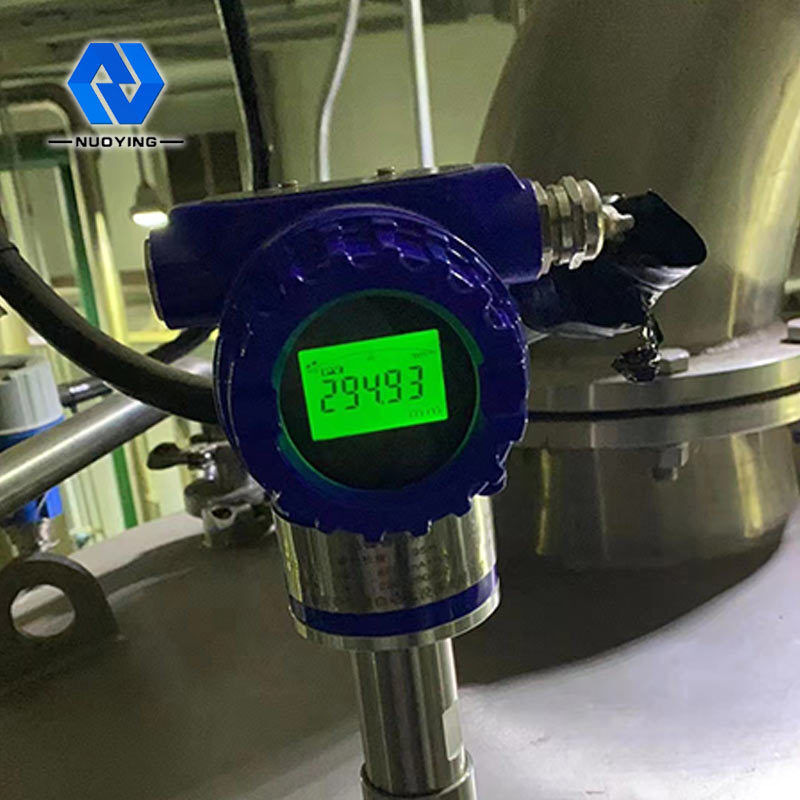

RF Capacitance Liquid Level Meter Product Application



Capacitive level meter can be used for continuous level measurement ofalmost all strong, weak, or non corrosive media in open or pressure vessels. Widely used in: Petroleum,Chemical,Fertilizer, Metallurgy, Natural Gas, Power Plant, Machinery ,Manufacturing, Pharmaceutical Factory, Sewage Treatment, Food and other industrial occasions of liquid level detection and control.
