Product Details:
|
| Caliber: | 300 - 3000 Mm | Speed Range Of The Flow Rate: | 0 . 1～10 M/ S |
|---|---|---|---|
| Electroconductibility: | > 50μs/ Cm | Medium Temperature: | - 20℃ ～+ 130℃ |
| Ambient Temperature: | - 20℃ ～+ 60℃ | Withstand Voltage: | 1 . 6 Mpa |
| Levels Of Protection: | IP 65, IP 68 | Electrode Material: | 316 L Stainless Steel |
| High Light: | Corrosive Liquid Electromagnetic Flow Meter,IP65 Insertion Electromagnetic Flow Meter,Cement Insertion Flow Meter |
||
Cement Corrosive Liquid Water Measuring IP65 Insertion Electromagnetic Flow Meter

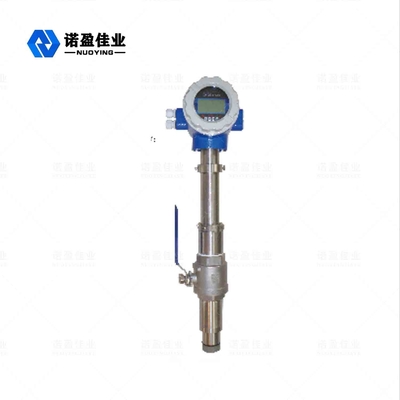

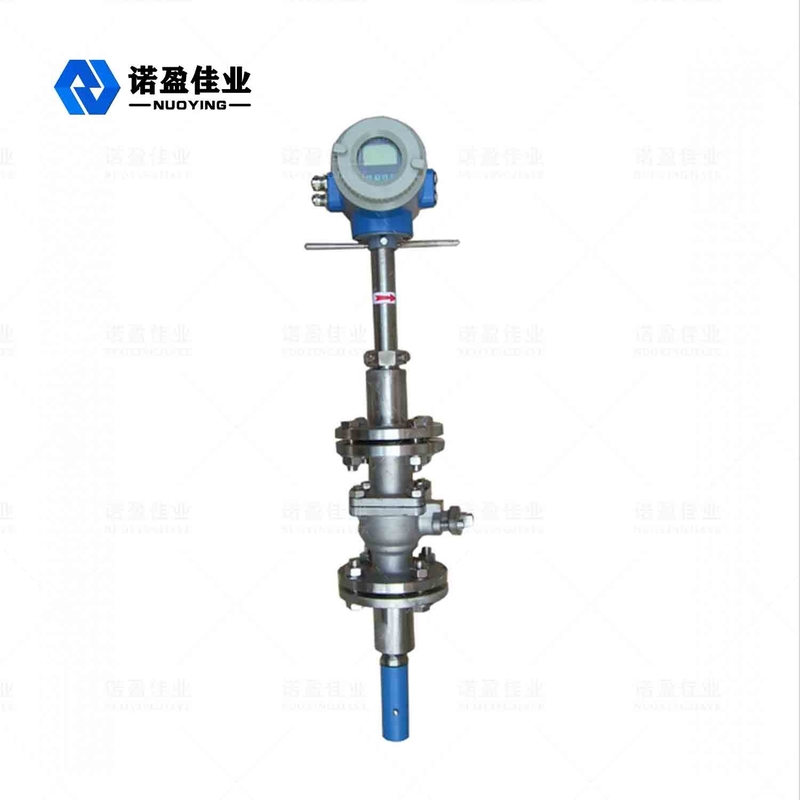

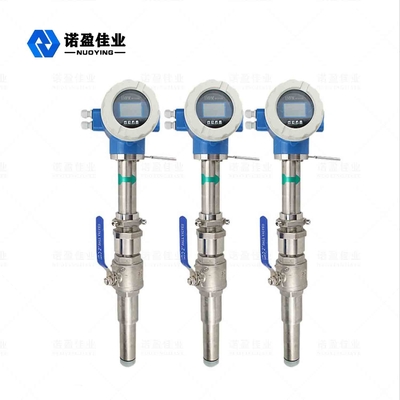

Plug-In Insertion Type Electromagnetic Insertion Flow Meter
NYLL-CR plug-in electromagnetic flow meter is a new flow meter developed on the basis of pipeline electromagnetic flow meter. In the pipeline flow detection, the installation is simple, can constantly flow, the site can take the pressure open hole, with absolute installation advantages and price advantages. It retains the advantages of pipeline electromagnetic flowmeter, aiming at the difficult installation and large cost on the pipeline, according to Nikura magnetic (NIKURADS) Principle, the average flow rate of the fluid is measured to obtain the volume flow of the fluid.
It is suitable for liquid flow detection with water, sewage, acid, strong alkali conductivity above 20cm. The change of conductivity does not affect the change of performance, and strongly adapt to the complex changes of fluid, especially for the flow measurement of water supply and drainage pipes. Especially after the use of the pressure opening hole and pressure installation technology, the plug-in electromagnetic flow meter can be installed without stopping water, or on the cast iron pipe and cement pipe. It is only related to the insertion depth, so it is widely versatile and has strong interchangeability.One type can be applicable to the fluid measurement requirements for various specifications of piping.The range automatic switch function.When the flow meter changes in the flow range, the flow range can be automatically switched to ensure the accurate measurement within the full flow range. The successful development of the plug-in electromagnetic flowmeter provides a new method for fluid flow detection.
The plug-in type, like the pipeline flange electromagnetic flowmeter, works according to Faraday's law of electromagnetic induction.
Plug-In Insertion Type Electromagnetic Insertion Flow Meter Technical Parameters
| Caliber | 300~ 3000 mm |
| Speed range of the flow rate | 0 . 1～10 m/ s |
| Precision |
0 . 1～0 . 5 m/s: ±2 . 0 % FS 0 . 5～10 m/ s: ±1 . 5 % FS 0 . 1～10 m/ s: ±2 . 5 % FS |
| Electroconductibility | > 50μs/ cm |
| Straight pipe section | anterior 5 DN ; posterior 3 DN |
| Medium temperature | - 20℃ ～+ 130℃ |
| Ambient temperature | - 20℃ ～+ 60℃ |
| Withstand voltage | 1 . 6 Mpa |
| Levels of protection | IP 65, IP 68 |
| Electrode material | 316 L stainless steel |
| Output signal | 4 - 20 m A；RS 485；HART protocol；MODBUS protocol |
| Sensor material | stainless steel |
| Operational principle |
220 VAC, tolerance15 % 24 VDC, ripple wave≤5 % |
| Capacity factor | 6 . 5 W |
| Pressure resistance level | ≤1 . 6 Mpa |
