Product Details:
|
| Typical Application: | Conductive Liquid, Conductive Solid Powder | Antenna Material: | Insulated Rigid Rod PTFE/304（optional） |
|---|---|---|---|
| Power Supply: | 24 VDC | Medium Temperature: | -40~+140℃ |
| Process Pressure: | -0.1 ~ 4.0MPa | Procedure Linkage: | 3/4 BSPT Thread, Flange(optional) |
| Levels Of Protection: | IP 67 | Signal Output: | 4...20mA/HART/ RS485/Modbus…. |

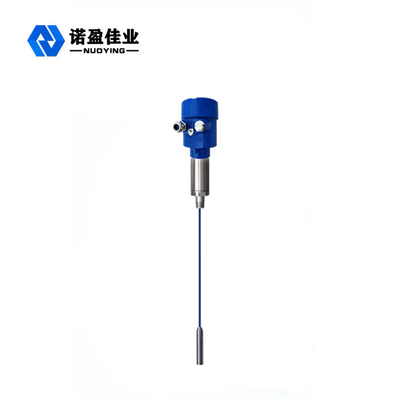

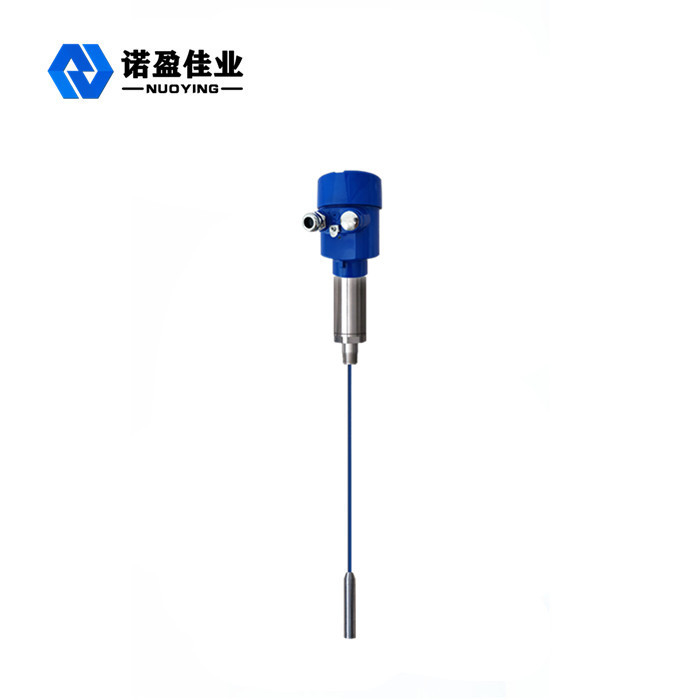

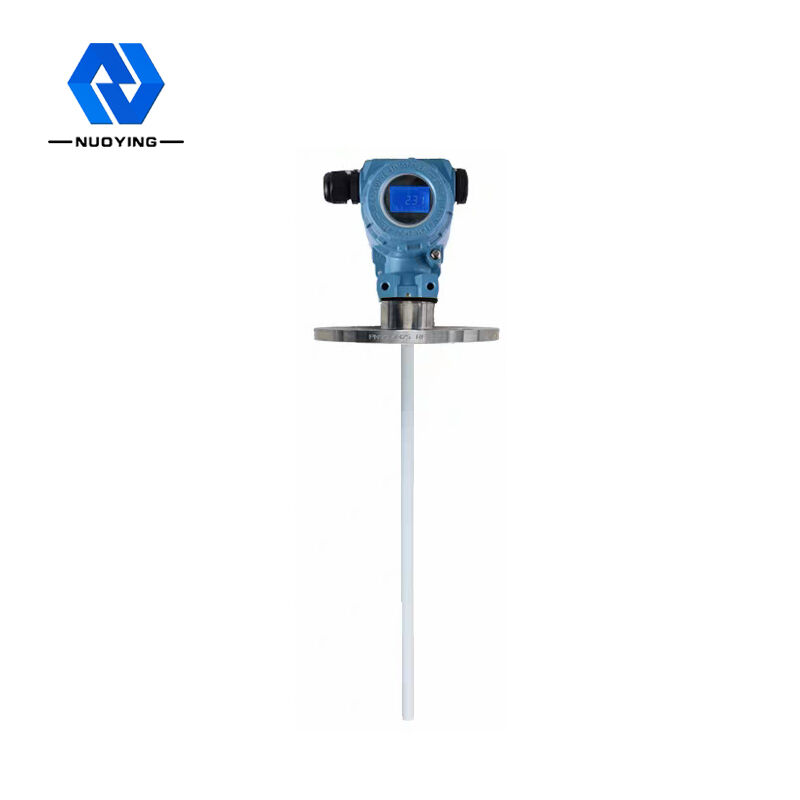

NYSP-M17 High Sensitivity RF Admittance Level Transmitter With Unique Driving Shield Circuit Design
The working Principle of NYSP-M17 High Sensitivity RF Admittance Level Transmitter With Unique Driving Shield Circuit Design
Radiofrequency admittance measurement technology is a level measurement technology with unique advantages. Although similar in concept to general capacitive measurement technology, RF admittance technology incorporates Driving-shield circuits and chopper circuits into the electronic unit, thus enabling separate measurements of impedance and capacitance. It can be calculated by the laws of physics that the impedance and the capacitance of any hanging material are the same, so the effect of the hanging material can be measured and eliminated from the total output by the phase shift of the oscillation circuit.
Design features of NYSP-M17 High Sensitivity RF Admittance Level Transmitter With Unique Driving Shield Circuit Design
◎ anti hanging: the unique driving shield circuit design improves the anti hanging ability
◎ power supply range: power supply working range: 13 ~ 35vdc
◎ probe process temperature: - 100 ℃ ~ 800 ℃
◎No dead zone measurement, can be applied to a large range of material level measurement occasions of more than ten centimeters or even several centimeters
◎The maximum measuring range can reach hundred meters, even hundreds of meters
◎Viscous material interface measurement is a great advantage of this instrument
◎stable and reliable output, resistant to fly ash, falling material, water vapor, crystallization and wax
◎no movement, no parts easy to wear, no regular cleaning, maintenance and debugging
Technical parameters of NYSP-M17 High Sensitivity RF Admittance Level Transmitter With Unique Driving Shield Circuit Design
| Typical application | Liquid(Corrosion, conductivity, low dielectric constant, stirring, interface, electric dehydration, viscosity, deep well, ultra large range and other occasions) |
| Dust (conductivity, insulating powder, etc.) | |
| Solid (conductivity, insulating, ultra-high temperature insulating solid, etc.) | |
|
product model
|
NYSP-M16 NYSP-M17 NYSP-M18 NYSP-M19 NYSP-M20 NYSP-M21 NYSP-M22 NYSP-M23 NYSP-M24 |
|
Antenna form
|
Soft cable, insulated soft cable, non insulated soft cable, hard rod, insulated hard rod, insulated hard rod at both ends, cylindrical hard rod |
| Antenna Material | PTFE,304,316 |
| measuring range | 3m, 20m(Deep well can measure hundreds of meters and can be customized) |
| Wavelength | 635-650mm |
| Measurement precision | 0.05%~0.1%F.S |
| Power supply | 24VDC |
|
signal output |
4...20mA/HART/ RS485/Modbus…. |
| Process temperature | -40~+130℃,-100~+200℃, -40~+260℃, -50~+500℃ |
| Process pressure |
-0.1~1.6MPa,-0.1~4.0MPa, -0.1~6.3MPa |
| Process connection | screw thread,flange(selectable) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
