Product Details:
|
| Typical Application: | Insulating Solid, Insulating Liquid | Antenna Material: | Non-Insulated Rigid Rod PTFE/304（optional） |
|---|---|---|---|
| Power Supply: | 24 V D C | Medium Temperature: | -40~+200℃ |
| Process Pressure: | -0.1 ~ 8.0MPa | Procedure Linkage: | 1 BSPT Thread, Flange(optional) |
| Levels Of Protection: | IP 6 7 | Signal Output: | 4...20mA / HART / RS485 / Modbus…. |
| High Light: | Rigid Rod RF Admittance Level Transmitter,Solid RF Level Sensor,Liquid RF Level Transmitter |
||

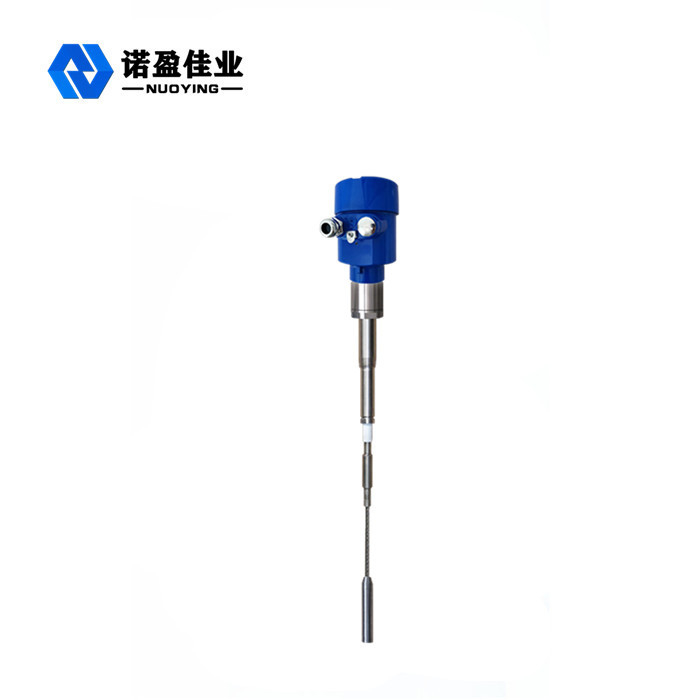

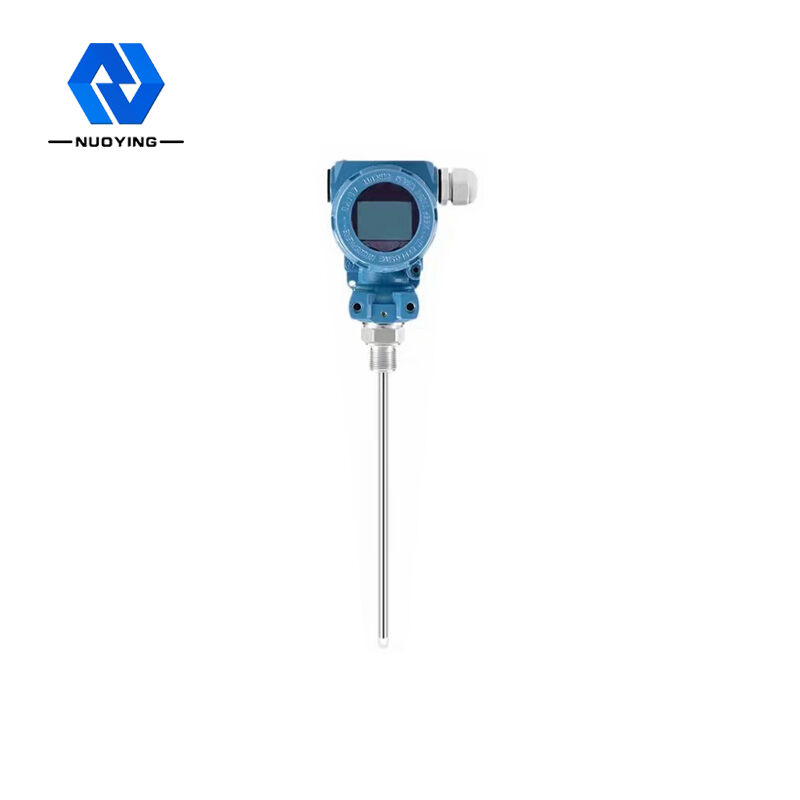

NYSP-M18 Free Maintenance RF Admittance Level Transmitter With Wide Application
The working Principle of NYSP-M18 Free Maintenance RF Admittance Level Transmitter With Wide Application
The probe of the radio frequency admittance level meter is installed in the storage tank, and the change of the radio frequency signal caused by the change of the level is obtained through the probe. The driving shield end of the probe can prevent RF current from passing through the hanging material to form a loop, thus ensuring the accuracy of instrument measurement.
Design features of NYSP-M18 Free Maintenance RF Admittance Level Transmitter With Wide Application
◎ anti hanging: the unique driving shield circuit design improves the anti hanging ability
◎ power supply range: power supply working range: 13 ~ 35vdc
◎ probe process temperature: - 100 ℃ ~ 800 ℃
◎No dead zone measurement, can be applied to a large range of material level measurement occasions of more than ten centimeters or even several centimeters
◎The maximum measuring range can reach hundred meters, even hundreds of meters
◎Viscous material interface measurement is a great advantage of this instrument
◎stable and reliable output, resistant to fly ash, falling material, water vapor, crystallization and wax
◎no movement, no parts easy to wear, no regular cleaning, maintenance and debugging
Technical parameters of NYSP-M18 Free Maintenance RF Admittance Level Transmitter With Wide Application
| Typical application | Liquid(Corrosion, conductivity, low dielectric constant, stirring, interface, electric dehydration, viscosity, deep well, ultra large range and other occasions) |
| Dust (conductivity, insulating powder, etc.) | |
| Solid (conductivity, insulating, ultra-high temperature insulating solid, etc.) | |
|
product model
|
NYSP-M16 NYSP-M17 NYSP-M18 NYSP-M19 NYSP-M20 NYSP-M21 NYSP-M22 NYSP-M23 NYSP-M24 |
|
Antenna form
|
Soft cable, insulated soft cable, non insulated soft cable, hard rod, insulated hard rod, insulated hard rod at both ends, cylindrical hard rod |
| Antenna Material | PTFE,304,316 |
| measuring range | 3m, 20m(Deep well can measure hundreds of meters and can be customized) |
| Wavelength | 635-650mm |
| Measurement precision | 0.05%~0.1%F.S |
| Power supply | 24VDC |
|
signal output |
4...20mA/HART/ RS485/Modbus…. |
| Process temperature | -40~+130℃,-100~+200℃, -40~+260℃, -50~+500℃ |
| Process pressure |
-0.1~1.6MPa,-0.1~4.0MPa, -0.1~6.3MPa |
| Process connection | screw thread,flange(selectable) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
