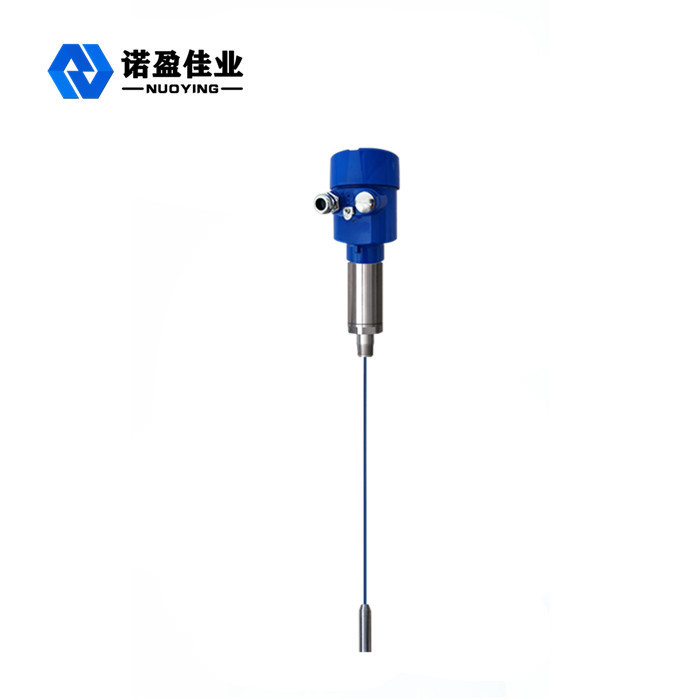

HART Protocol Radio Frequency Capacitance Level Gauge Custom Probe Length

Name: HART Protocol Radio Frequency Capacitance Level Gauge Custom Probe Length
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYSP-M20
Price: 600.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NYSP-M20
MOQ:	1 pc
Price:	$400~$800/pc
Payment Terms:	T/T
Supply Ability:	1000 pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi，China

Certification:

Typical Application:

Deep Well, Large Range

Antenna Material:

Flexible Cables 304（optional）

Power Supply:

24 VD C

Medium Temperature:

-40~+ 150℃

Process Pressure:

-0.1 ~ 1.6 MPa

Procedure Linkage:

3/4 B S P T Thread, Flange(optional)

Levels Of Protection:

I P67

Signal Output:

4... 20mA / RS485

Packaging Details:

Carton, 60cm×30cm×30cm

Supply Ability:

1000 pcs/month

Highlight:

IP67 RF Admittance Level Sensor

Flexible Cables 304 RF Level Transmitter

Product Description

Nuoying NYSP-DR Radio Frequency Capacitance Level Meter Overview

Product Parameters

HART Protocol Radio Frequency Capacitance Level Gauge Custom Probe Length 0

Typical application	Liquid, corrosive liquid
Probe material	304, PTFE, 316 (optional)
Power supply	24VDC
Operation temperature	-40 ~ +130℃, -184 ~ +260℃
Antenna form	Cable type, pole type
Working pressure	-0.1~1.6MPa
Process connection	Thread, flange (optional)

Products Description

NYSP-DR RF Capacitor Level Meter Working Principle

The RF capacitance level meter works on the basis of radio frequency (RF) capacitance technology. A radio frequency is applied to the probe and the effect caused by the surrounding environment is determined by continuous analysis. Since all materials have a dielectric constant and their conductivity is different from that of air, the total impedance reacted to by small capacitance shifts changes when the probe is in contact with the material. Because the energized probe and the vessel wall form the two pole plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, and when air (dielectric constant of 1.0) is replaced by any other material (dielectric constant >10), the change in capacitance value causes a change in impedance. This effect is measured by the circuit and then compared with the reference reference frame established by the sensitivity setting (circuit).

NYSP-DR RF Capacitor Level Meter Design Feature

1. Modular converter and sensor integration, no moving parts, high reliability, strong anti-interference capability.
2. Wider applicability, a variety of probe forms, a variety of process connection forms, a variety of production materials, can be customized design.
3. Extremely easy to install, debug and maintain.
