Product Details:
|
| Caliber: | 300 - 3000 Mm | Speed Range Of The Flow Rate: | 0 . 1～10 M/ S |
|---|---|---|---|
| Electroconductibility: | > 50μs/ Cm | Medium Temperature: | - 20℃ ～+ 130℃ |
| Ambient Temperature: | - 20℃ ～+ 60℃ | Withstand Voltage: | 1 . 6 Mpa |
| Levels Of Protection: | IP 65, IP 68 | Pressure Resistance Level: | ≤1.6 Mpa |
| High Light: | Corrosion Resistant Electromagnetic Flow Meter 3000mm,Plug In Electromagnetic Flow Transmitter,NYLL-CH Electromagnetic Flow Meter |
||
Slurry Cement Corrosive Liquid Water 4-20ma Plug-In Insertion Type Electromagnetic Insertion Flow Meter
NYLL-CH Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Corrosion Resistant
NYLL-CR series intelligent electromagnetic flowmeter is a new generation of fully intelligent flowmeter developed by our company based on Faraday electromagnetic induction principle. High definition backlit LCD display, which can simultaneously display instantaneous flow, cumulative flow, flow percentage, flow rate, etc.The electromagnetic flowmeter can not only measure the volume flow of conductive liquid, but also measure the volume flow of corrosive liquid such as strong acid and alkali, and even liquid-solid twophase suspension liquid such as mud, pulp and pulp.Corrosion resistant all stainless steel ABS mold production probe simple structure, firm, no moving parts, long service life. It is widely used in the fields of petroleum, chemical industry, metallurgy, textile, pharmacy, food and beverage, paper making, electric power, urban water supply and drainage and environmental protection.Compared with the general electromagnetic flowmeter, the manufacturing cost and installation cost is low, especially suitable for large and medium diameter pipeline flow measurement.
Plug-In Insertion Type Electromagnetic Insertion Flow Meter Technical Parameters
| Caliber | 300 - 3000 mm |
| Speed range of the flow rate | 0 . 1～10 m/ s |
| Precision |
0 . 5～10 m/ s:±1 . 5 % FS; 0 . 1～0 . 5 m/ s:±2 . 0 % FS 0 . 1～10 m/ s:±2 . 5 % FS (FS refers to 40% to 100% full range flow) |
| Electroconductibility | > 50μs/ cm |
| Straight pipe section | anterior 5 DN, posterior 3 DN |
| Medium temperature | - 20～+ 130℃ |
| Ambient temperature | - 20 ～+ 60℃ |
| Withstand voltage | 1 . 6 Mpa |
| Levels of protection | IP 68 |
| Electrode material | 316 L |
| Output signal | 4 - 20 m A；HART protocol； |
| Sensor material | stainless steel |
| Operational principle | 220 VAC, tolerance15 % 24 VDC, ripple wave≤5 % |
| Capacity factor | 6.5W |
| Pressure resistance level | ≤1.6 Mpa |

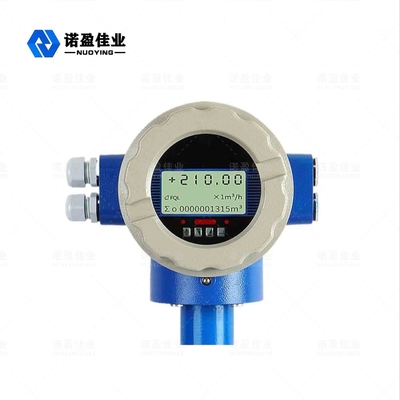

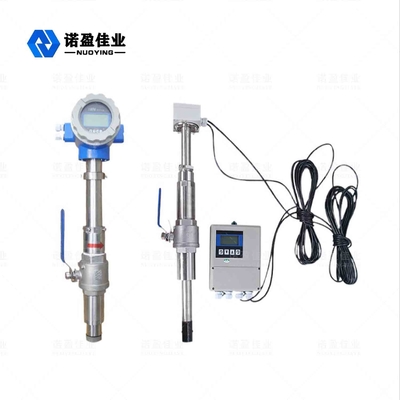

All-in-one type(As shown in the figure: left)
The electromagnetic flowmeter converter adopts a novel excitation method, which has low power consumption, stable zero point and long service life.

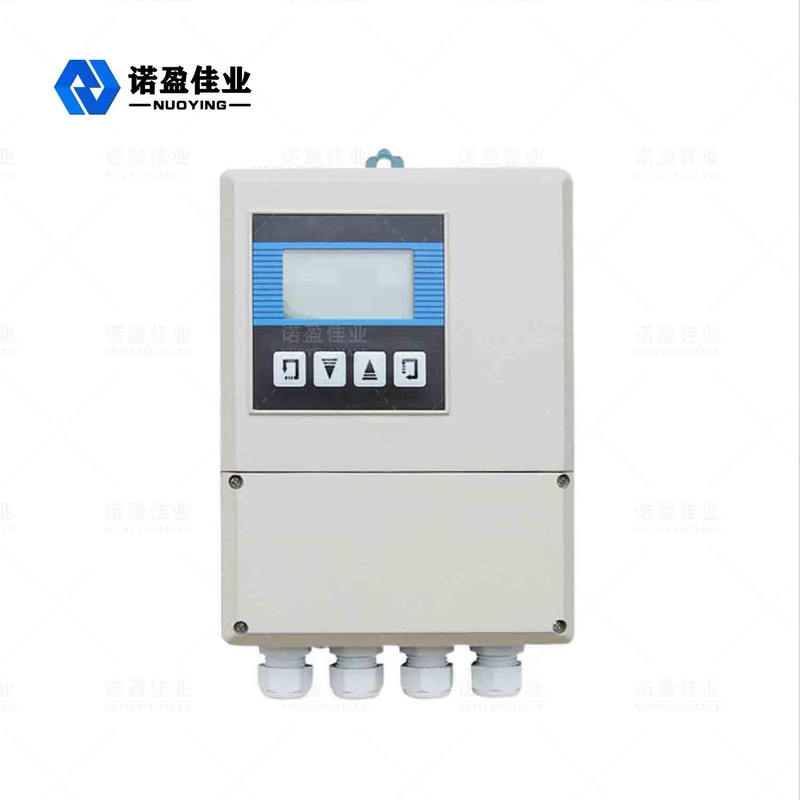

Split type(As shown in the figure: right)
In addition to measuring the flow of general conductive liquids, the split electromagnetic flowmeter can also measure the volume flow of liquid-solid two-phase flow, high-viscosity fluids and salts, and strong acid and strong alkali liquids.
