Product Details:
|
| Typical Application: | Liquid In Strong Corrosion | Electrical Interface: | M 20×1.5 |
|---|---|---|---|
| Product Model: | NYRD701 | Antenna Form: | Cable Type, Rod Type(optional) |
| Antenna Material: | PTFE, 304(optional) | Echo Sampling: | 55times /s |
| Measuring Range Measurement Accuracy: | 30m / 0.05% ~ 0.1% F.S | Power Supply: | 24VDC,220VAC |
| High Light: | Corrosion Liquid Radar Level Meter,IP68 Radar Level Transmitter,Rod Type Radar Level Meter |
||

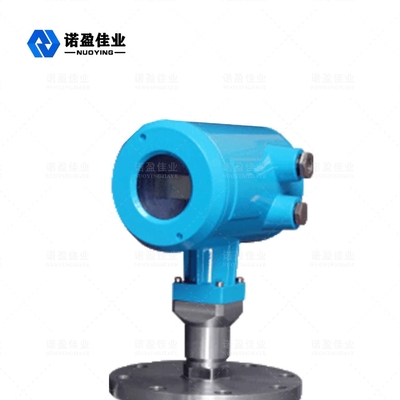

4.0Mpa Guided Wave Radar Level Meter For Strong Corrosion Liquid IP68
Working principle of 4.0Mpa Guided Wave Radar Level Meter For Strong Corrosion Liquid IP68
Guided wave radar level meter is a kind of microwave level meter, which is an application of microwave (radar) positioning technology. It transmits energy waves through a device that can emit energy waves (generally pulse signals). The energy waves are transmitted in the waveguide, and the energy waves are reflected when encountering obstacles. The reflected energy waves are transmitted by the waveguide to the receiving device, and then the receiving device receives the reflected signals. According to the time difference of the energy wave motion process, the change of object level is determined. Microwave signals are processed by electronic devices and finally converted into electrical signals associated with the object level.
Design features of 4.0Mpa Guided Wave Radar Level Meter For Strong Corrosion Liquid IP68
◎Guided wave radar object level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, contact measurement, high measurement accuracy, more accurate measurement. At the same time, guided wave radar is not affected by external environment such as medium temperature and adhesion.
◎The 70X series guided wave radar object level meter is suitable for various complex working conditions and applications due to the various process connection modes and detection module types. Such as: high temperature, high pressure and low dielectric constant medium.
◎Pulse working mode, low emission power, can be installed in a variety of metal, non-metal containers, no harm to human body and the environment.
Technical parameter of 4.0Mpa Guided Wave Radar Level Meter For Strong Corrosion Liquid IP68
| Typical application | Liquid (strong corrosion, low dielectric constant, adhesion, high temperature and high pressure, Built-in heating Coil, ladder, floating plate and other complex occasions) |
| Dust (fly ash, limestone powder, cement powder, concrete and other media) | |
| Solid (small particles, grain, gravel, sand and other media) | |
| Product model | NYRD701,NYRD702, NYRD703,NYRD704,NYRD705 |
| Antenna form | Cable type, rod type, double cable type, double rod type, wave guide tube type |
| Antenna material | PTFE, 304, 316 |
| Echo sampling | 55 times /s |
| Measuring range | 6m, 30 m |
| Measurement accuracy | 0.05% ~ 0.1% F.S |
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | -40~ +130°C, -40~ +250 °C,-40~ +500 °C |
| Process pressure | -0.1~2.0MPa,-0.1~4.0MPa |
| Process connection | Thread, bracket, flange, clamp (optional) |
| Electrical interface | M20×1.5 , ½ " NPT |
| Protection grade | IP 65, IP 67, IP 68 (optional) |
| Explosion-proof grade | ExiaIICT6Ga, ExdIICT6Gb(see certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
