Product Details:
|
| Typical Application: | Strong Stirring | Product Models: | NYSP-M23 |
|---|---|---|---|
| Antenna Form: | Insulated Hard Rod | The Antenna Material: | PTFE, 304, 316（optional） |
| Measuring Range: | 3M, 20M (can Be Customized As Well) | The Process Temperature: | - 100 ~ + 150 ° C |
| Process Connection: | Thread，flange (optional) | Explosion-proof Grade: | Exia II CT6 Ga(see Certificate For Details) |
| High Light: | 35VDC RF Admittance Level Transmitter,Stirring RF Admittance Level Transmitter |
||

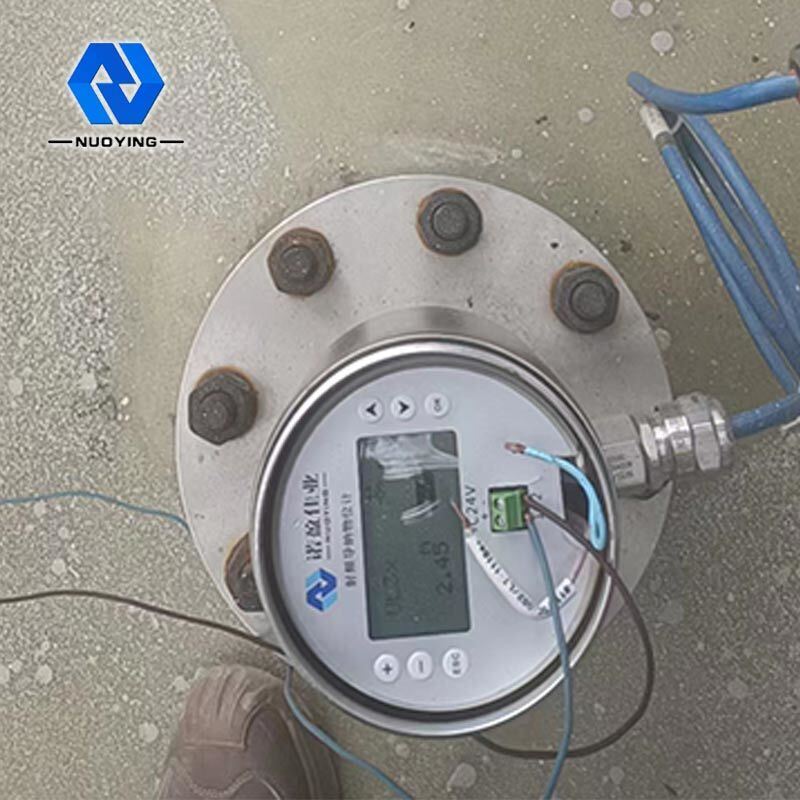

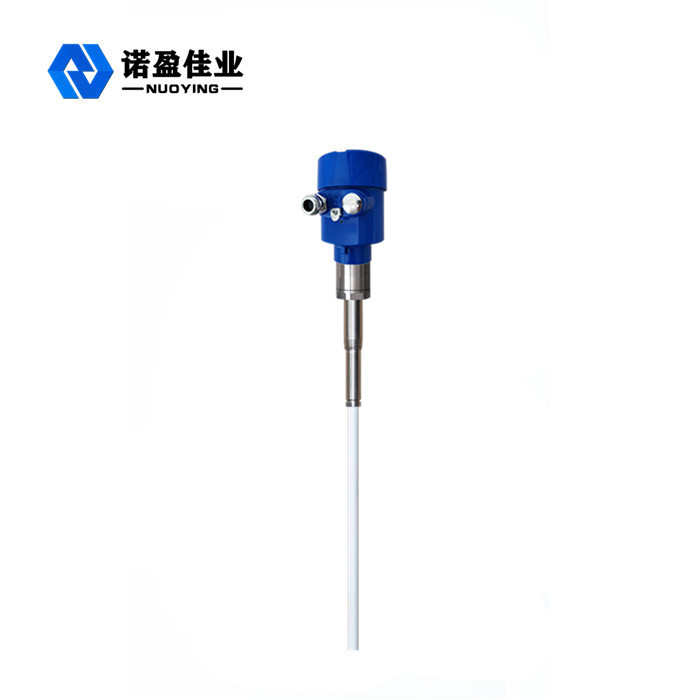

13~35VDC High Stability RF Admittance Level Transmitter Suitable For Strong Stirring Conditions
Working Principle of 13~35VDC High Stability RF Admittance Level Transmitter Suitable For Strong Stirring Conditions
Radio frequency admittance is a new type of level control technology developed from capacitive, anti-hanging, more reliable, more accurate and more applicable, and is an upgrade of capacitive level technology. The so-called radio frequency admittance means the inverse of the impedance in electricity. It is composed of resistive components, capacitive components, and inductive components, and radio frequency is the high-frequency radio spectrum. Therefore, radio frequency admittance can be understood as the use of high frequency. Radio waves measure admittance. When the meter is working, the sensor of the meter forms an admittance value with the filling wall and the measured medium. When the material level changes, the admittance value changes accordingly, and the circuit unit converts the measured admittance value into a level signal output to realize the level measurement.
Design Features of 13~35VDC High Stability RF Admittance Level Transmitter Suitable For Strong Stirring Conditions

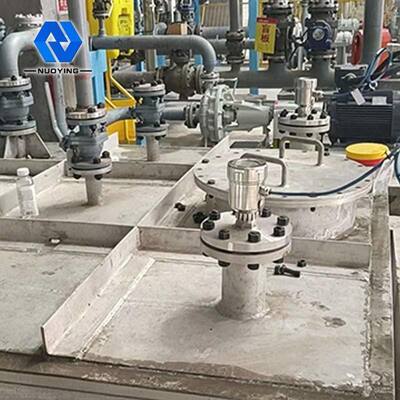

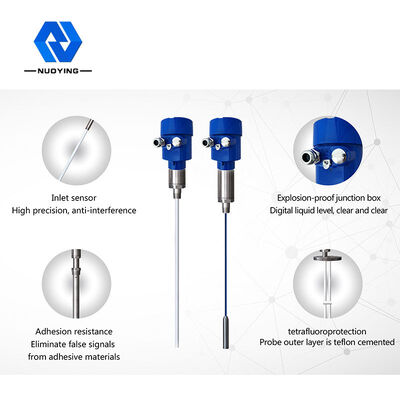

◎ anti hanging: the unique driving shield circuit design improves the anti hanging ability
◎ power supply range: power supply working range: 13 ~ 35vdc
◎ probe process temperature: - 100 ℃ ~ 800 ℃

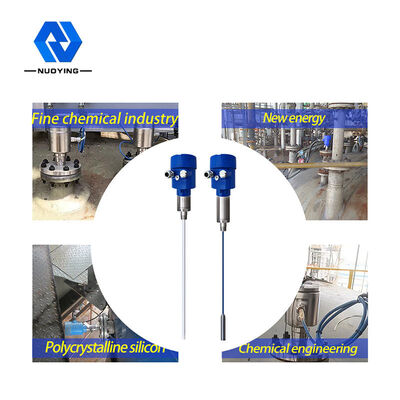

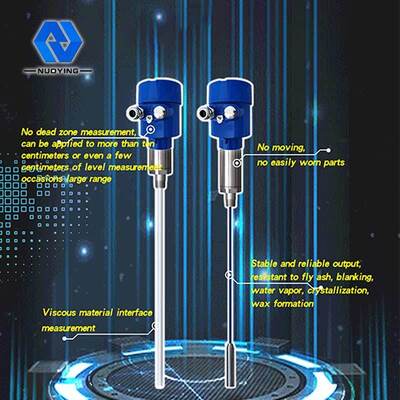

◎No dead zone measurement, can be applied to a large range of material level measurement occasions of more than ten centimeters or even several centimeters
◎The maximum measuring range can reach hundred meters, even hundreds of meters
◎Viscous material interface measurement is a great advantage of this instrument
◎stable and reliable output, resistant to fly ash, falling material, water vapor, crystallization and wax
◎no movement, no parts easy to wear, no regular cleaning, maintenance and debugging

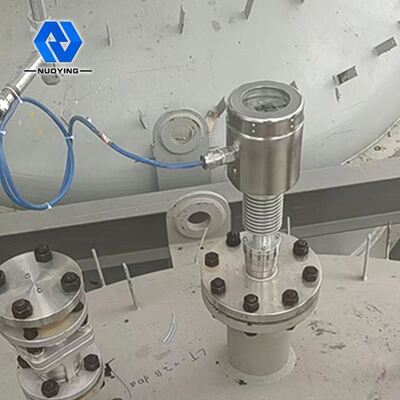

Technical Parameters of 13~35VDC High Stability RF Admittance Level Transmitter Suitable For Strong Stirring Conditions
| Typical application | Liquid(Corrosion, conductivity, low dielectric constant, stirring, interface, electric dehydration, viscosity, deep well, ultra large range and other occasions) |
| Dust (conductivity, insulating powder, etc.) | |
| Solid (conductivity, insulating, ultra-high temperature insulating solid, etc.) | |
|
product model
|
NYSP-M16 NYSP-M17 NYSP-M18 NYSP-M19 NYSP-M20 NYSP-M21 NYSP-M22 NYSP-M23 NYSP-M24 |
|
Antenna form
|
Soft cable, insulated soft cable, non insulated soft cable, hard rod, insulated hard rod, insulated hard rod at both ends, cylindrical hard rod |
| Antenna Material | PTFE,304,316 |
| measuring range | 3m, 20m(Deep well can measure hundreds of meters and can be customized) |
| Wavelength | 635-650mm |
| Measurement precision | 0.05%~0.1%F.S |
| Power supply | 24VDC |
|
signal output |
4...20mA/HART/ RS485/Modbus…. |
| Process temperature | -40~+130℃,-100~+200℃, -40~+260℃, -50~+500℃ |
| Process pressure |
-0.1~1.6MPa,-0.1~4.0MPa, -0.1~6.3MPa
|
| Process connection | screw thread,flange(selectable) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
