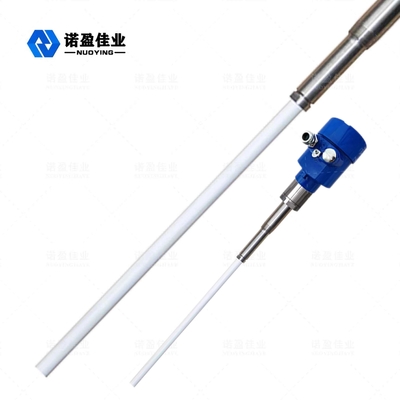

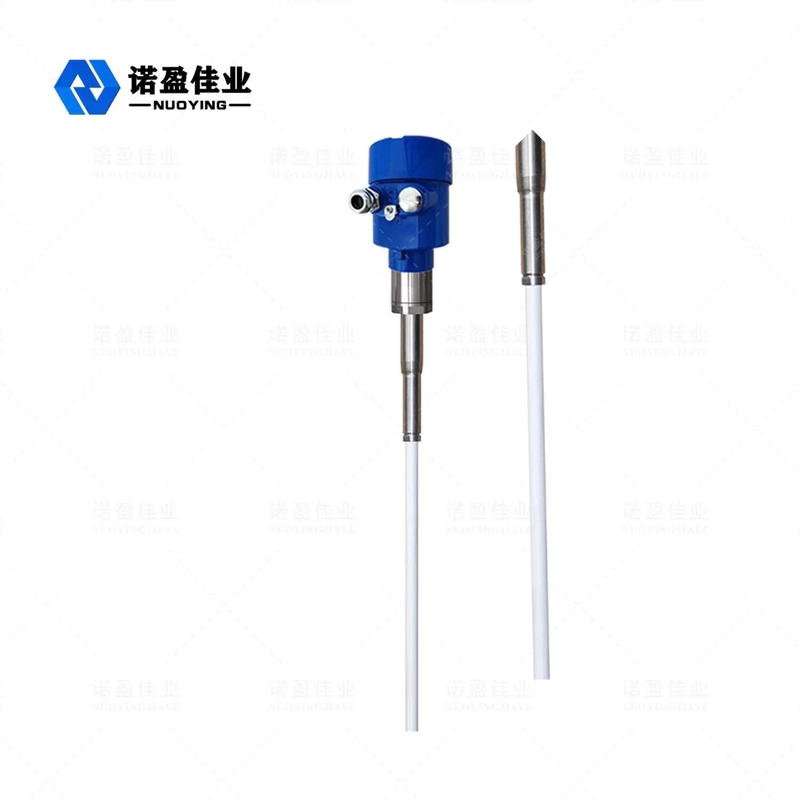

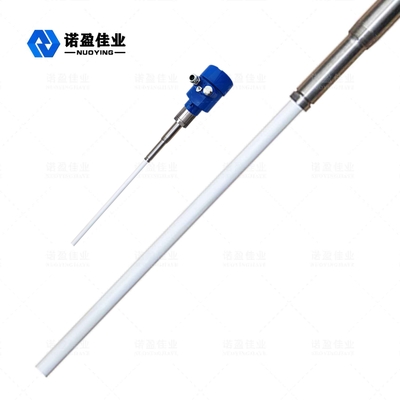

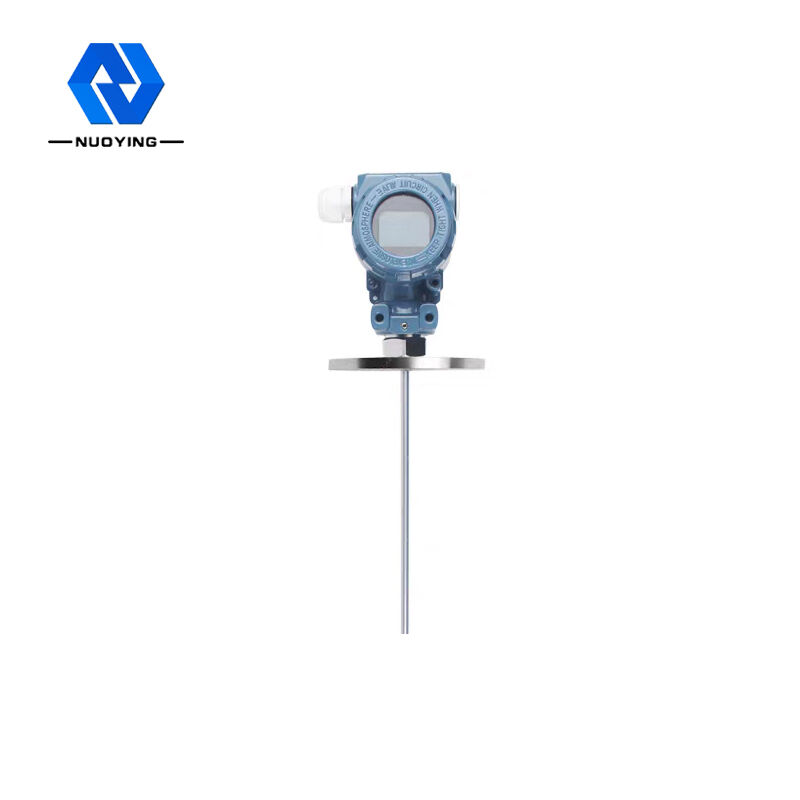

RF Resistance Capacitance Reactance Measured Separately Level Meter

RF Resistance Capacitance Reactance Measured Separately Level Meter
RF Resistance Capacitance Reactance Measured Separately Level Meter RF Resistance Capacitance Reactance Measured Separately Level Meter RF Resistance Capacitance Reactance Measured Separately Level Meter

Large Image :  RF Resistance Capacitance Reactance Measured Separately Level Meter

Product Details:
Place of Origin: Xi'an Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-M23
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $503.778/pcs
Packaging Details: Carton,Export Standard Packaging
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

RF Resistance Capacitance Reactance Measured Separately Level Meter

Description
Typical Application: Liquid(conducting, Stirring), Dust, Solid Process Pressureterface: -0.1~4.0MPa
Signal Output: 4... 20mA/HART/RS485/Modbus Temperature Accuracy: -40~+130℃,-50~+500℃
Product Models: NYSP-M23 Antenna Type: Flexible Cable, Hard Rod,Insulated Hard Rod At Both Ends
Antenna Material: PTFE, 304, 316 Measuring Range: 0~20m

NYSP-M23 RF Resistance Capacitance Reactance Measured Separately Level Meter​





NYSP-M23 RF Admittance Level Meter Working Principle



Radio frequency admittance level meter is a kind of continuous liquid level measurement product based on the principle of radio frequency admittance. The product has the advantages of high stability, high sensitivity and wide application range. Compared with the traditional capacitive level gauge, Modular design makes instrument setting simple and convenient. After setting, it can be used normally, and maintenance free for life. Users can intuitively understand the operation of the device and solve problems in time. It is also safe and reliable in complex industrial environments.
RF conductivity surgeon, unique liquid level also. Although it is probably similar to capacitance measurement, RF conduction plus drives the chopping circuit of the electronic unit circuit, and allows the resistance resistor resistance. The laws of physics, the resistance of the suspension, the capacitance resistance of all suspensions, so the suspension can oscillate the phase shift of the circuit, and from the total loss.
The probe of the RF conductivity meter is installed in the storage tank and the RF signal caused by the potential change is obtained through the probe. The probe drive cover prevents RF current from loop through the suspended material, thus ensuring the accuracy of the instrument measurement.



NYSP-M23 RF Admittance Level Meter Technical Parameters


Typical Application

Liquid(conducting, stirring),dust,  solid
Product Models

NYSP-M23

Antenna Type Flexible cable, hard rod,Insulated hard rod at both ends
Antenna Material PTFE, 304, 316
Measuring Range 0~20m (hundreds of meters can be measured for deep wells,  customized)
Measurement Accuracy 0.05%~0.1%F. S
Power Supply 24VDC
Signal Output 4...20mA/HART/RS485/Modbus...
Process Temperature -40~+130℃,-50~+500℃
Process Pressure -0.1~4.0MPa

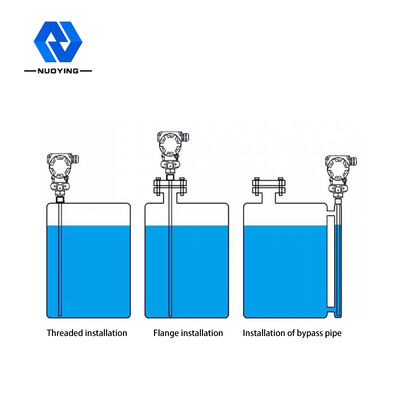

Process Connection Thread, flange (optional)
Electrical Interface M20 × 1.5, ½ "NPT
Protection Grade IP65, IP67, IP68 (optional)

Explosion Proof Grade

Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details)



Note: The products can be customized and designed according to the specific requirements of users!



NYSP-M23 RF Admittance Level Meter Design Features



The unique design of anti suspension material driving shielding circuit can improve the performance of anti suspension materials.
Power range. 13~35V DC
Adaptive probe process temperature- 100 ℃ ~ 800 ℃
No blindness can be used at a level of 12 cm to a few centimeters
Large measuring ranges of several hundred to several hundred meters
The interface of sticky objects, the general trend of the device
It is resistant to surface, rough millet, steam, crystallization, wax deposition
Non-protective, non-moving, non-wearing parts, irregular cleaning, protection and debugging
