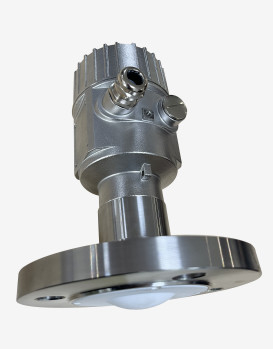

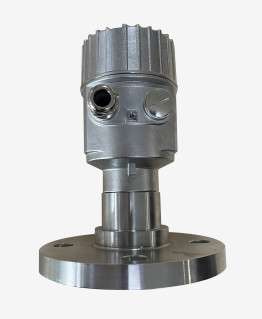

High-Frequency Level Transmitters Flat Panel Radar For Mist Foam Strong Corrosion

High-Frequency Level Transmitters Flat Panel Radar For Mist Foam Strong Corrosion

Brand Name: NUOYINGJIAYE
Model Number: NYRD-PB-E
MOQ: 1pcs
Price: $400 to $900
Payment Terms: T/T
Supply Ability: 1000 pcs/per month
Detail Information
Place of Origin:
China
Certification:
CE,ATEX,SIL
Accuracy:
0.05%~0.1%F.S
Signal Output:
4...20mA/HART/RS485/Modbus...
Display:
LCD
Material:
Stainless Steel
Measuring Range:
0-40m
Power Supply:
24V DC(Two-wire,Four-wire), 220V AC
Pressure Range:
0.1-2.0MPa
Process Connection:
Flange, Thread, Etc.
Response Time:
0.2s
Signal Frequency:
26GHz
Temperature Range:
-40~+130℃, -40~+260℃
Packaging Details:
Carton, 40cm x 30cm x 30cm
Supply Ability:
1000 pcs/per month
Product Description

26G NYRD-PB Radar Working Principle



The radar horizontal antenna emits narrow microwave pulses, which are transmitted downward through the antenna. When the pulse wave touches the surface of the medium under test, it is reflected back and received again by the antenna system. This signal is transmitted to the electronic circuit section and automatically converted into a horizontal signal (due to the extremely fast propagation speed of the pulse, the time required for the electromagnetic wave to reach the target and return to the receiver after reflection is almost instantaneous).

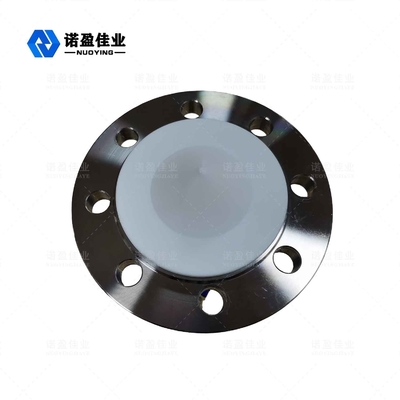

High-Frequency Level Transmitters Flat Panel Radar For Mist Foam Strong Corrosion 0


Radar Level Meter Design Features



◎ The antenna is small in size, easy to install; non-contact radar, no wear and no pollution.

◎ Unaffected by corrosion, foam, water vapor, temperature and pressure changes.

◎ The beam angle is small and the energy is concentrated, which enhances the echo ability and helps to avoid interference.

◎ The measurement blind area is smaller, and it can also achieve good results for small tank measurement.

◎ High signal-to-noise ratio for better performance even under fluctuating conditions.
