| Brand Name: | NUOYING |
| Model Number: | NYRD808 |
| MOQ: | 1 pc |
| Price: | $228~$680/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
26GHz High-frequency Radar Level Transmitter for Liquid & Solid Measurement - 70m Range
26GHz Radar Level Transmitter Product Description
The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 70 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
26GHz Radar Level Transmitter Working Principle
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal.
26GHz Radar Level Transmitter Application Fields
1. Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
2. Chemical: Raw material silos, ammonia tank, asphalt storage tank, etc.
3. Metallurgy: Raw material silos, auxiliary material silos, etc.
4. Foodstuffs: Raw sugar storage tank, etc.
26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD808 |
| Typical application | Solids, particles and strong dust |
| Antenna material | PTFE, 304, 316, PP, PFA |
| Antenna type | Horn Antenna |
| Measuring range | 70m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire), 220VAC |
| Medium temperature | -40~+120℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

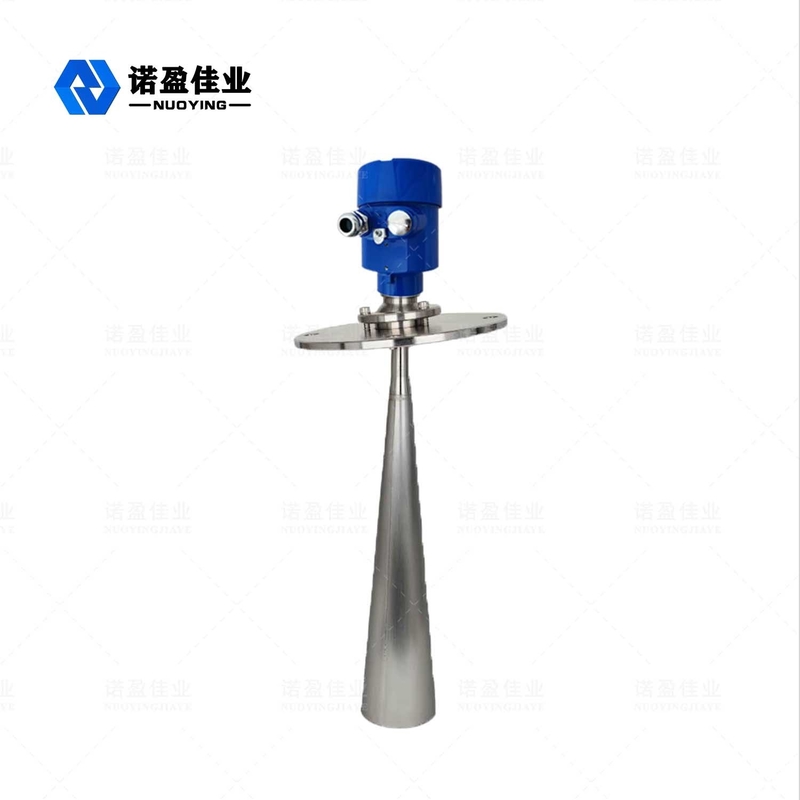

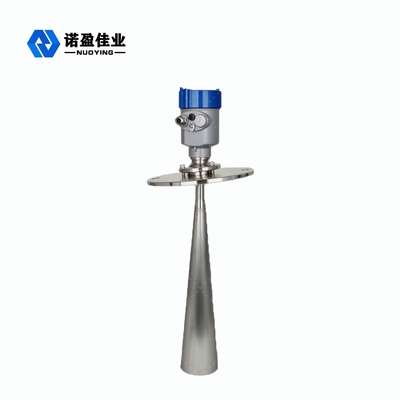

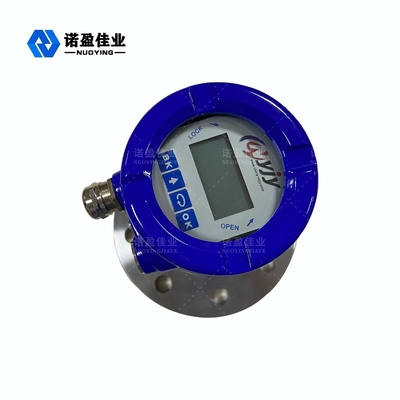

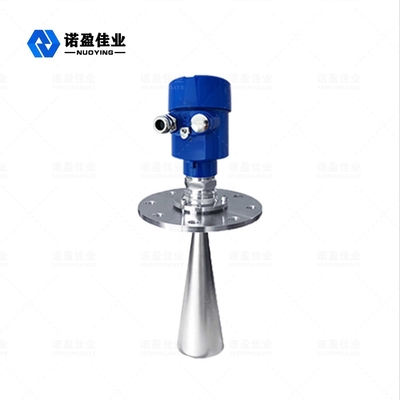

26GHz Radar Level Transmitter Related Pictures
