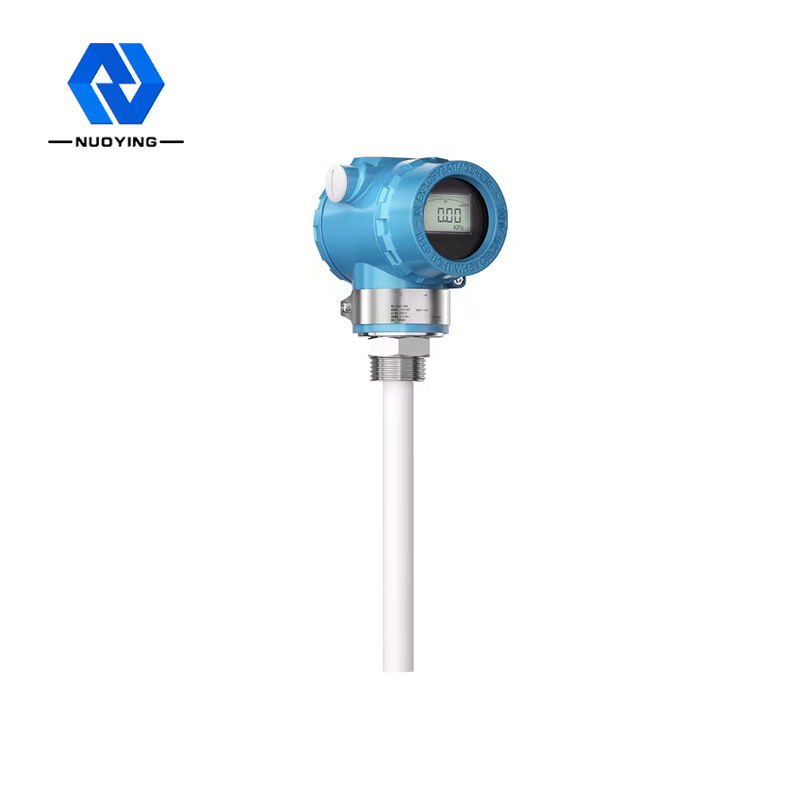

Capacitive Level Gauge, High Temperature Corrosion Resistant Level Transmitter

Name: Capacitive Level Gauge, High Temperature Corrosion Resistant Level Transmitter
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYSP-DR
Price: 330.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYSP-DR
MOQ:	1 pc
Price:	$130~$530/pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Certification:

CE, ATEX, SIL

Range:

3m, 20m

Power Supply:

24VDC

Output Signal:

4...20mA/HART/RS485/Modbus...

Process Temperature:

-40~+260℃

Protection Class:

IP67 Blast

Process Pressure:

-0.1~4.0MPa

Explosion-proof Grade:

Exia II CT6 (optional)

Process Connection:

3/4" BSPT Thread (standard) Flange Mount (optional)

Probe Type:

Insulated Hard Rod PTFE (optional)

Typical Application:

Corrosive, Conductive And Viscous Liquids

Packaging Details:

Carton, 40cm×30cm×30cm

Supply Ability:

1000 pcs per month

Product Description

Nuoying NYSP-DR Radio Frequency Capacitance Level Meter Overview

Product Parameters

Capacitive Level Gauge, High Temperature Corrosion Resistant Level Transmitter 0

Typical application	Liquid, corrosive liquid
Probe material	304, PTFE, 316 (optional)
Power supply	24VDC
Operation temperature	-40 ~ +130℃, -184 ~ +260℃
Antenna form	Cable type, pole type
Working pressure	-0.1~1.6MPa
Process connection	Thread, flange (optional)

Products Description

NYSP-DR RF Capacitor Level Meter Working Principle

The RF capacitance level meter works on the basis of radio frequency (RF) capacitance technology. A radio frequency is applied to the probe and the effect caused by the surrounding environment is determined by continuous analysis. Since all materials have a dielectric constant and their conductivity is different from that of air, the total impedance reacted to by small capacitance shifts changes when the probe is in contact with the material. Because the energized probe and the vessel wall form the two pole plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, and when air (dielectric constant of 1.0) is replaced by any other material (dielectric constant >10), the change in capacitance value causes a change in impedance. This effect is measured by the circuit and then compared with the reference reference frame established by the sensitivity setting (circuit).

NYSP-DR RF Capacitor Level Meter Design Feature

1. Modular converter and sensor integration, no moving parts, high reliability, strong anti-interference capability.
2. Wider applicability, a variety of probe forms, a variety of process connection forms, a variety of production materials, can be customized design.
3. Extremely easy to install, debug and maintain.
