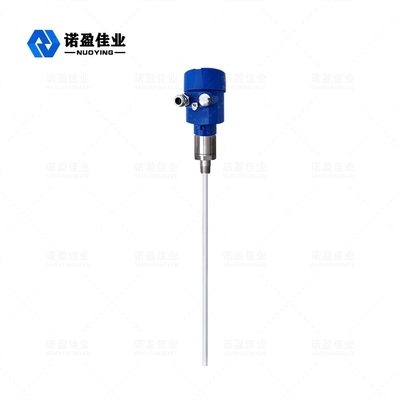

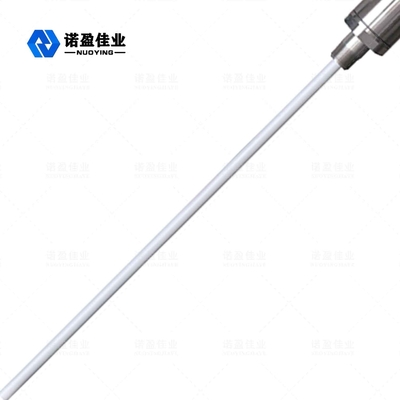

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter for Conductive and Viscous Liquids with Insulated Hard Rod PTFE

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter for Conductive and Viscous Liquids with Insulated Hard Rod PTFE

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter Product Description

RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter Working Principle

RF conductivity measurement technology is a level measurement technology with unique advantages.Although the concept is similar to the general capacitance measurement technique, the RF conductivity technique incorporates a driver shield circuit and a chopper circuit in the electronic unit, so impedance and capacitance resistance can be measured separately.The impedance and reactance of any pendant are calculated by the laws of physics to be equal in magnitude, so the effect of the pendant can be measured and eliminated from the total output by phase shifting of the oscillator circuit.

The probe of the radio frequency conductivity liquid level meter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter Design Features

1. Unique Driving-Shield circuit design to improve the anti-hanging ability

2. Power supply working range:13~35V DC

3. Probe process temperature: -100 ℃~800 ℃

4. No dead zone measurement (can be applied to even a few centimeters of material level measurement occasions )

5. Maximum measurement range up to even hundreds of meters

6. A great advantage of viscous material interface measurement

7. Stable and reliable output , resistant to the influence of fly ash, blanking, water vapor, crystallization and waxing

8. Maintenance-free: no moving or easy-to-wear parts, no need for frequent cleaning, maintenance and debugging

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter Application Fields

1. Food: juice plants, milk plants, tomato paste storage tanks, brewery storage tanks, etc.
2. Pharmaceuticals: medium pharmaceutical storage tanks, separators, fermentation tanks, etc.
3. Water treatment: reservoirs, cesspools, water treatment tanks, settling ponds, deep wells, drinking water networks, etc.

4. Others: environmental protection, oil field, metallurgy, shipbuilding and other industries.

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter Technical Parameters

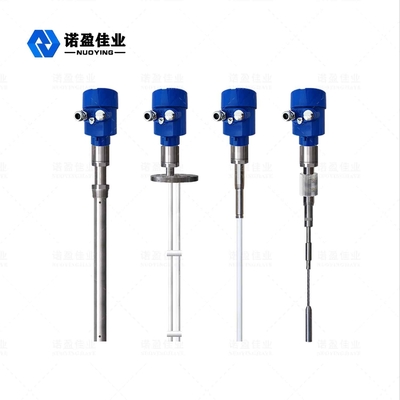

NYSP-Z16 Explosion-proof RF Admittance Level Transmitter Related Pictures
