High Quqality NYSP-Z16 4-20mA RF Admittance Level Transmitter for Conductive and Viscous Liquids Level Measurement

High Quqality NYSP-Z16 4-20mA RF Admittance Level Transmitter for Conductive and Viscous Liquids Level Measurement

NYSP-Z16 RF Admittance Level Transmitter Product Description

RF admittance level meter is a continuous level measurement product based on radio frequency admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with the traditional capacitive level meter, the modularized design can realize the instrument setting succinctly and conveniently. Once the setting is completed, it can be used normally and be maintenance-free for life. Enables users to intuitively understand the operation of the equipment and deal with problems in a timely manner, as safe and reliable in complex industrial fields.

NYSP-Z16 RF Admittance Level Transmitter Working Principle

RF conductivity measurement technology is a level measurement technology with unique advantages.Although the concept is similar to the general capacitance measurement technique, the RF conductivity technique incorporates a driver shield circuit and a chopper circuit in the electronic unit, so impedance and capacitance resistance can be measured separately.The impedance and reactance of any pendant are calculated by the laws of physics to be equal in magnitude, so the effect of the pendant can be measured and eliminated from the total output by phase shifting of the oscillator circuit.

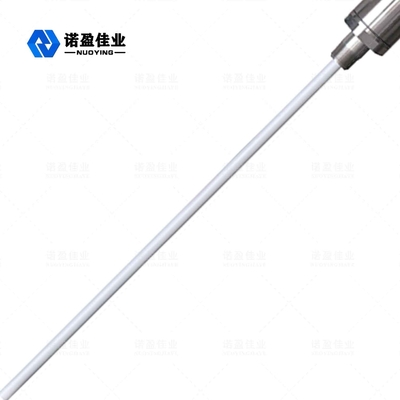

The probe of the radio frequency conductivity liquid level meter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.

NYSP-Z16 RF Admittance Level Transmitter Technical Parameters

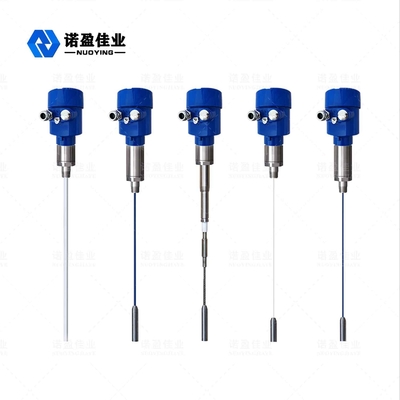

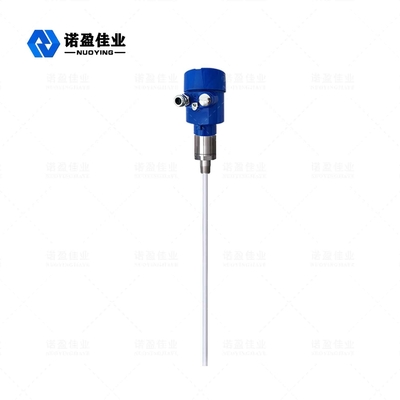

NYSP-Z16 RF Admittance Level Transmitter Related Pictures
